Danfoss H00904-250R

HOSE-WTH, H0090, -4, 250FT, RL, R6

MPN
H00904-250R
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss H00904-250R?

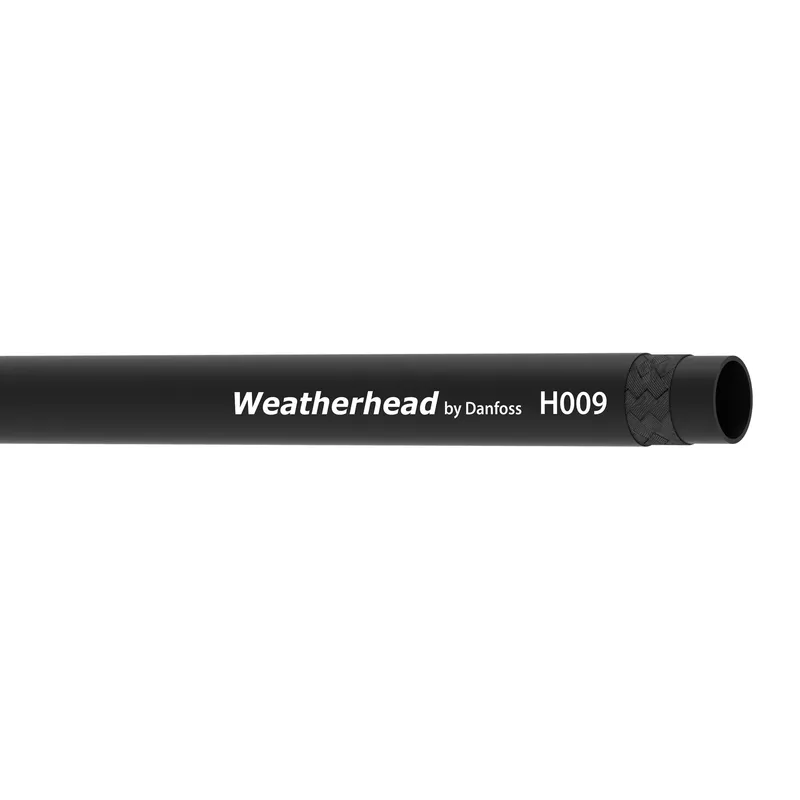

Danfoss HOSE-WTH, H0090, -4, 250FT, RL, R6, manufacturer part number H00904-250R. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

EAN/UPC725975009796
Abrasion resistanceStandard
ApplicationAir
Bend radius min (inch)2.500
Bend radius min (mm)63.300
BrandWeatherhead by Danfoss
Burst pressure (bar)112
Burst pressure (psi)1600
ColorBlack
CompliancesSAE J1942
ConductivityConductive
Construction1 Ply braid
Cover materialChloroprene (CR)
Inside diameter (inch)0.25
Inside diameter (mm)6.40
Lay line styleInk jet
Length (in)3000.00000
Length (mm)76200.00000
Outside diameter (inch)0.50
Outside diameter (mm)12.70
Package formReel
Product height in0.250
Product height mm6.400
Product width in0.250
Product width mm6.4
Qualified hose fittings009H
Reinforcement materialFabric
SeriesH009 Series
Size-4
Tube materialNitrile (NBR)
Working pressure max (bar)28
Working pressure max (psi)400
Working temperature max (C)100
Working temperature max (F)212.0
Working temperature min (C)-40
Working temperature min (F)-40.0

H00904-250R: frequently asked questions

When can H00904-250R be shipped?

H00904-250R is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up H00904-250R in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for H00904-250R and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for H00904-250R, subject to availability and destination.
