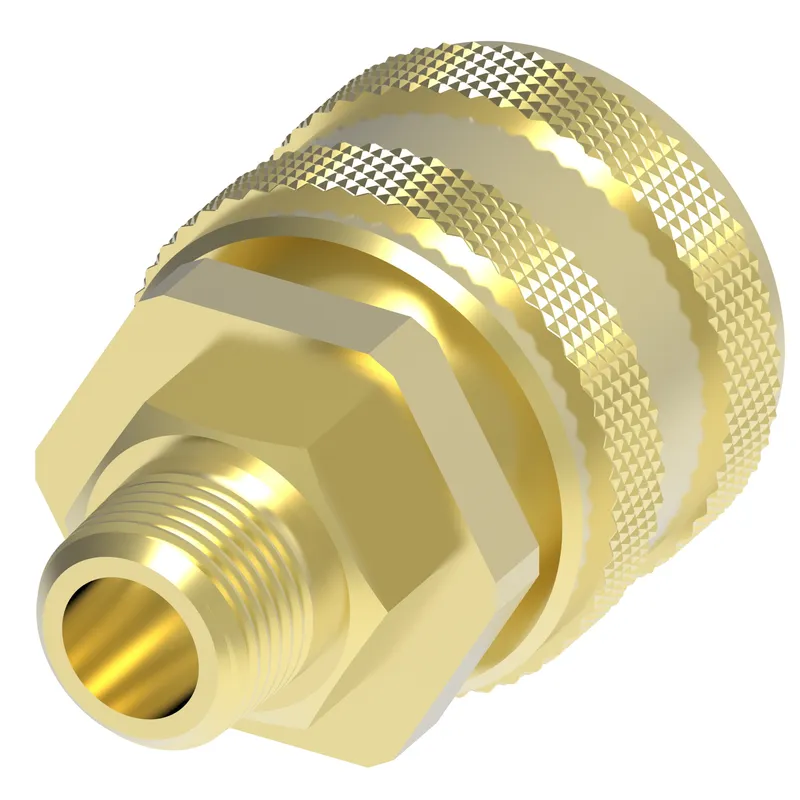

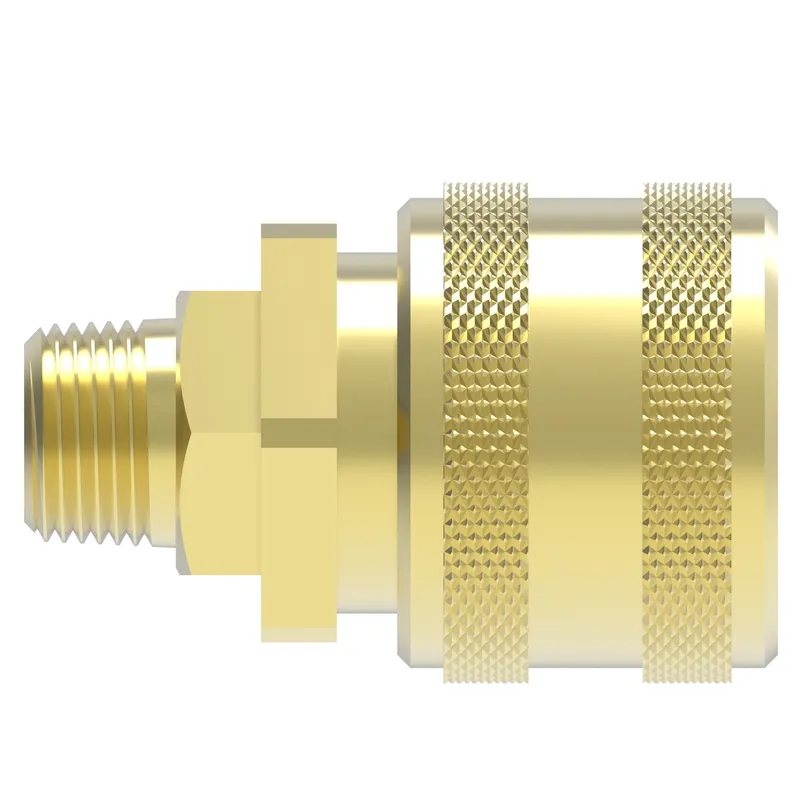

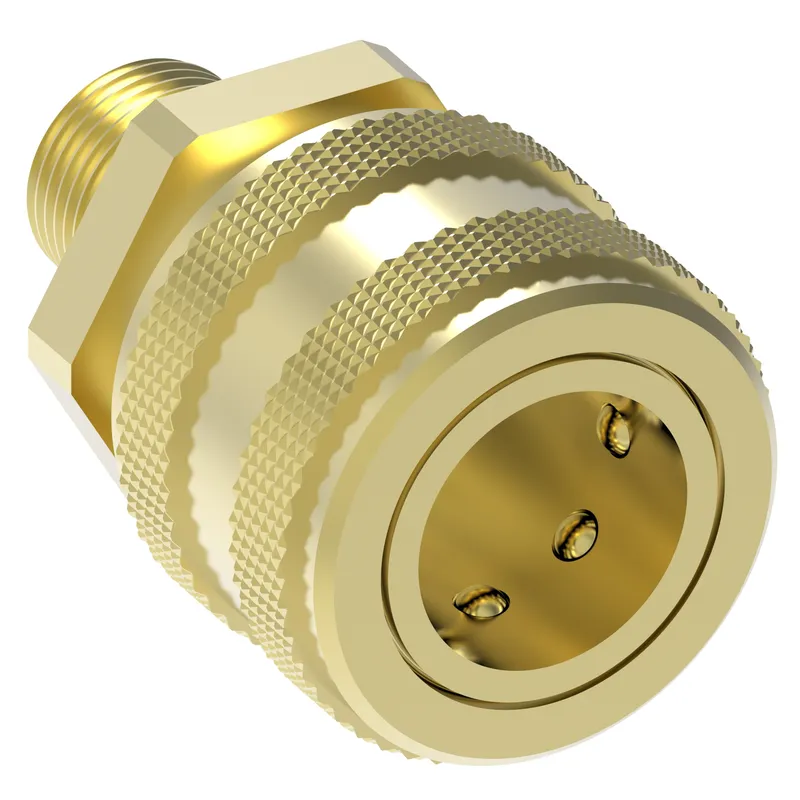

Danfoss GR603143

Cplng, 600 SERIESFEMALE, BRASS

MPN: GR603143
Category: Danfoss Hansen® quick disconnect couplings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss GR603143?

Danfoss Cplng, 600 SERIESFEMALE, BRASS, manufacturer part number GR603143. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146164223
Angle shape	Straight
Body size	1/4
Brand	Danfoss
Burst pressure min bar	414
Burst pressure min psi	6000
Connection style	Manual connect
End size 2	-4
End Type 1	Female Push to Connect
End Type 2	Male pipe (NPTF)
Flow rate GPM	157.00
Flow rate LPM	594.31
Fluid compatibility	Compressed air and other gases, Oxyacetylene service
Hex size 1 IN	0.690
Hex size 1 MM	17.526
Item type	Female half
Latch type	Push/pull
Product length in	2.030
Product material	Brass
Safety locking mechanism	Sleeve lock
Seal material	Fluorocarbon (FKM)
Sub brand	Hansen
Valve type	2 way
Working pressure max psi	1500
Working pressure max BAR	103.00
Working temperature max C	121
Working temperature max F	250
Working temperature min C	-40
Working temperature min F	-40
