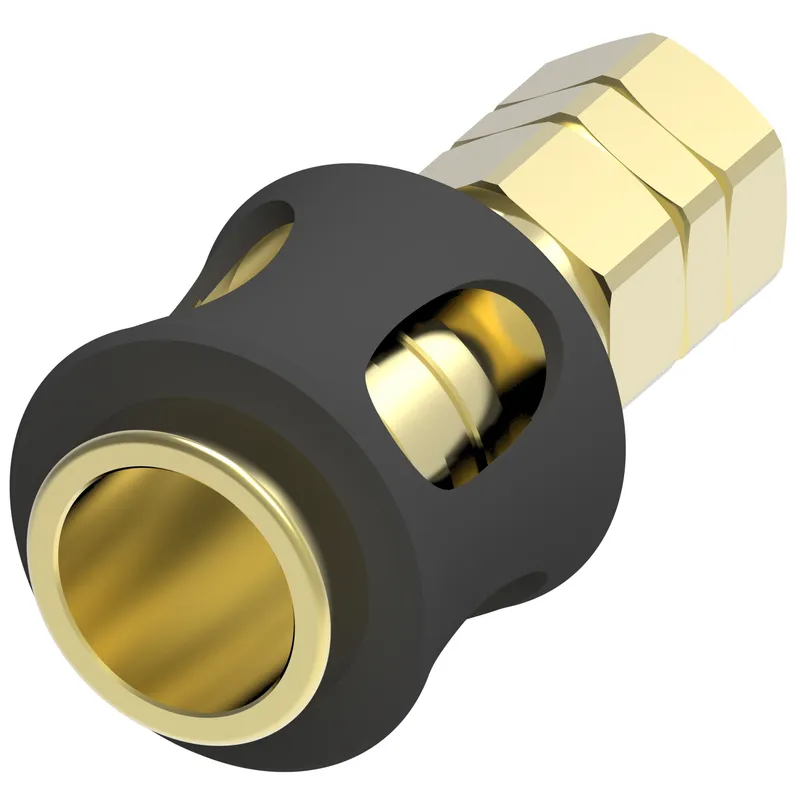

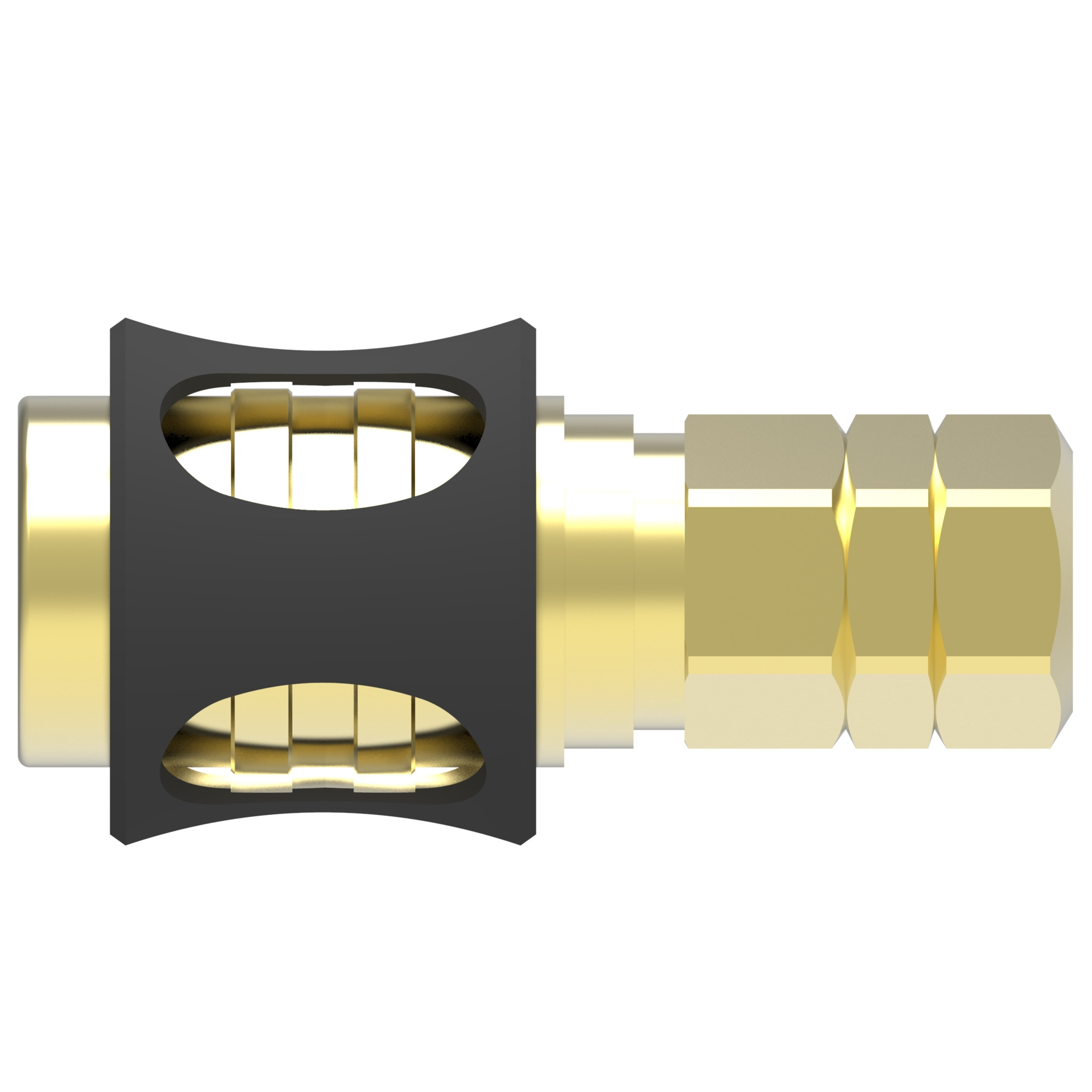

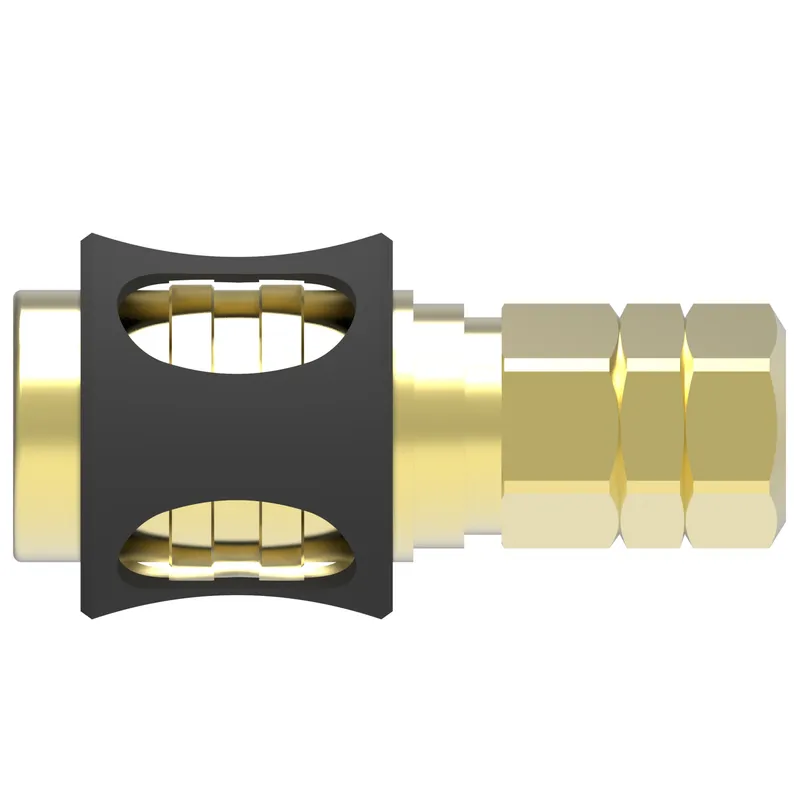

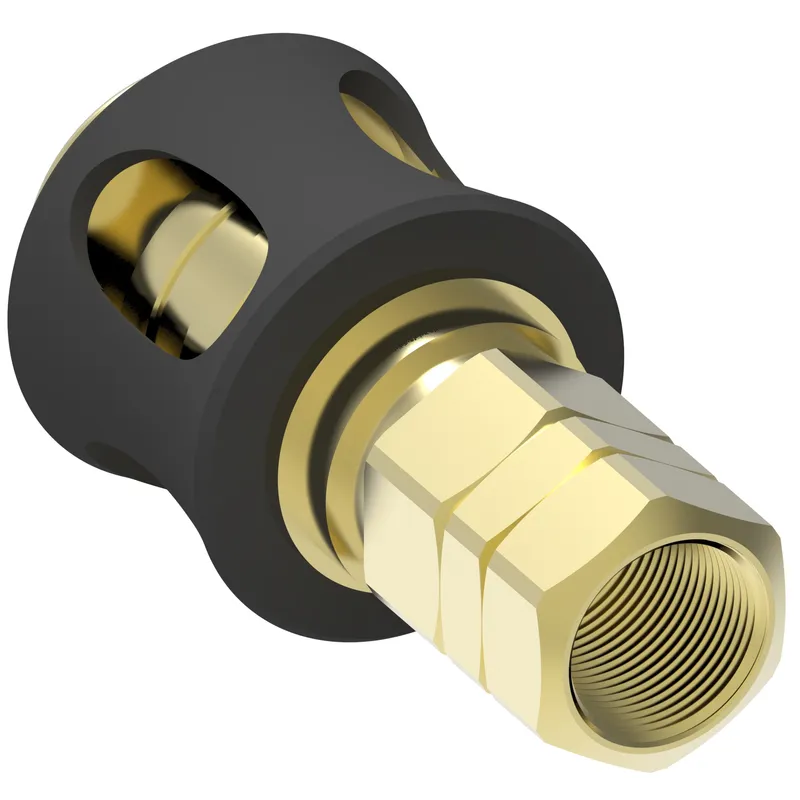

Danfoss GLSL72683

Cplng G700 SERIES SOCKET NPTSLEEVE LOCK

MPN: GLSL72683
Category: Danfoss Hansen® quick disconnect couplings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss GLSL72683?

Danfoss Cplng G700 SERIES SOCKET NPTSLEEVE LOCK, manufacturer part number GLSL72683. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146204370
Angle shape	Straight
Body size	1/4
Brand	Danfoss
Connection style	Manual connect
End size 2	-6
End Type 1	Female Push to Connect
End Type 2	Female Pipe (NPT)
Finish plating	Nickel
Flow rate GPM	420.00
Flow rate LPM	1589.87
Item type	Female half
Latch type	Push/pull
Product material	Brass
Seal material	Nitrile (NBR)
Sub brand	Gromelle
Valve type	2 way
Working pressure max psi	290
Working pressure max BAR	20.00
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-20
Working temperature min F	-4
