Danfoss GH793-8RL

HOSE-AER, GH793, -8, RL, R2/2SN

MPN: GH793-8RL
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

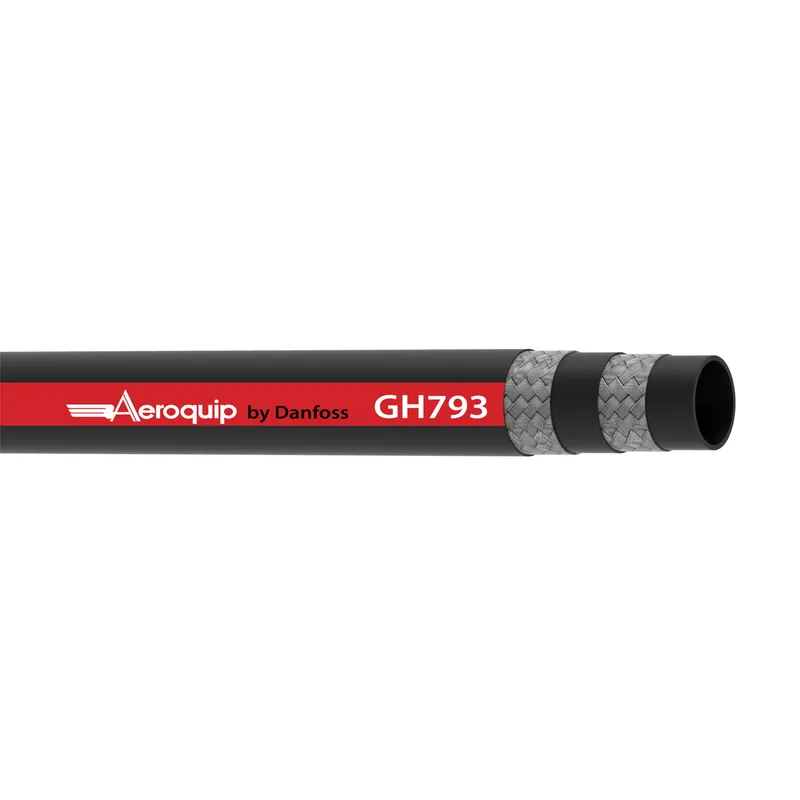

What is the Danfoss GH793-8RL?

Danfoss HOSE-AER, GH793, -8, RL, R2/2SN, manufacturer part number GH793-8RL. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Abrasion resistance	Standard
Application	General industrial use
Bend radius min (inch)	7.090
Bend radius min (mm)	180.000
Brand	Aeroquip by Danfoss
Burst pressure (bar)	1380
Burst pressure (psi)	20000
Certifications	BV
Color	Black
Compliances	EN853 2SN
Conditional temp range	-40F to 257F intermittently
Conductivity	Conductive
Construction	2 Wire Braid
Cover material	Nitrile (NBR)
Impulse cycle (cycles)	200000
Inside diameter (inch)	0.50
Inside diameter (mm)	12.70
Lay line style	Ink transfer
Outside diameter (inch)	0.87
Outside diameter (mm)	22.20
Package form	Reel
Product height in	0.500
Product height mm	12.700
Product width in	0.500
Product width mm	12.7
Qualified hose fittings	TTC/Z Series
Reinforcement material	Brass plated steel wire
Series	GH793 Series
Size	-8
Tube material	Nitrile (NBR)
Tube wall thickness (inch)	0.50
Tube wall thickness (mm)	12.70
Vacuum rating (inHg)	28
Vacuum rating (mmHg)	711.20
Working pressure max (bar)	345
Working pressure max (psi)	5000
Working temperature max (C)	126
Working temperature max (F)	260.0
Working temperature min (C)	-40
Working temperature min (F)	-40.0

GH793-8RL: frequently asked questions

When can GH793-8RL be shipped?

GH793-8RL is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up GH793-8RL in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for GH793-8RL and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for GH793-8RL, subject to availability and destination.
