Danfoss GG308-NP04-10

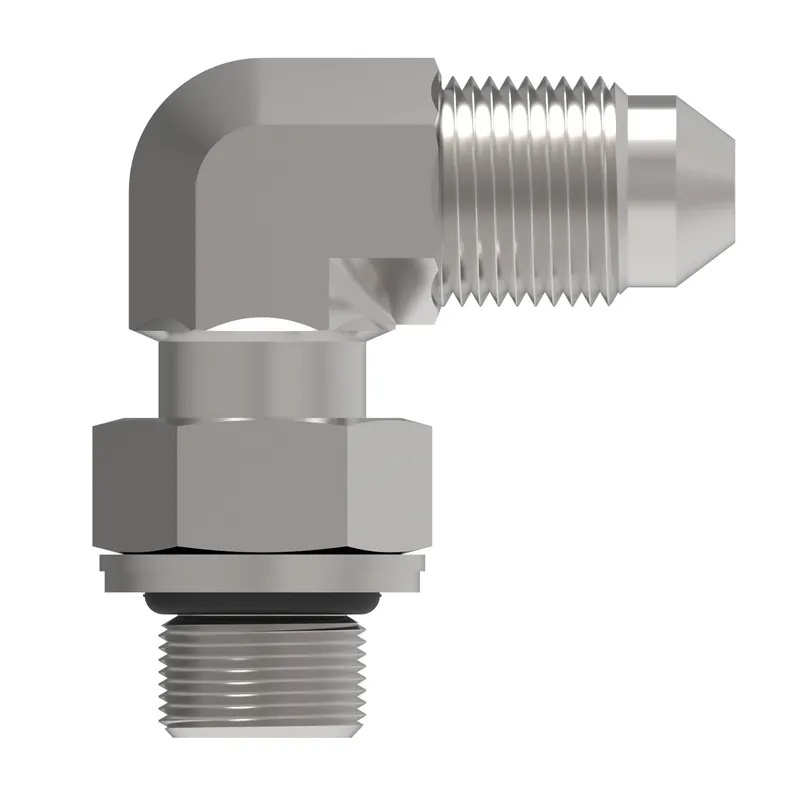

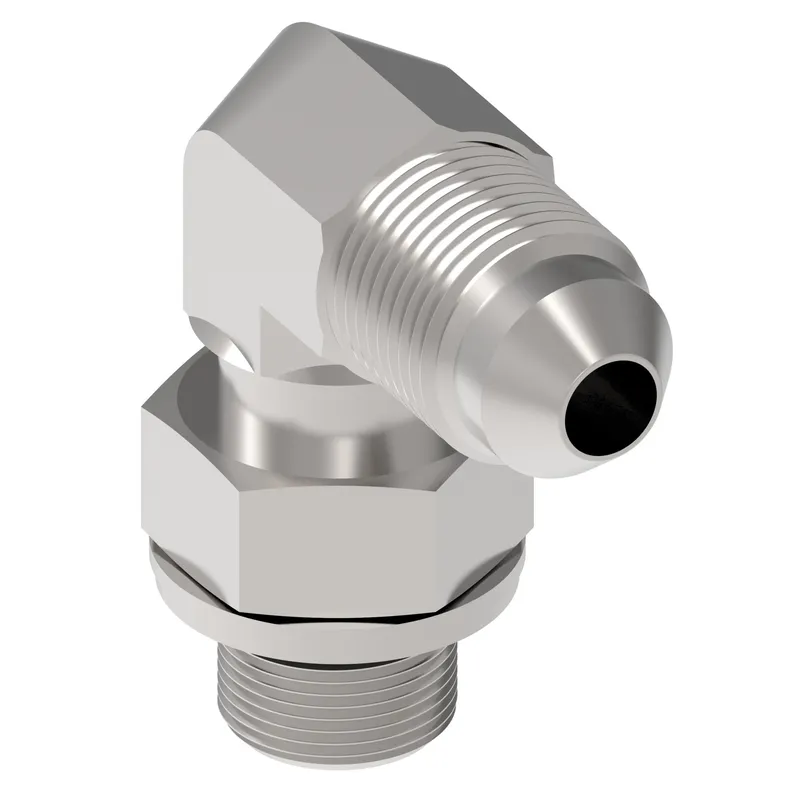

Adapter, SAE 37 90 elbow

MPN: GG308-NP04-10
Category: Adapters and swivel joints

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss GG308-NP04-10?

Danfoss Adapter, SAE 37 90 elbow, manufacturer part number GG308-NP04-10. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146190710
Angle shape	90 Degree
Brand	Danfoss
Drop dimension IN	1.020
Drop dimension MM	25.90
End Type 1	Male 37 degree
Finish plating	Dura-Kote
Hex size 1 IN	0.430
Hex size 1 MM	10.900
Hex size 2 IN	0.550
Hex size 2 MM	14.000
Item type	Adapter-elbow
Product material	Carbon steel
Thread sealant	No
Thread size 1	7/16-20 UNF
Thread size 2	M10x1
Tube outside diameter 1 IN	0.170
Tube outside diameter 1 MM	4.3
Tube outside diameter 2 IN	0.160
Tube outside diameter 2 MM	4.1
Working temp max C	204
Working temp max F	400
Working temp min C	-54
Working temp min F	-65

GG308-NP04-10: frequently asked questions

When can GG308-NP04-10 be shipped?

GG308-NP04-10 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up GG308-NP04-10 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for GG308-NP04-10 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for GG308-NP04-10, subject to availability and destination.
