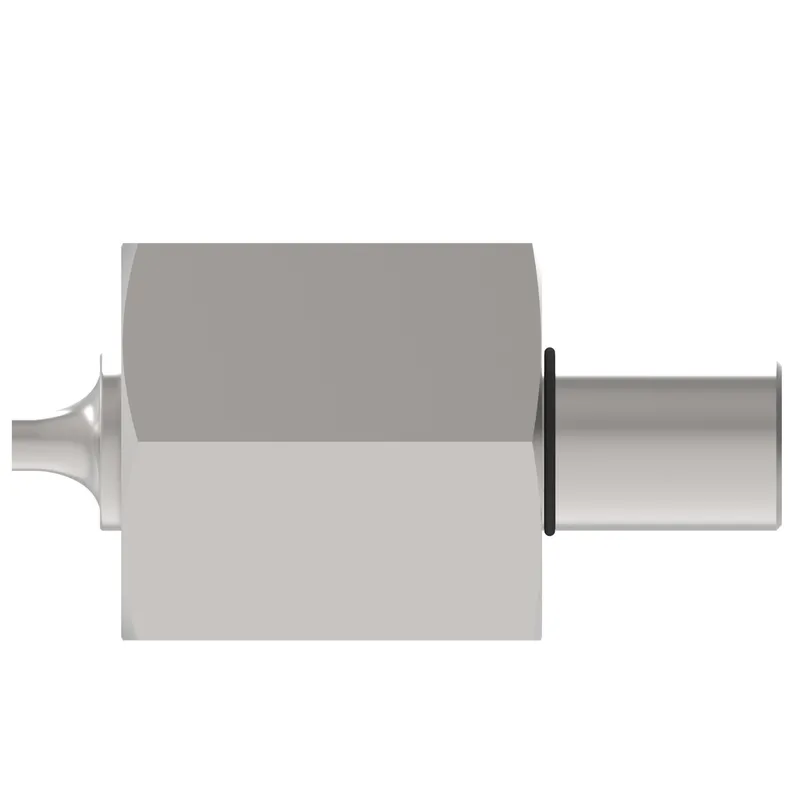

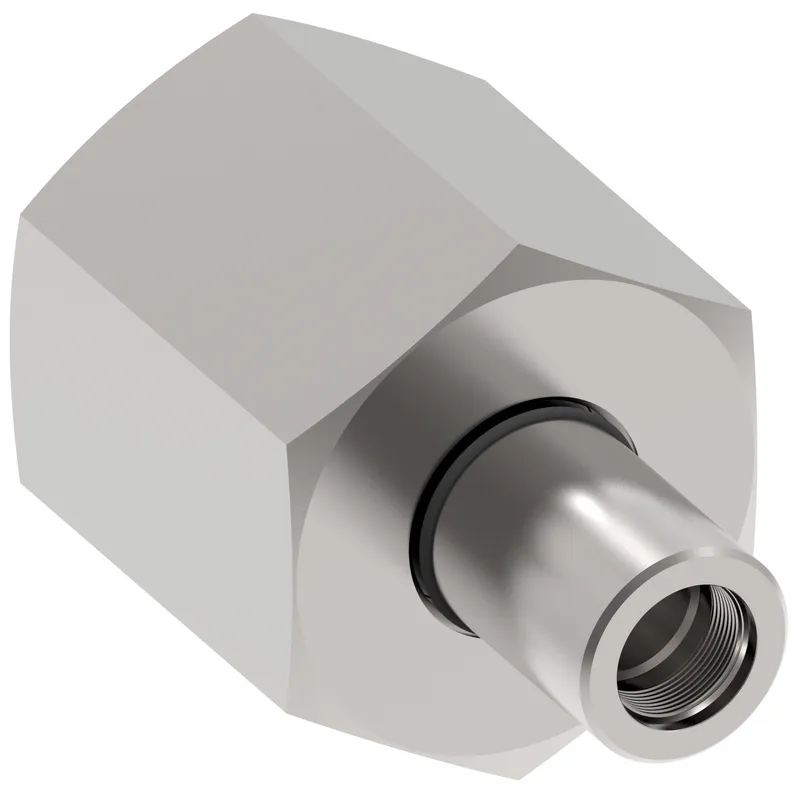

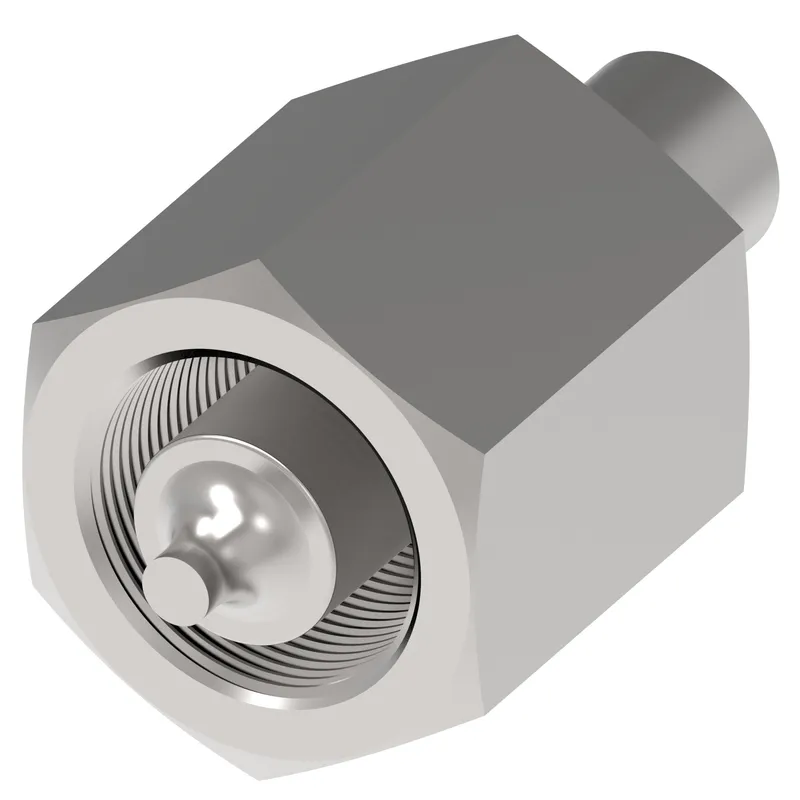

Danfoss GA90092-16

COUPLING,GA90090,M,1",CS,M38,FKM

MPN: GA90092-16
Category: Danfoss Hansen® quick disconnect couplings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss GA90092-16?

Danfoss COUPLING,GA90090,M,1",CS,M38,FKM, manufacturer part number GA90092-16. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Angle shape	Straight
Body size	1"
Brand	Danfoss
End size 1	M38
End Type 1	Female ISO 9974-1 port
Finish plating	Zinc trivalent
Hex size 1 IN	1.900
Item type	Male half
Latch type	Screw to connect
Product material	Carbon steel
Safety locking mechanism	None
Seal material	Nitrile (NBR)
Sub brand	Hansen
Thread size 1	M38x1.5
Valve type	2 way
Working pressure max psi	6000
Working temperature max F	212
Working temperature min F	-4

GA90092-16: frequently asked questions

When can GA90092-16 be shipped?

GA90092-16 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up GA90092-16 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for GA90092-16 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for GA90092-16, subject to availability and destination.
