Danfoss FTP352BST

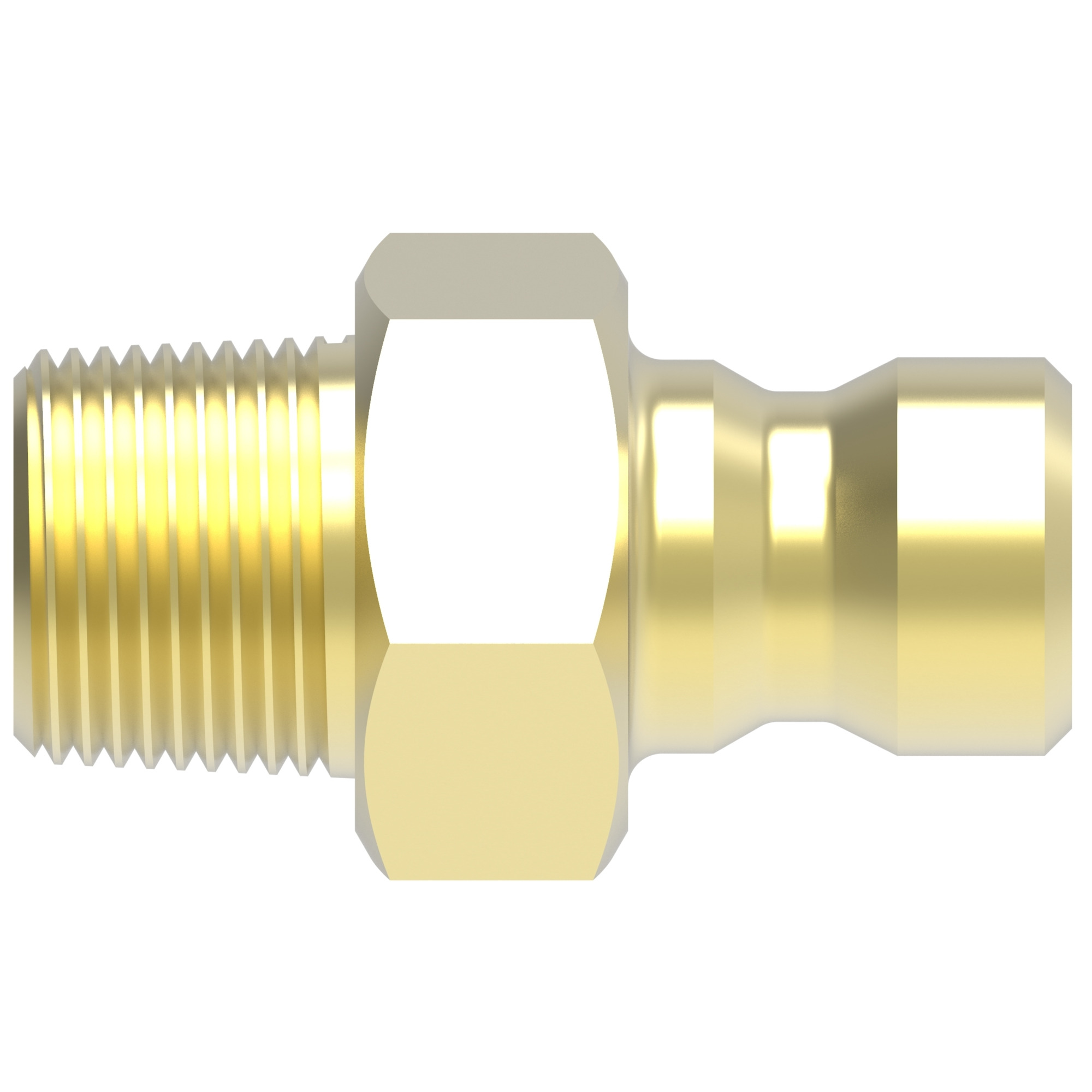

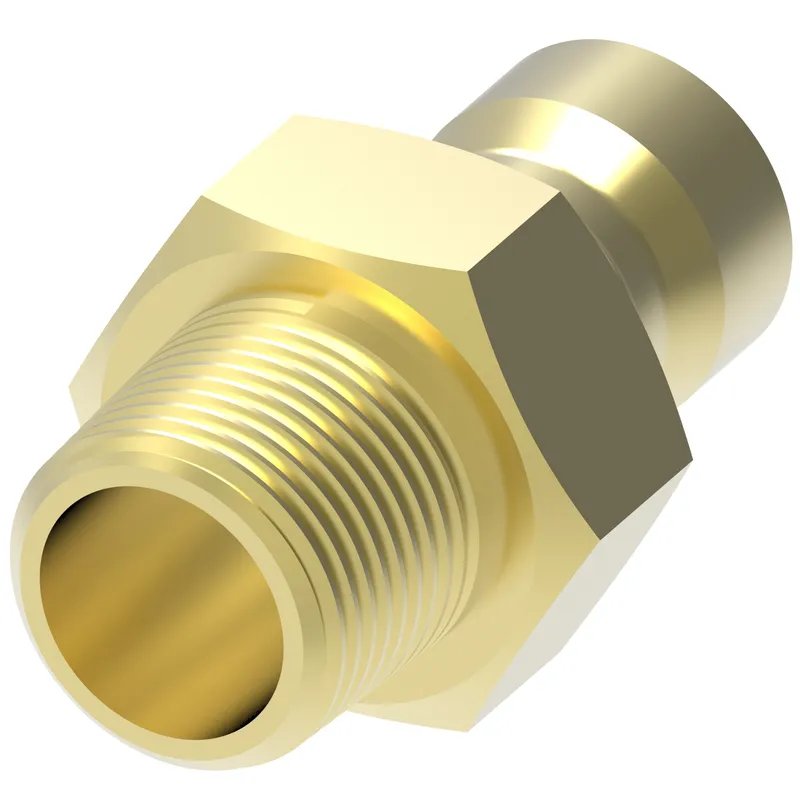

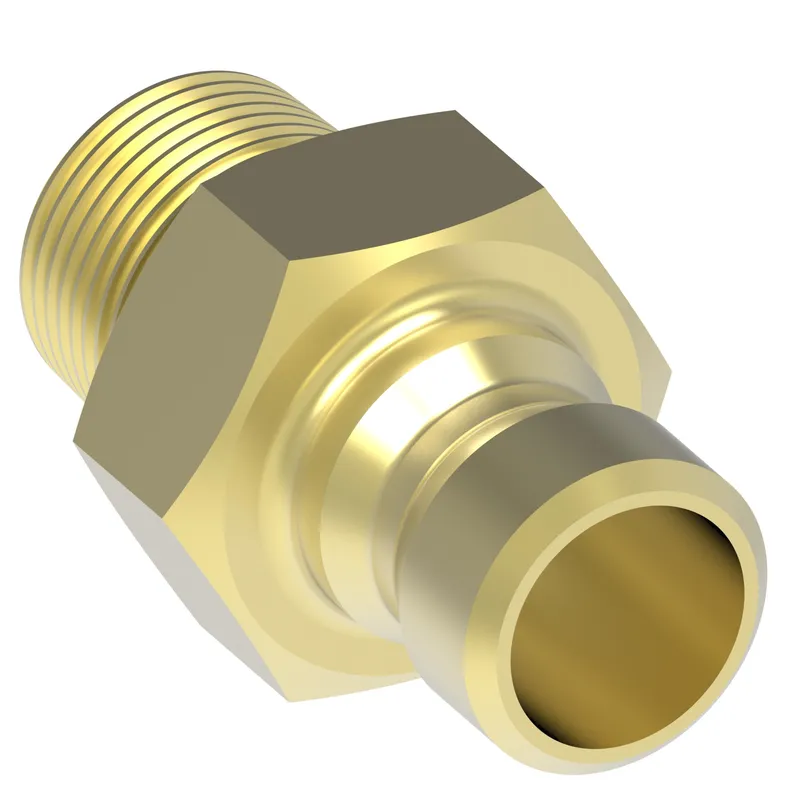

Cplng, FLO-TEMP SERIES MALE, BRASS

MPN: FTP352BST
Category: Danfoss Hansen® quick disconnect couplings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss FTP352BST?

Danfoss Cplng, FLO-TEMP SERIES MALE, BRASS, manufacturer part number FTP352BST. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146204257
Angle shape	Straight
Body size	3/8
Brand	Danfoss
Burst pressure min bar	55
Burst pressure min psi	800
Connection style	Manual connect
End size 2	-4
End Type 1	Male push to connect
End Type 2	Male pipe BSPT
Flow rate GPM	4.50
Flow rate LPM	17.03
Fluid compatibility	Gas, Oil, Water
Hex size 1 IN	0.560
Hex size 1 MM	14.224
Item type	Male half
Latch type	Push/pull
Product length in	1.400
Product material	Brass
Seal material	Nitrile (NBR)
Sub brand	Hansen
Thread size 2	R 1/4
Valve type	Straight thru
Working pressure max psi	200
Working pressure max BAR	14.00
Working temperature max C	121
Working temperature max F	250
Working temperature min C	-40
Working temperature min F	-40
