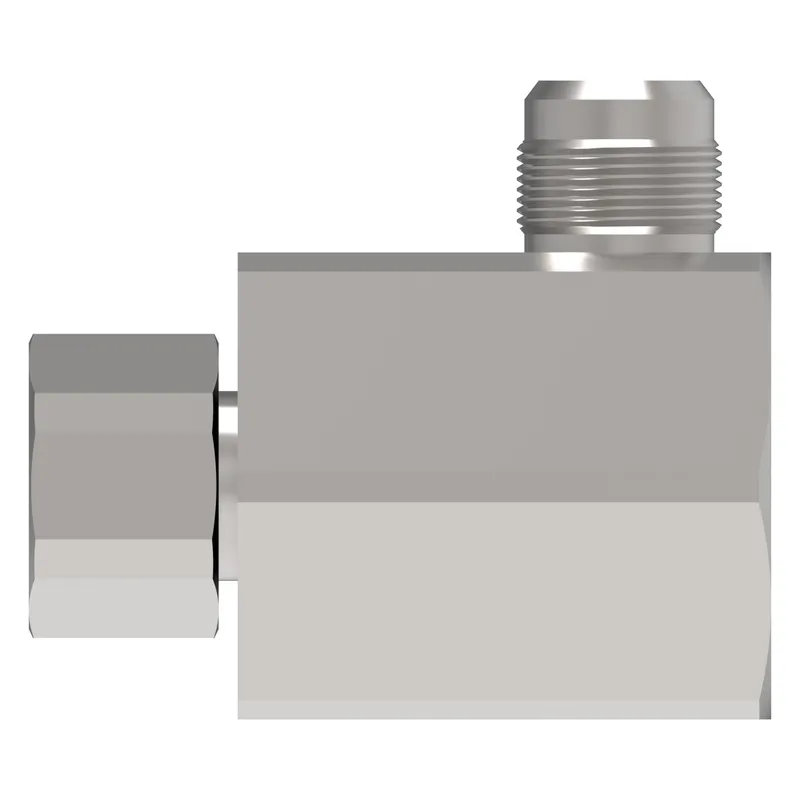

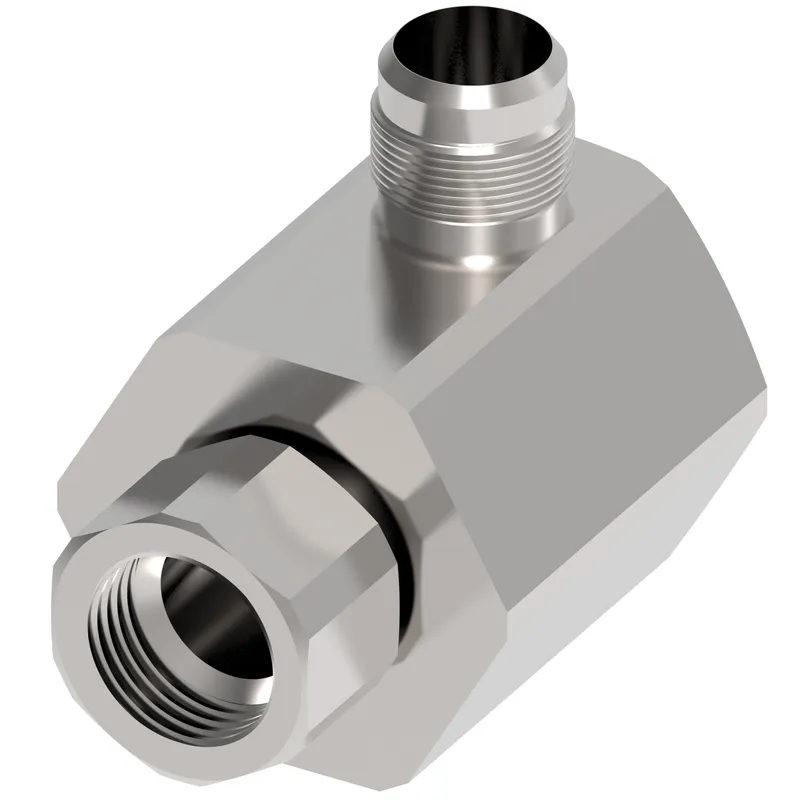

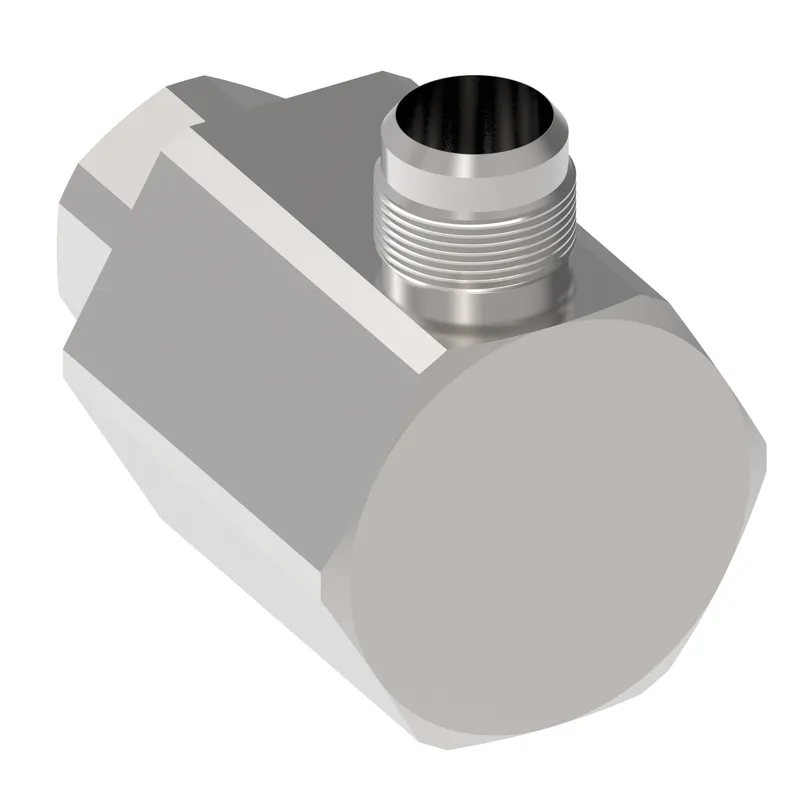

FS59 swivel 90 dg m jic x f jic

Name: Danfoss FS59011-1616-75 – FS59 swivel 90 dg m jic x f jic
Brand: Danfoss (Drives)
SKU: FS59011-1616-75

MPN: FS59011-1616-75 · Brand: Danfoss (Drives)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Adapters and swivel joints
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can FS59011-1616-75 be shipped?

FS59011-1616-75 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up FS59011-1616-75 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for FS59011-1616-75 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for FS59011-1616-75, subject to availability and destination.

Danfoss FS59 swivel 90 dg m jic x f jic, manufacturer part number FS59011-1616-75. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146167545
Angle shape	90 Degree
Brand	Danfoss
Drop dimension IN	2.000
End gender 1	Male
End gender 2	Female
End size 1	1 IN
End size 2	1 IN
End Type 1	SAE 37
End Type 2	SAE 37
Finish plating	Zinc
Fluid	Hydraulic Oils
Hex size 1 IN	2.500
Hex size 2 IN	1.500
Item type	Swivel Joint Complete
Product material	Steel
Swivel size	1 IN
Thread sealant	No
Thread size 1	1 5/16-12
Thread size 2	1 5/16-12
Working pressure psi	3000
Working temperature max F	250
Working temperature min F	-20
