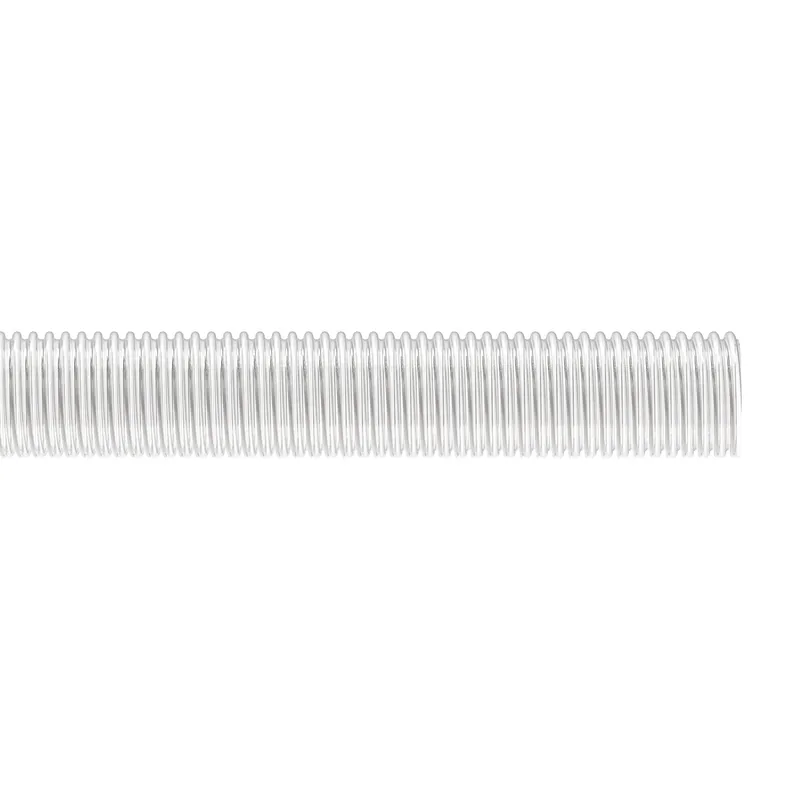

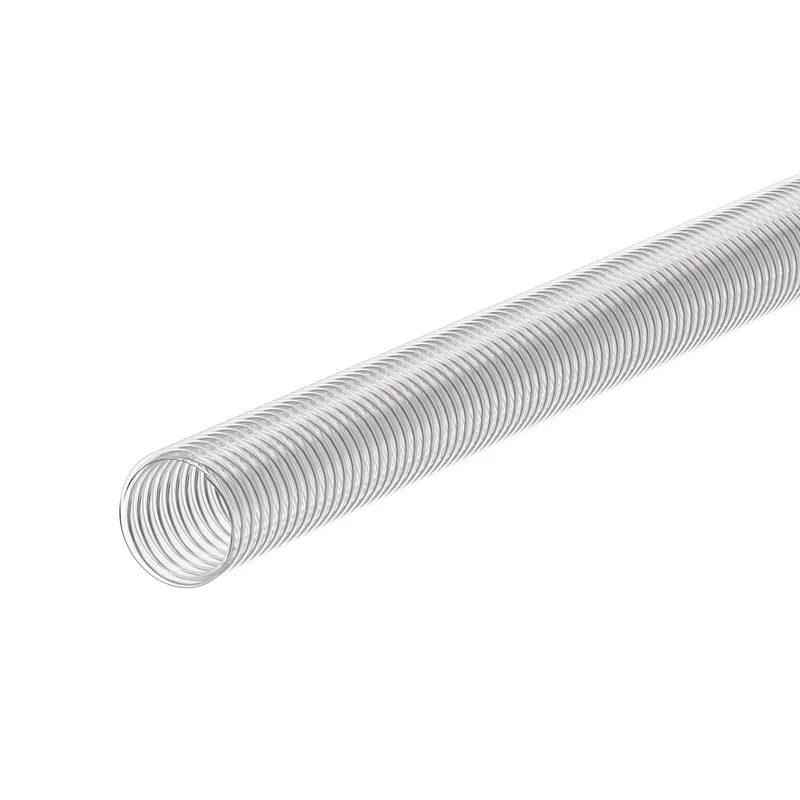

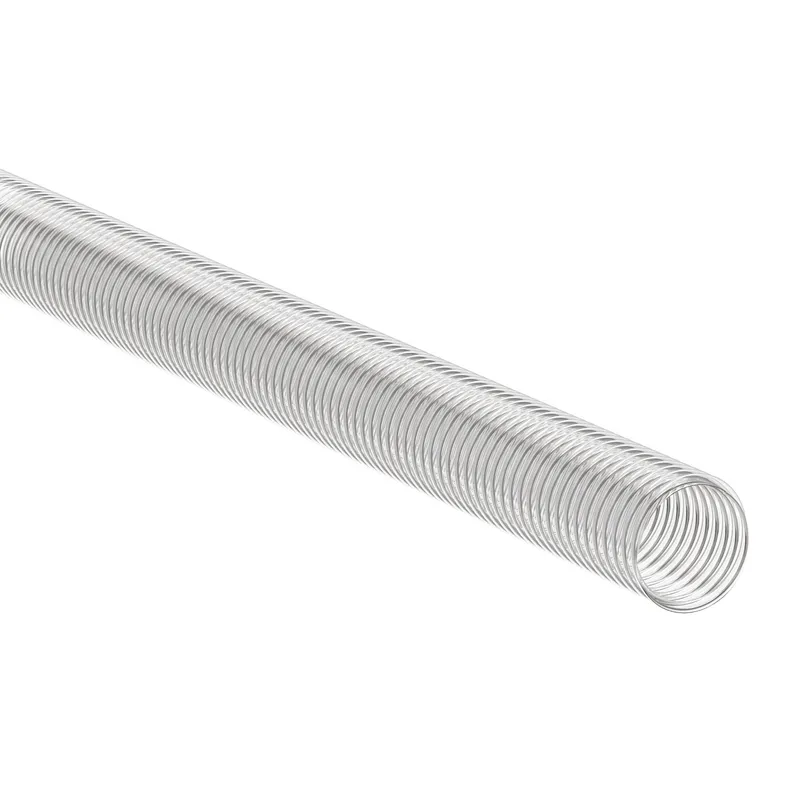

Conduit/Sleeve, Nylon
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Hose machines, tools, and accessories |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can FF90318-02 be shipped?
FF90318-02 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up FF90318-02 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for FF90318-02 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for FF90318-02, subject to availability and destination.
Danfoss Conduit/Sleeve, Nylon, manufacturer part number FF90318-02. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Application | Hydraulic systems, Lubricating oils, Petroleum based fluids, Water, Water-glycol systems |
| Bend radius min (inch) | 1.500 |
| Bend radius min (mm) | 38.100 |
| Brand | Aeroquip by Danfoss |
| Burst pressure (bar) | 421 |
| Burst pressure (psi) | 6100 |
| Color | Black |
| Conductivity | Conductive |
| Construction | 1 Ply braid |
| Inside diameter (inch) | 0.84 |
| Inside diameter (mm) | 21.34 |
| Lay line style | Ink jet |
| Outside diameter (inch) | 1.10 |
| Outside diameter (mm) | 27.94 |
| Reinforcement material | Nylon |
| Series | FF91307 Series |
| Size | -2 |
| Tube wall thickness (inch) | 0.19 |
| Tube wall thickness (mm) | 4.83 |
| Working pressure max (bar) | 210 |
| Working pressure max (psi) | 3050 |
| Working temperature max (C) | 149 |
| Working temperature max (F) | 300.0 |
| Working temperature min (C) | -40 |
| Working temperature min (F) | -40.0 |
