Danfoss FF4308-1212S

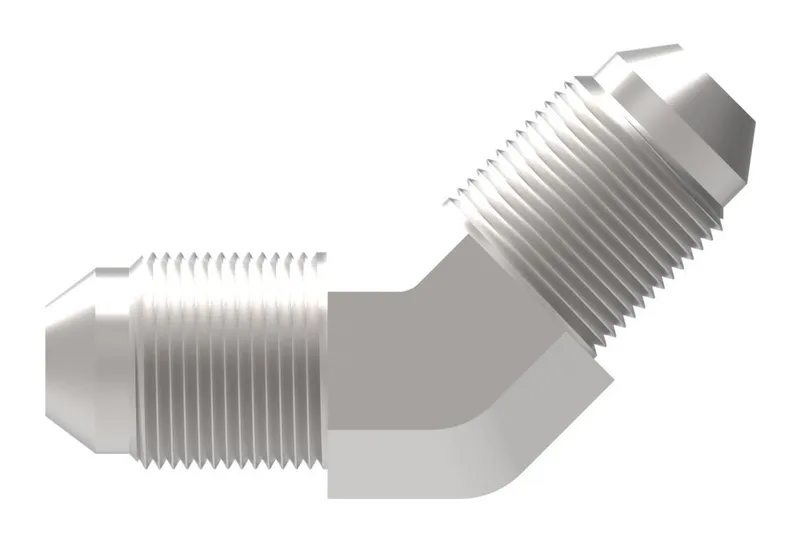

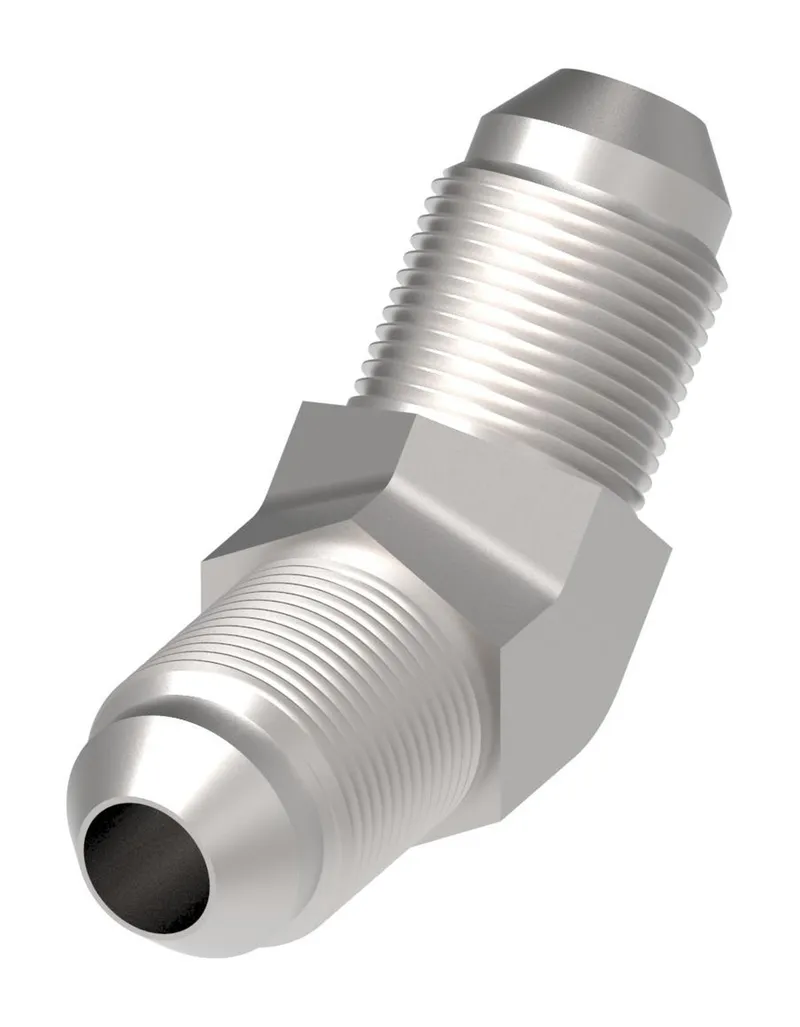

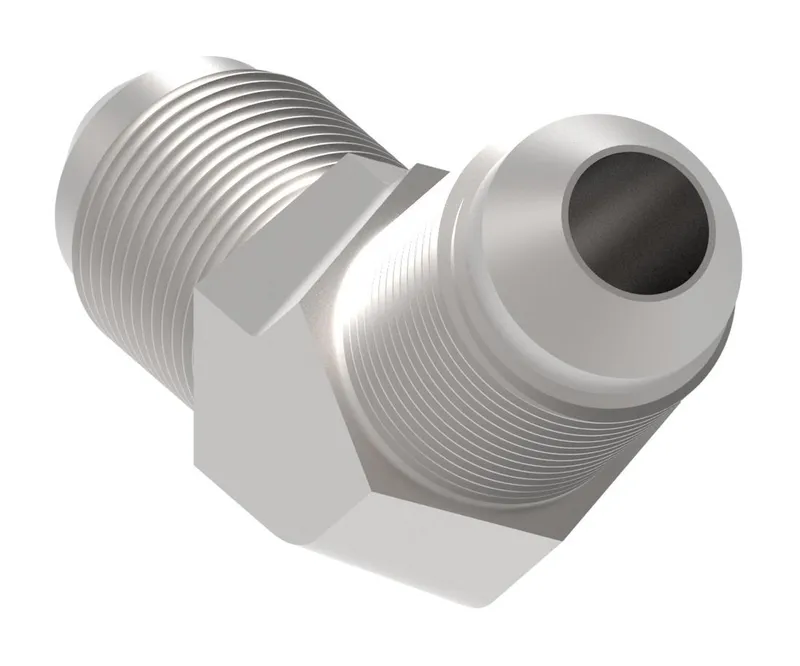

Adapter-ELB,FF4308,-12-12,CS,ZD

MPN: FF4308-1212S
Category: Adapters and swivel joints

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss FF4308-1212S?

Danfoss Adapter-ELB,FF4308,-12-12,CS,ZD, manufacturer part number FF4308-1212S. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	810075332902
Angle shape	45 Degree
Drop dimension IN	1.988
Drop dimension MM	50.50
End size 1	-12
End size 2	-12
End Type 1	Male 37 degree
End Type 2	Male 37 degree
Finish plating	Dura-Kote
Hex size 1 IN	1.060
Hex size 1 MM	26.900
Hex size 3 MM	27.0
Item type	Adapter-elbow
Product material	Carbon steel
Product serial name	FF4308
Thread sealant	No
Thread size 1	1 1/16-12 UN
Thread size 2	1 1/16-12 UN
Tube outside diameter 1 IN	0.740
Tube outside diameter 1 MM	18.8
Tube outside diameter 2 IN	0.740
Tube outside diameter 2 MM	18.8
Working temp max C	204
Working temp max F	400
Working temp min C	-54
Working temp min F	-65

FF4308-1212S: frequently asked questions

When can FF4308-1212S be shipped?

FF4308-1212S is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up FF4308-1212S in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for FF4308-1212S and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for FF4308-1212S, subject to availability and destination.
