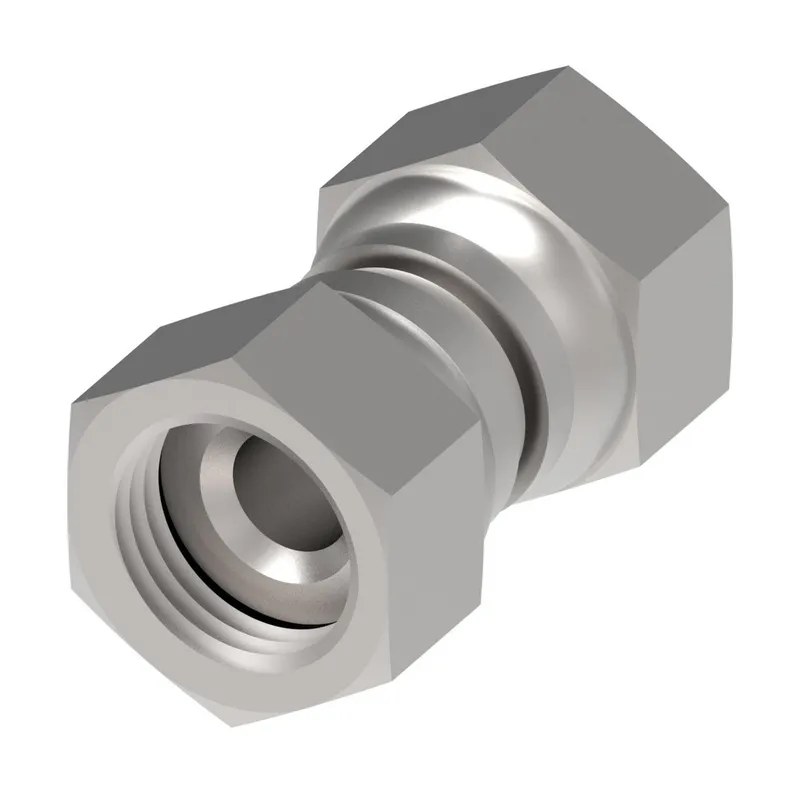

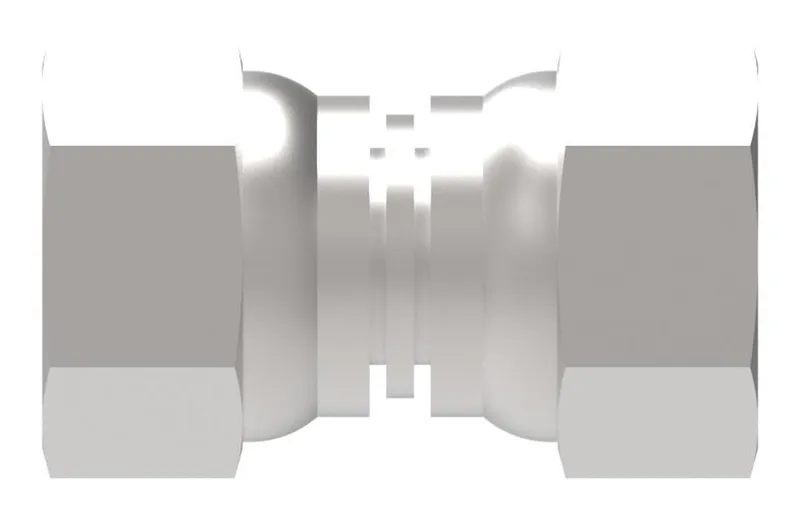

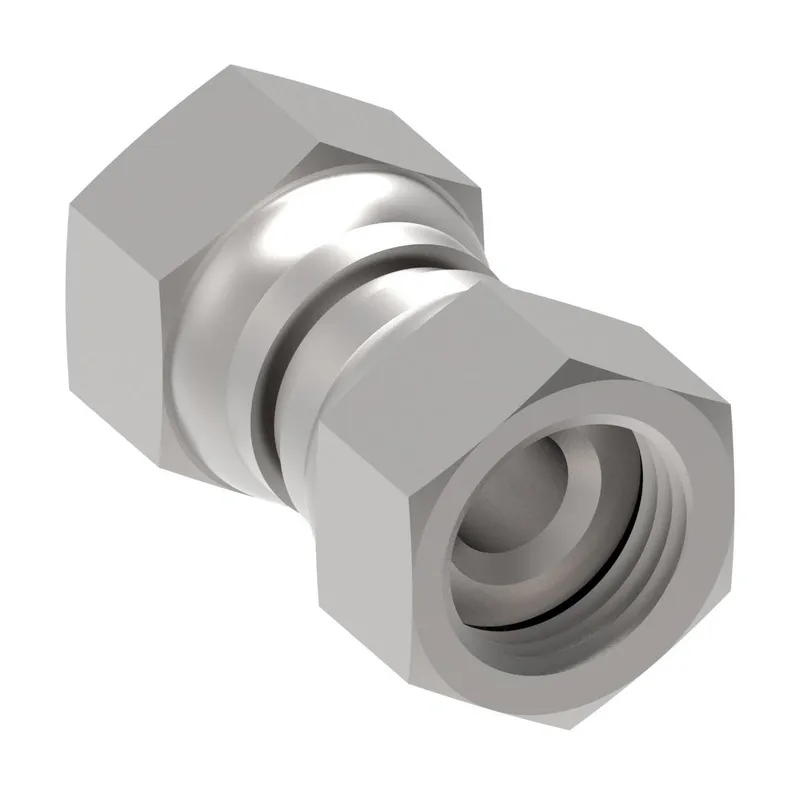

Danfoss FF4285-3232S

Adapter-STR,FF4285,-32-32,CS,ZD

MPN: FF4285-3232S
Category: Adapters and swivel joints

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss FF4285-3232S?

Danfoss Adapter-STR,FF4285,-32-32,CS,ZD, manufacturer part number FF4285-3232S. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	810075332360
End size 1	-32
End size 2	-32
End Type 1	Female 37 degree swivel
End Type 2	Female 37 degree swivel
Finish plating	Dura-Kote
Hex size 1 IN	2.950
Hex size 1 MM	74.900
Hex size 2 IN	2.950
Hex size 2 MM	74.900
Item type	Adapter-straight
Product material	Carbon steel
Product serial name	FF4285
Thread sealant	No
Thread size 1	2 1/2-12 UN
Thread size 2	2 1/2-12 UN
Tube outside diameter 1 IN	2.000
Tube outside diameter 1 MM	50.8
Tube outside diameter 2 IN	2.000
Tube outside diameter 2 MM	50.8
Working temp max C	121
Working temp max F	250
Working temp min C	-40
Working temp min F	-40
