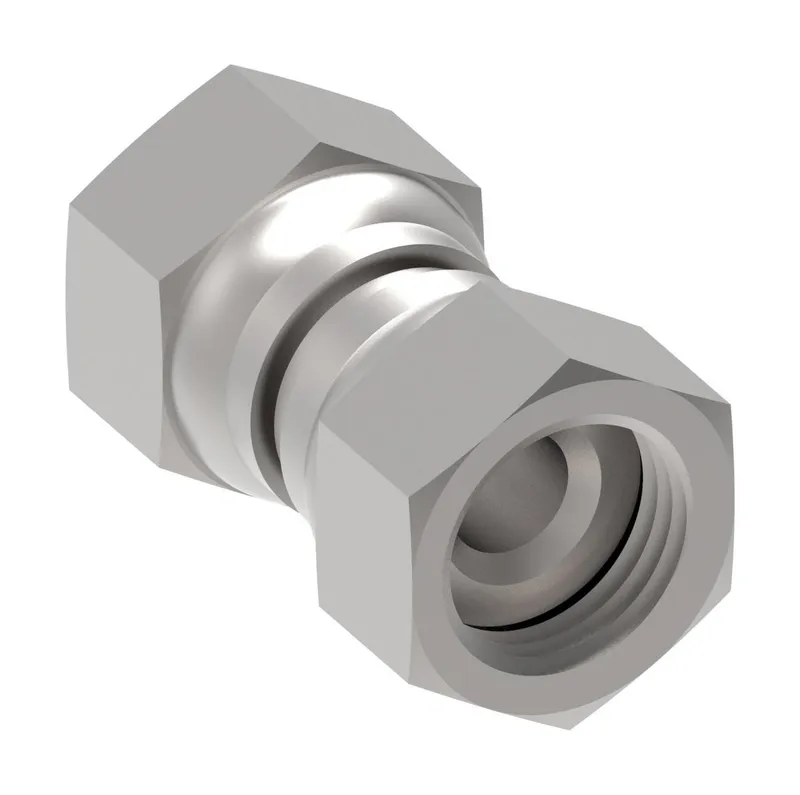

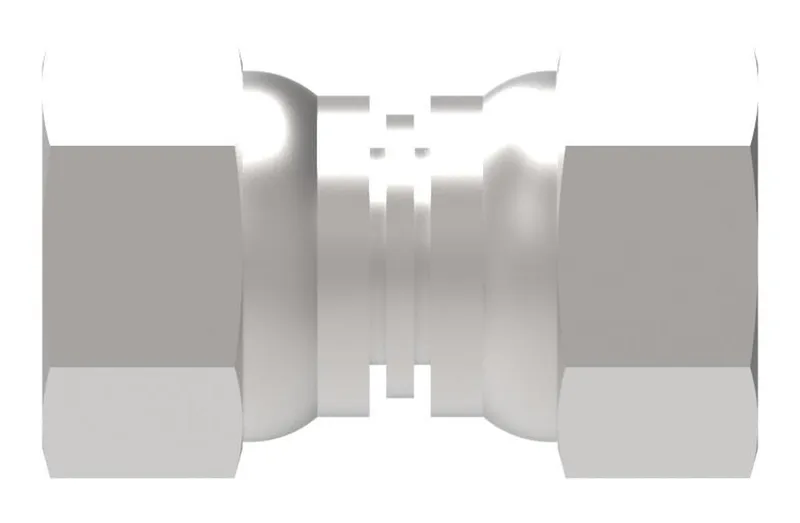

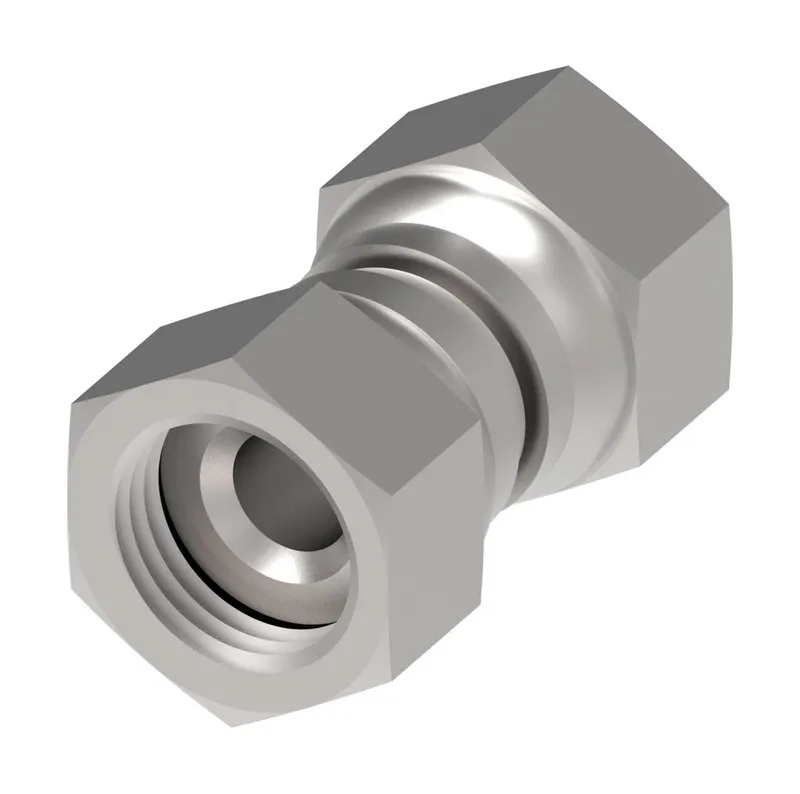

Danfoss FF4285-1010S

Adapter-STR,FF4285,-10-10,CS,ZD

MPN: FF4285-1010S
Category: Adapters and swivel joints

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss FF4285-1010S?

Danfoss Adapter-STR,FF4285,-10-10,CS,ZD, manufacturer part number FF4285-1010S. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	810075333480
End size 1	-10
End size 2	-10
End Type 1	Female 37 degree swivel
End Type 2	Female 37 degree swivel
Finish plating	Dura-Kote
Hex size 1 IN	1.060
Hex size 1 MM	26.900
Hex size 2 IN	1.060
Hex size 2 MM	26.900
Item type	Adapter-straight
Product material	Carbon steel
Product serial name	FF4285
Thread sealant	No
Thread size 1	7/8-14 UNF
Thread size 2	7/8-14 UNF
Tube outside diameter 1 IN	0.620
Tube outside diameter 1 MM	15.7
Tube outside diameter 2 IN	0.620
Tube outside diameter 2 MM	15.7
Working temp max C	121
Working temp max F	250
Working temp min C	-40
Working temp min F	-40
