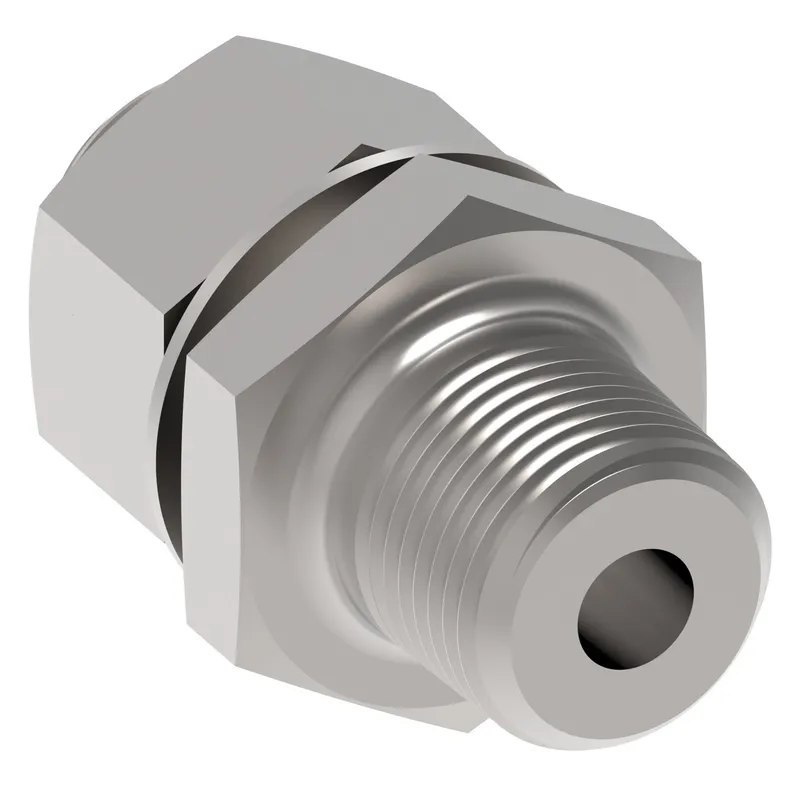

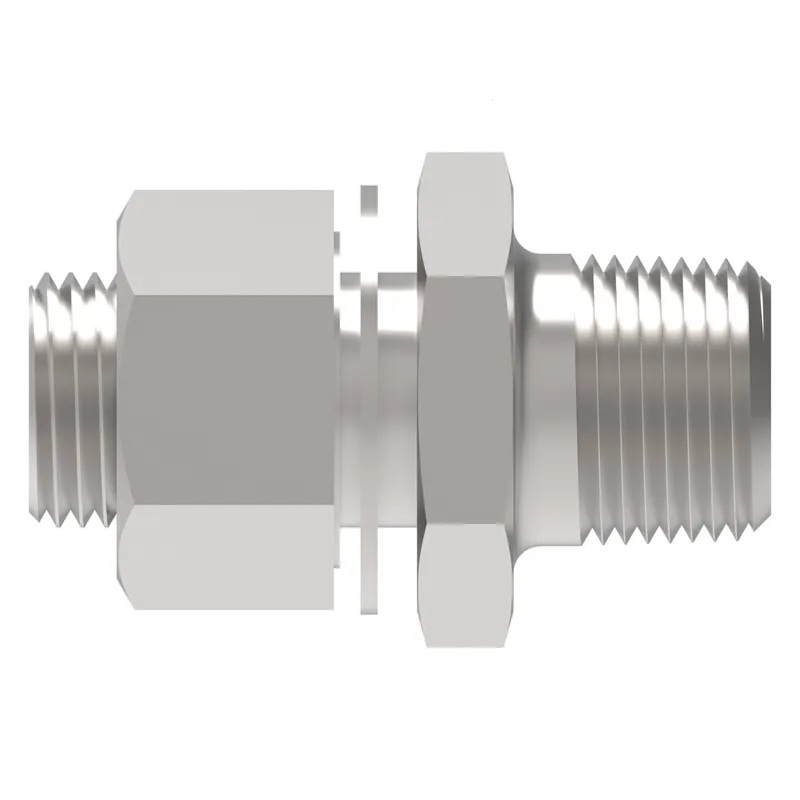

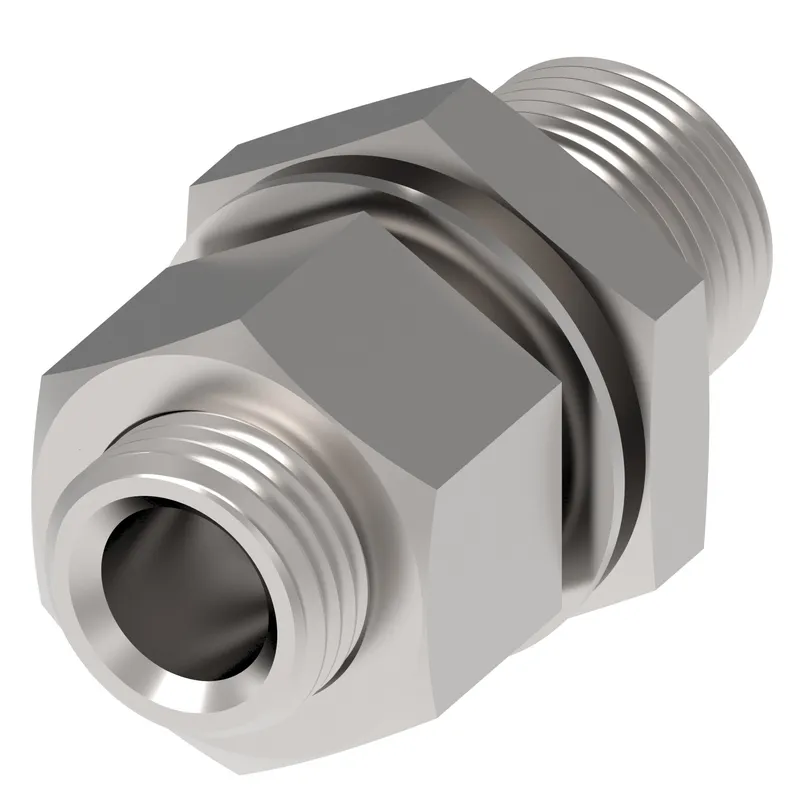

Danfoss FF4185-0804-2S

ADP BLK NPTF Long 08MPx04FP3/4 16

MPN: FF4185-0804-2S
Category: Adapters and swivel joints

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss FF4185-0804-2S?

Danfoss ADP BLK NPTF Long 08MPx04FP3/4 16, manufacturer part number FF4185-0804-2S. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146190024
Brand	Danfoss
End Type 1	Male pipe (NPTF)
End Type 2	Male ORB BSPP
Finish plating	Dura-Kote
Hex size 1 IN	1.250
Hex size 1 MM	31.800
Hex size 2 IN	1.063
Hex size 2 MM	27.000
Product material	Carbon steel
Thread sealant	No
Thread size 2	3/4-16 UNF
Tube outside diameter 1 IN	0.500
Tube outside diameter 1 MM	12.7
Tube outside diameter 2 IN	0.250
Tube outside diameter 2 MM	6.4
Working pressure bar	345.0
Working pressure psi	5000
Working temp max C	121
Working temp max F	250
Working temp min C	-40
Working temp min F	-40

FF4185-0804-2S: frequently asked questions

When can FF4185-0804-2S be shipped?

FF4185-0804-2S is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up FF4185-0804-2S in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for FF4185-0804-2S and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for FF4185-0804-2S, subject to availability and destination.
