Danfoss FF4184-0404S

Adaptr WHD 41157X4 04M SAE37 04 TubeO

MPN: FF4184-0404S
Category: Adapters and swivel joints

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

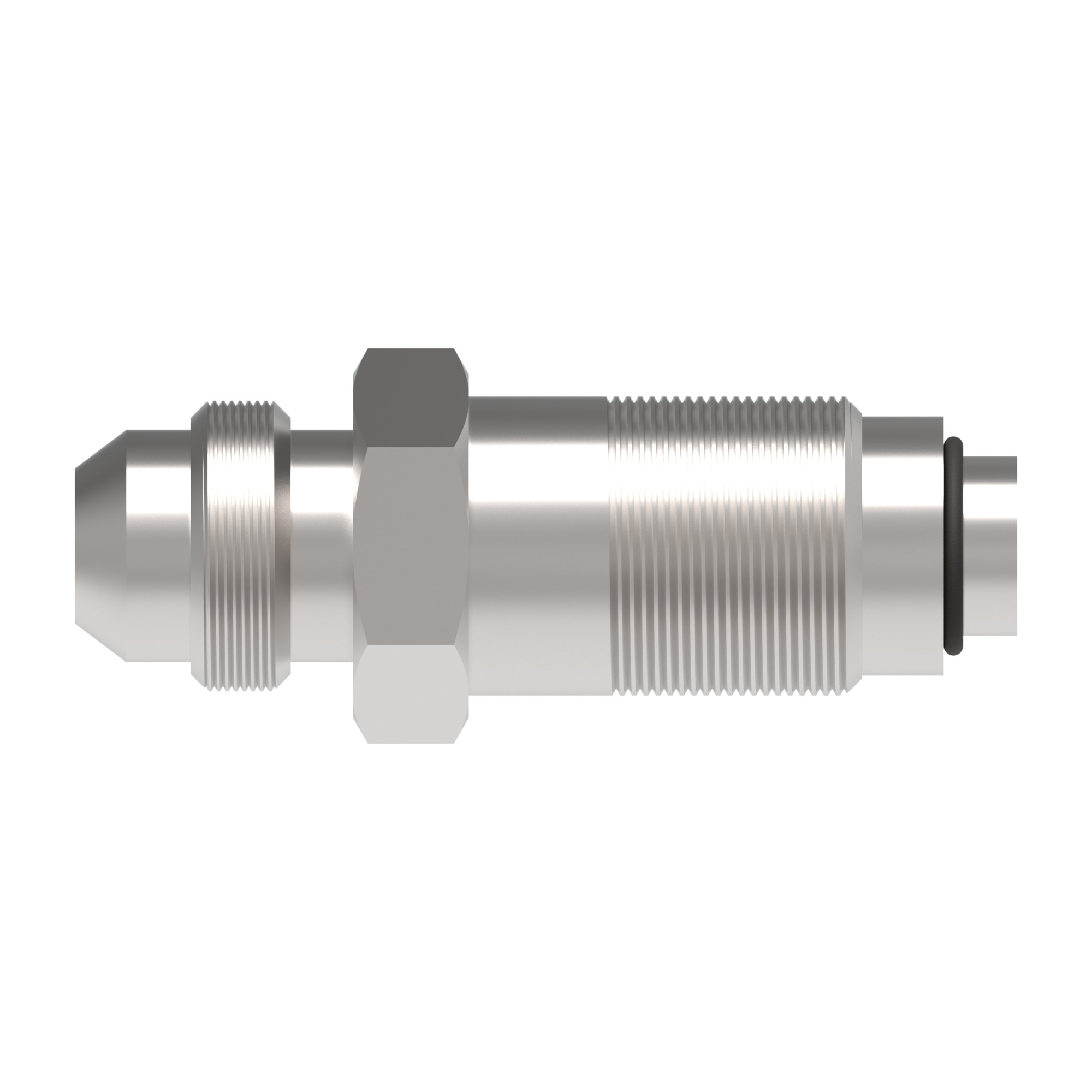

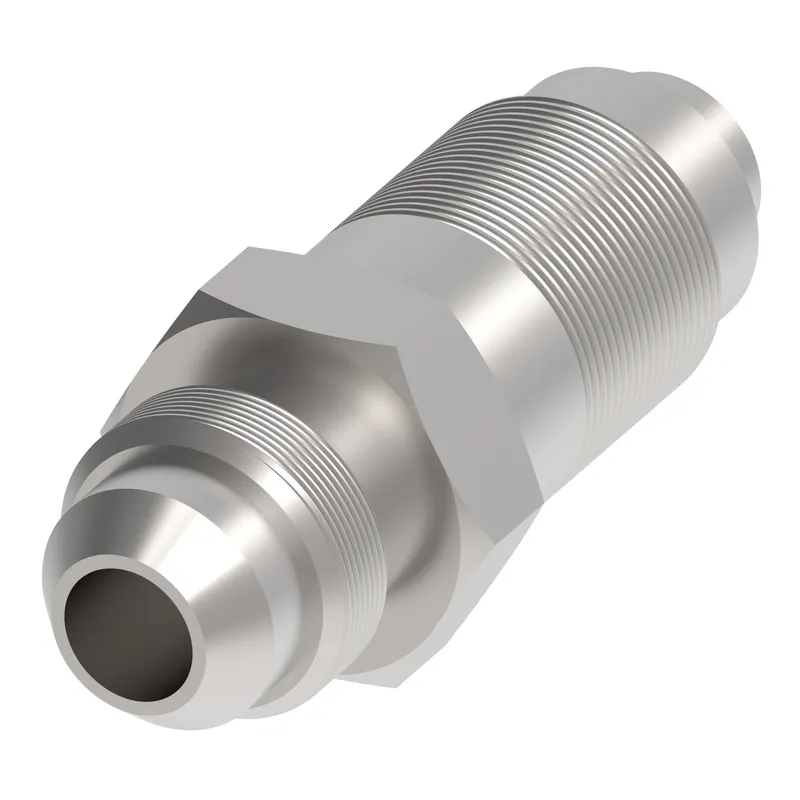

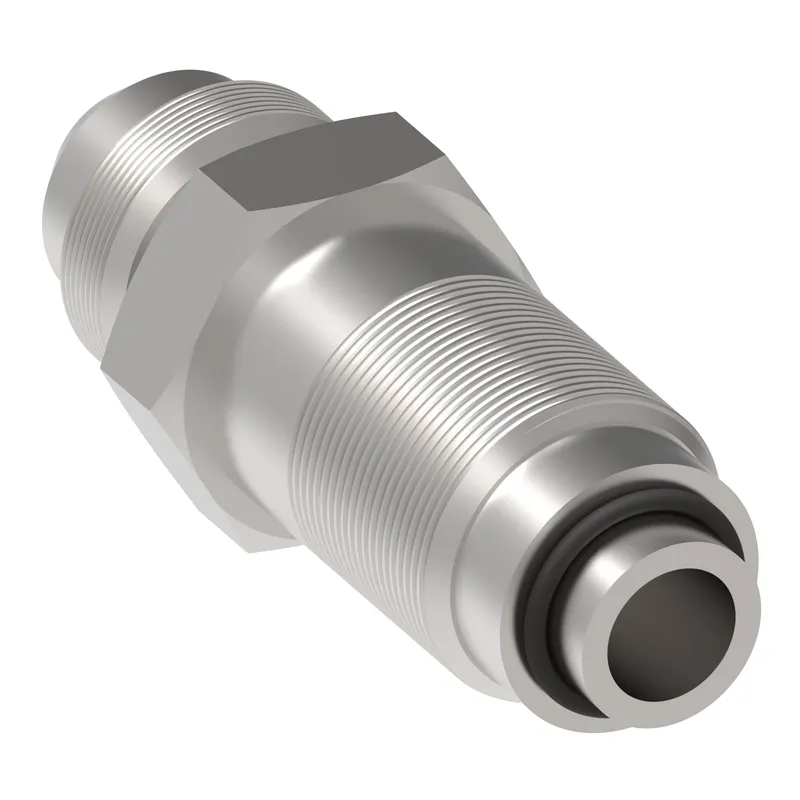

What is the Danfoss FF4184-0404S?

Danfoss Adaptr WHD 41157X4 04M SAE37 04 TubeO, manufacturer part number FF4184-0404S. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146178282
Brand	Danfoss
End Type 1	Male 37 degree
End Type 2	Male ORB ISO 11926-3
Finish plating	Dura-Kote
Hex size 1 IN	0.438
Hex size 1 MM	11.100
Hex size 2 IN	0.438
Hex size 2 MM	11.100
Item type	Adapter-straight
Product material	Carbon steel
Thread sealant	No
Thread size 1	7/16-20 UNF
Tube outside diameter 1 IN	0.250
Tube outside diameter 1 MM	6.4
Tube outside diameter 2 IN	0.250
Tube outside diameter 2 MM	6.4
Working temp max C	121
Working temp max F	250
Working temp min C	-40
Working temp min F	-40
