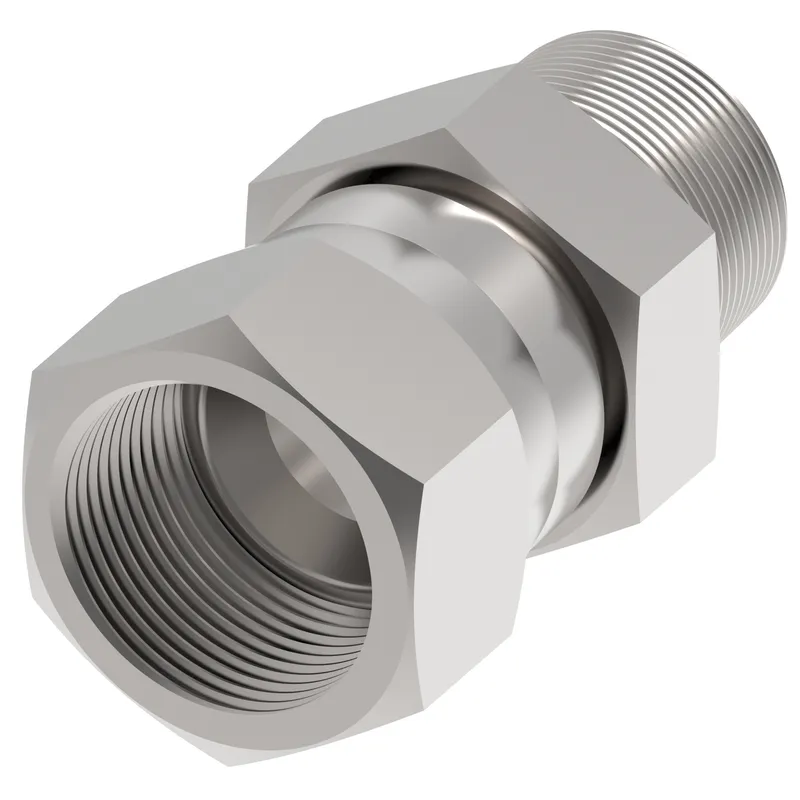

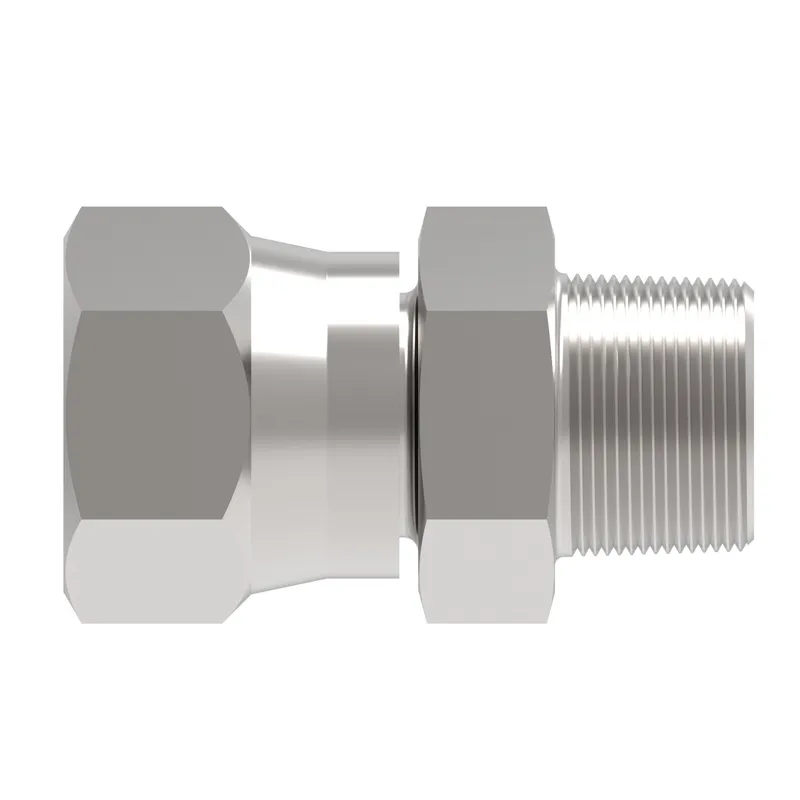

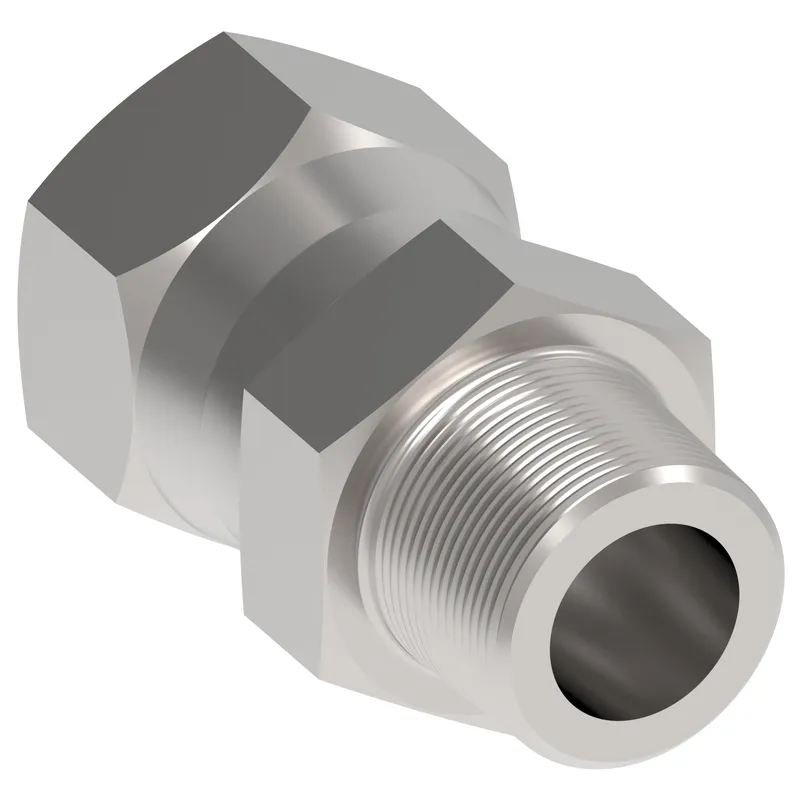

Danfoss FF4181-0504S

Adptr WHD M9800X5X4 05M SAE37 04M BSPT

MPN: FF4181-0504S
Category: Adapters and swivel joints

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss FF4181-0504S?

Danfoss Adptr WHD M9800X5X4 05M SAE37 04M BSPT, manufacturer part number FF4181-0504S. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146178145
Brand	Danfoss
End Type 1	Female 37 degree swivel
End Type 2	Male pipe BSPT
Finish plating	Dura-Kote
Hex size 1 IN	0.625
Hex size 1 MM	15.900
Hex size 2 IN	0.688
Hex size 2 MM	17.500
Product material	Carbon steel
Thread sealant	No
Thread size 1	1/2-20 UNF
Thread size 2	R 1/4
Tube outside diameter 1 IN	0.313
Tube outside diameter 1 MM	7.9
Tube outside diameter 2 IN	0.250
Tube outside diameter 2 MM	6.4
Working temp max C	121
Working temp max F	250
Working temp min C	-40
Working temp min F	-40
