Danfoss FF4174-0808S

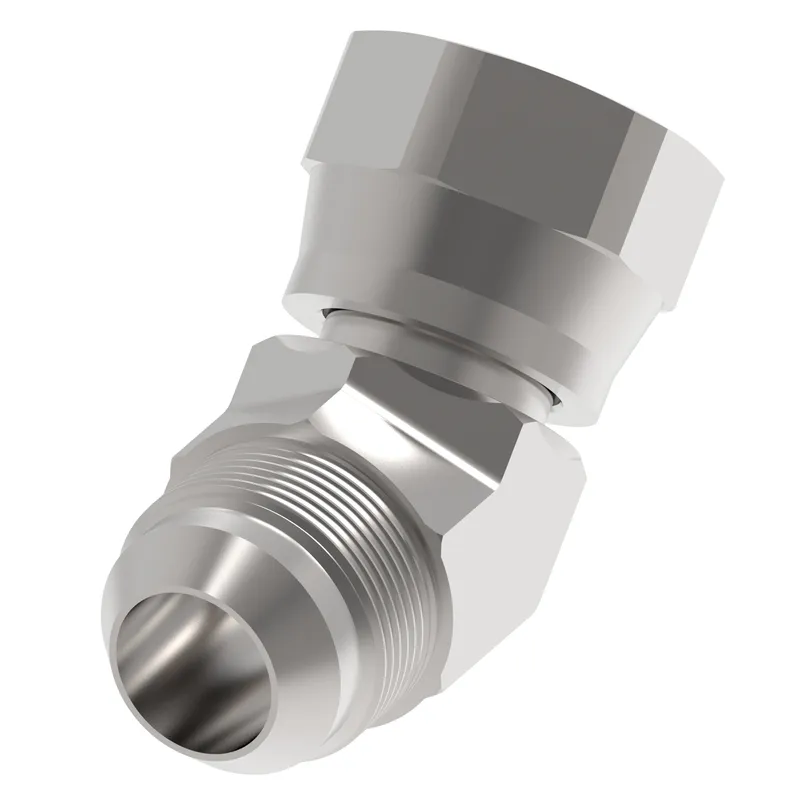

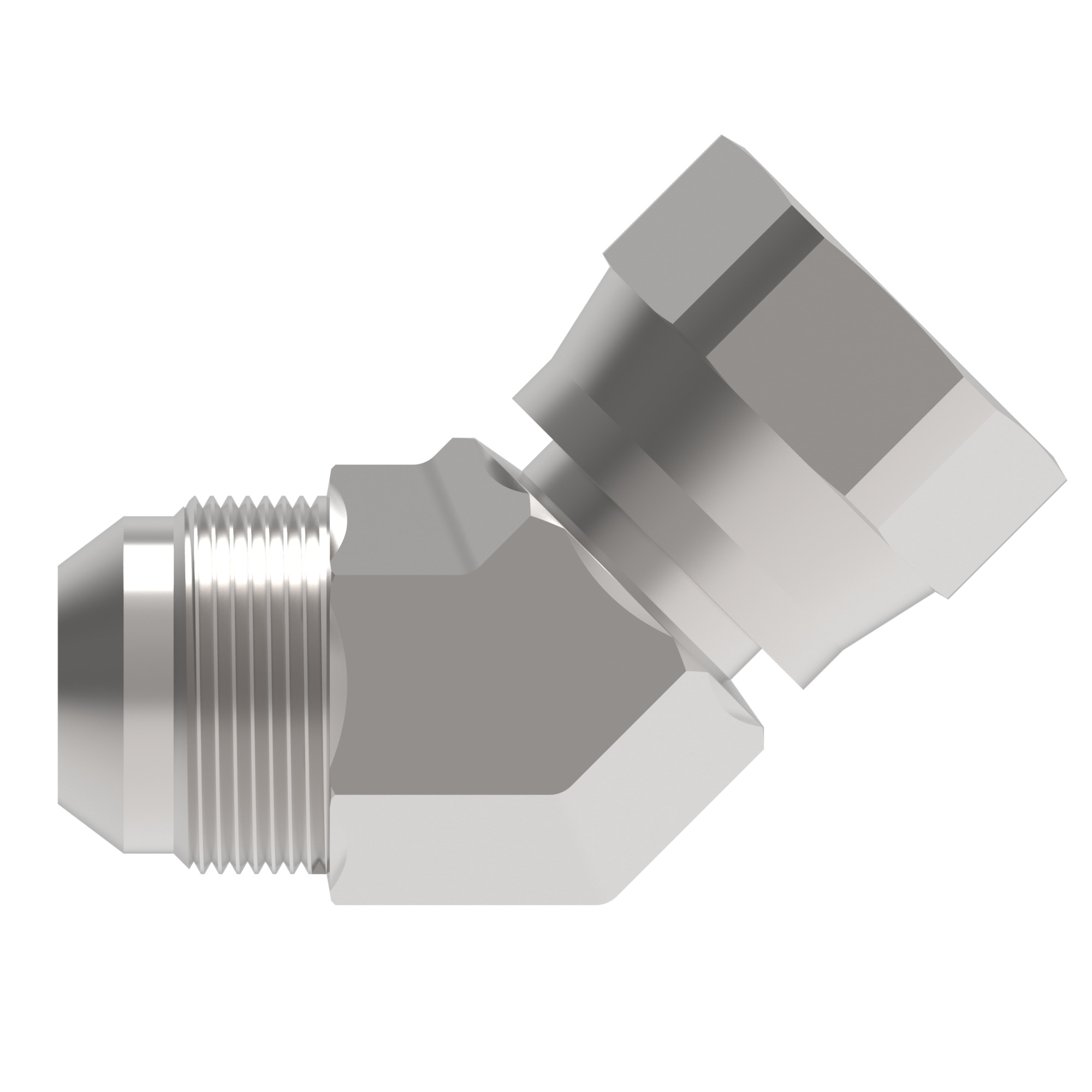

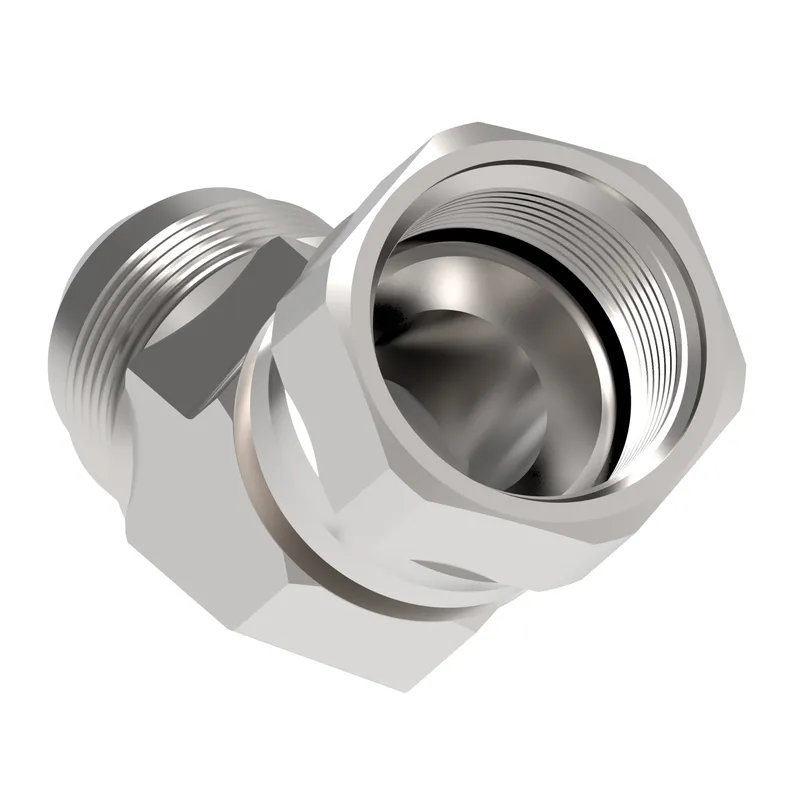

Adptr SAE45 Steel 45DAssy 08 SAE45 M x F

MPN: FF4174-0808S
Category: Adapters and swivel joints

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss FF4174-0808S?

Danfoss Adptr SAE45 Steel 45DAssy 08 SAE45 M x F, manufacturer part number FF4174-0808S. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146189493
Angle shape	45 Degree
Brand	Danfoss
Drop dimension IN	0.870
Drop dimension MM	22.10
End Type 2	Female 45 degree swivel
Finish plating	Dura-Kote
Hex size 1 IN	0.750
Hex size 1 MM	19.100
Hex size 2 IN	0.880
Hex size 2 MM	22.400
Product material	Carbon steel
Thread sealant	No
Thread size 1	3/4-16 UNF
Thread size 2	3/4-16 UNF
Tube outside diameter 1 IN	0.410
Tube outside diameter 1 MM	10.4
Tube outside diameter 2 IN	0.410
Tube outside diameter 2 MM	10.4
Working temp max C	204
Working temp max F	400
Working temp min C	-54
Working temp min F	-65
