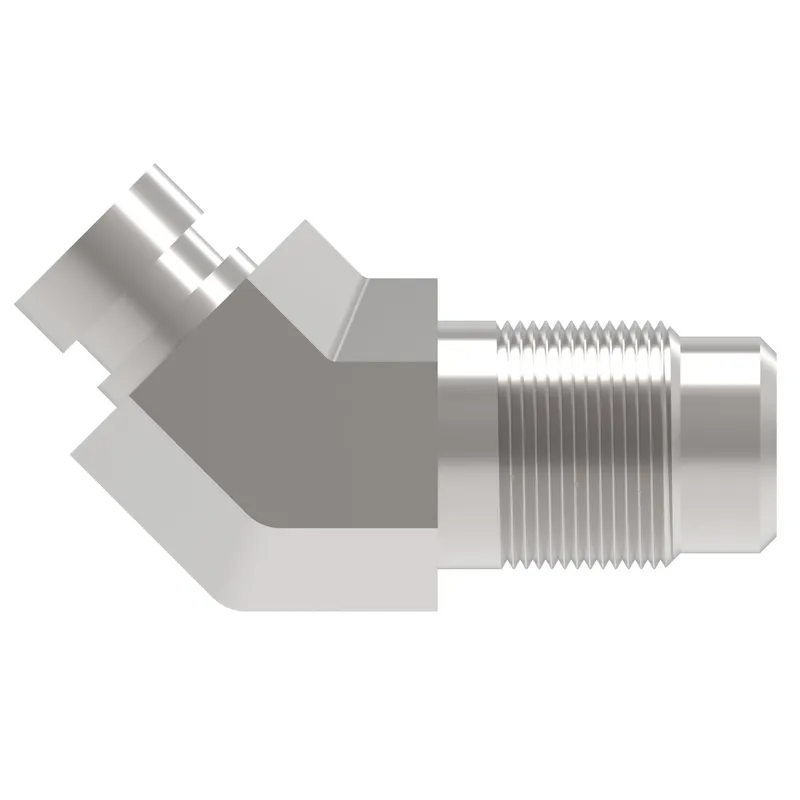

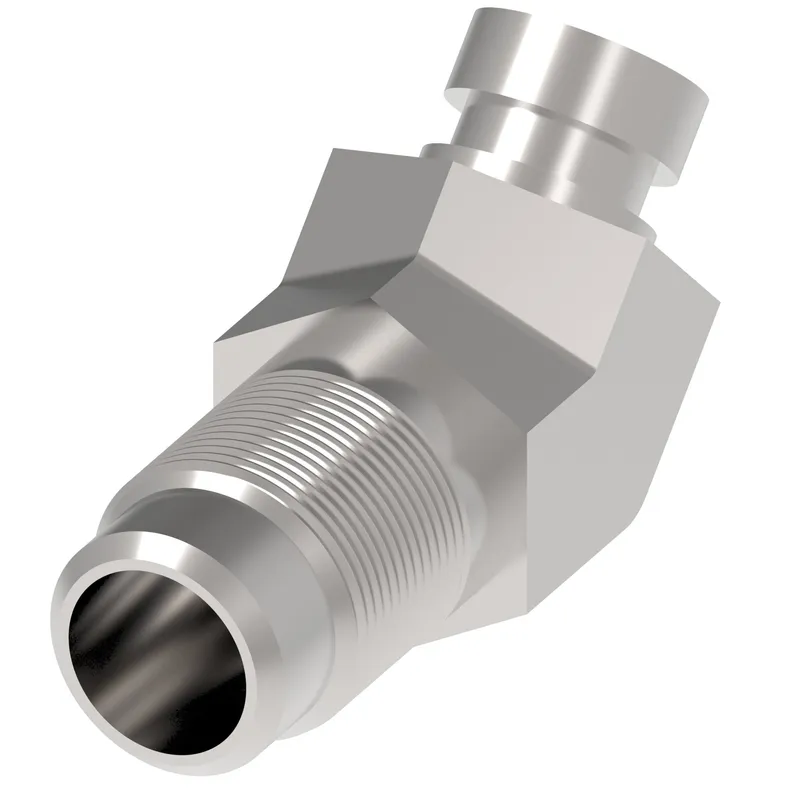

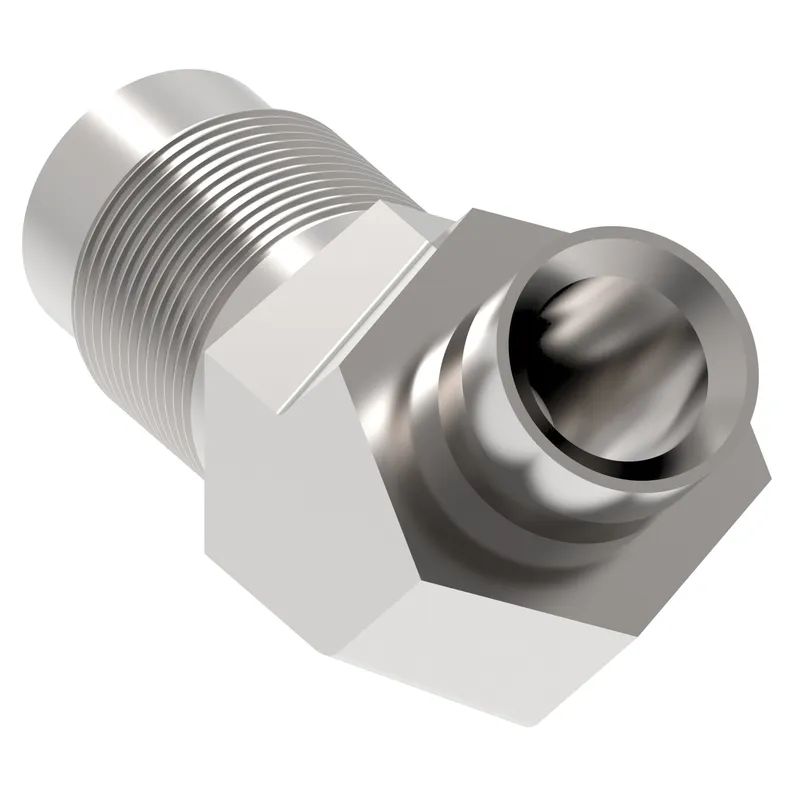

Danfoss FF4171-1010S

ADP SAE45 Steel 45DBody10SAE45MxF

MPN: FF4171-1010S
Category: Adapters and swivel joints

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss FF4171-1010S?

Danfoss ADP SAE45 Steel 45DBody10SAE45MxF, manufacturer part number FF4171-1010S. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146184061
Angle shape	45 Degree
Drop dimension IN	1.010
Drop dimension MM	25.70
End Type 2	Female 45 degree swivel
Finish plating	Dura-Kote
Hex size 1 IN	0.870
Hex size 1 MM	22.100
Product material	Carbon steel
Thread sealant	No
Thread size 1	7/8-14 UNF
Thread size 2	7/8-14 UNF
Tube outside diameter 1 IN	0.520
Tube outside diameter 1 MM	13.2
Tube outside diameter 2 IN	0.520
Tube outside diameter 2 MM	13.2
Working temp max C	204
Working temp max F	400
Working temp min C	-54
Working temp min F	-65

FF4171-1010S: frequently asked questions

When can FF4171-1010S be shipped?

FF4171-1010S is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up FF4171-1010S in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for FF4171-1010S and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for FF4171-1010S, subject to availability and destination.
