Home / Danfoss (Drives) / COUPLING,FD90,M,1/4,CS,-4MUN,NBR
Available on request

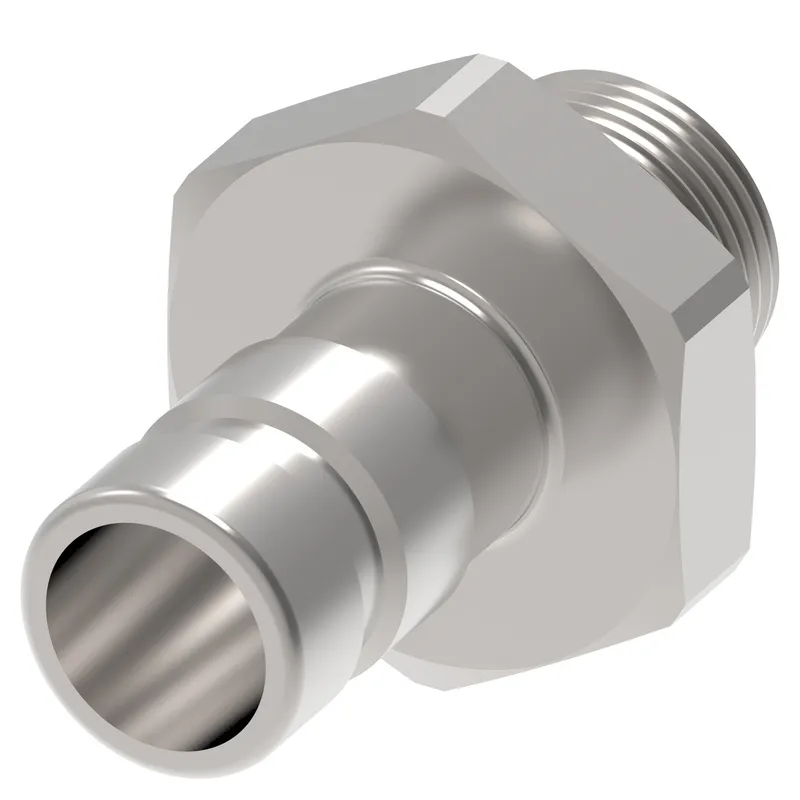

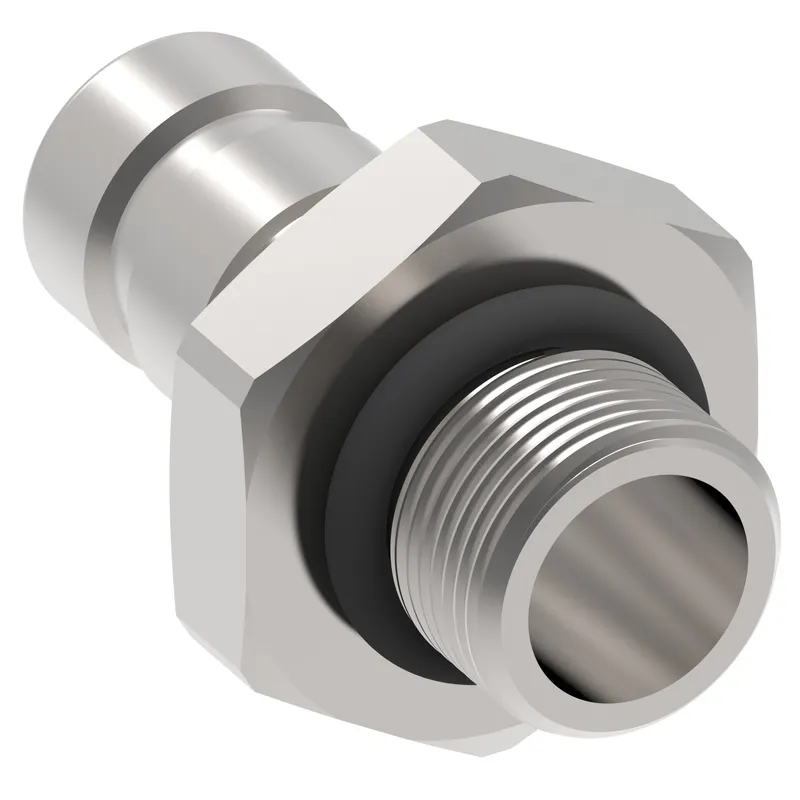

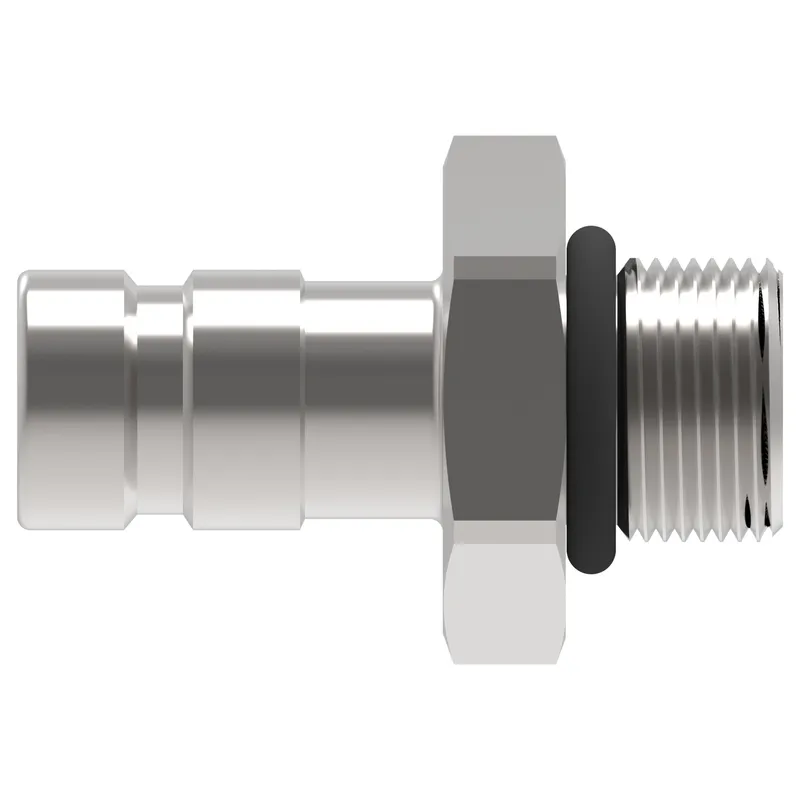

COUPLING,FD90,M,1/4,CS,-4MUN,NBR

MPN: FD90-1044-04-04 · Brand: Danfoss (Drives)
Price on request
Request a Quote

A real person replies, typically within 1 business day — see our privacy policy.

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

Quick facts

AvailabilityConfirmed on request
CategoryDanfoss Hansen® quick disconnect couplings
Lifecycleactive
Warranty12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can FD90-1044-04-04 be shipped?

FD90-1044-04-04 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up FD90-1044-04-04 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for FD90-1044-04-04 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for FD90-1044-04-04, subject to availability and destination.

Danfoss COUPLING,FD90,M,1/4,CS,-4MUN,NBR, manufacturer part number FD90-1044-04-04. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

EAN/UPC639789301093
Air inclusion max cc0.02
Angle shapeStraight
ApplicationAgriculture, Chemical, Construction, Fluid transfer, Food and beverage, General industry, Hydraulics, Oil and gas, Transportation
Body size1/4
Burst pressure min psi28000
CertificationsSAE J1502 Interchange
Connection styleAutomatic connect
End size 1-4
End Type 1Male SAE flareless
Finish platingZinc trivalent
Flow rate GPM0.60
Fluid compatibilityHydraulic fluid
Fluid loss cc0.10000
Hex size 1 IN0.620
Item typeMale half
Latch typePush/pull
Product materialCarbon steel
Safety locking mechanismSleeve lock
Seal materialNitrile (NBR)
Thread size 17/16-20 UNF
Valve type2 way
Working temperature max F250
Working temperature min F-40
12-month warrantyon all new stock
3-month warrantyon used & refurbished parts
30-day returnsno restocking fee on unused parts
Global shippingFast, tracked delivery worldwide

More Danfoss (Drives) parts

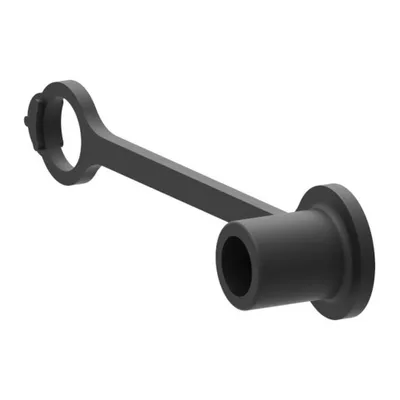

Cplng, FD90, componentAvailable on requestCplng, FD90, component
MPN: FD90-1040-04-BG · Danfoss (Drives)
Price on request
Request a quote

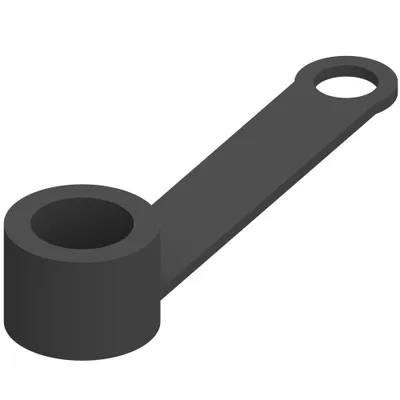

CPLNG, FD90 MALE W/O'RING 25 PAKAvailable on requestCPLNG, FD90 MALE W/O'RING 25 PAK
MPN: FD90-1040-04EL · Danfoss (Drives)
Price on request
Request a quote

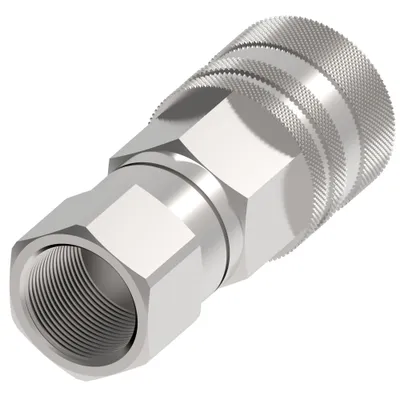

Cplng, FD90 SERIESFEMALE, STEELAvailable on requestCplng, FD90 SERIESFEMALE, STEEL
MPN: FD90-1041-04-04 · Danfoss (Drives)
Price on request
Request a quote

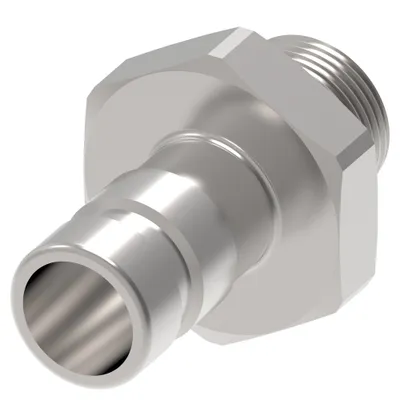

Cplng, FD90 SERIES MALE, STEELAvailable on requestCplng, FD90 SERIES MALE, STEEL
MPN: FD90-1044-03-04 · Danfoss (Drives)
Price on request
Request a quote

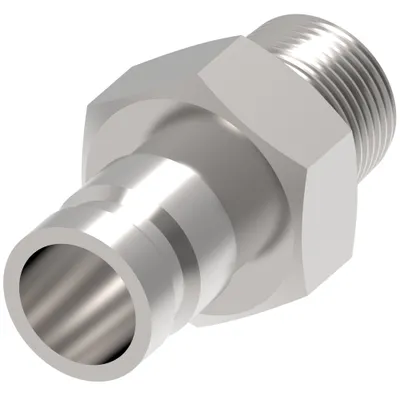

Cplng, FD90 SERIES MALE, STEELAvailable on requestCplng, FD90 SERIES MALE, STEEL
MPN: FD90-1044-05-04 · Danfoss (Drives)
Price on request
Request a quote

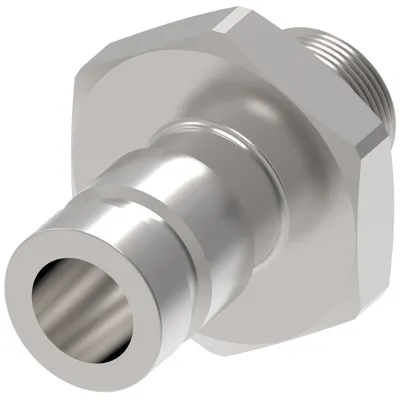

Cplng, FD90 SERIESMALE, STEELAvailable on requestCplng, FD90 SERIESMALE, STEEL
