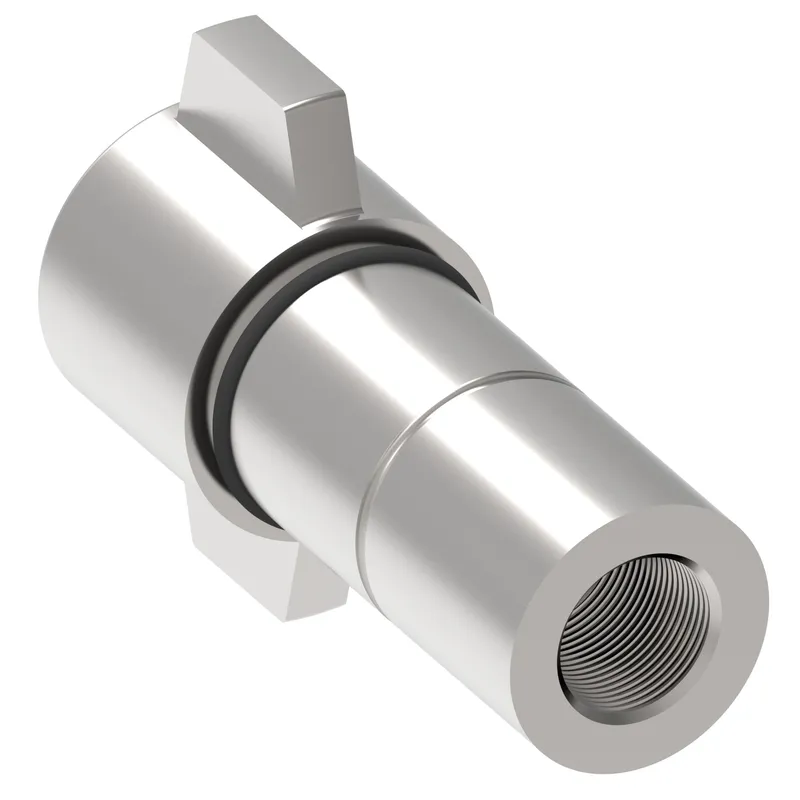

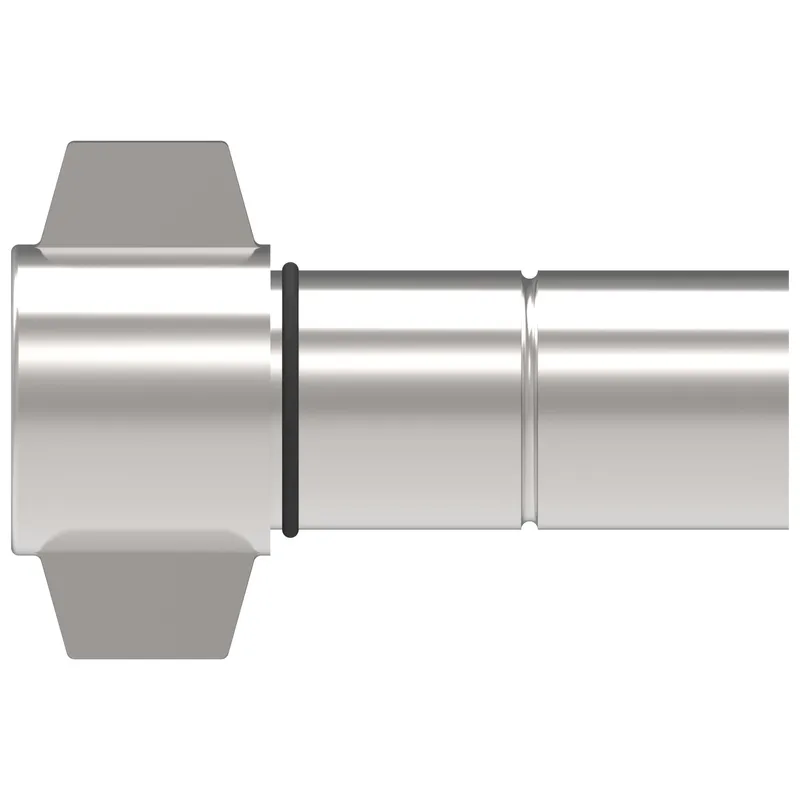

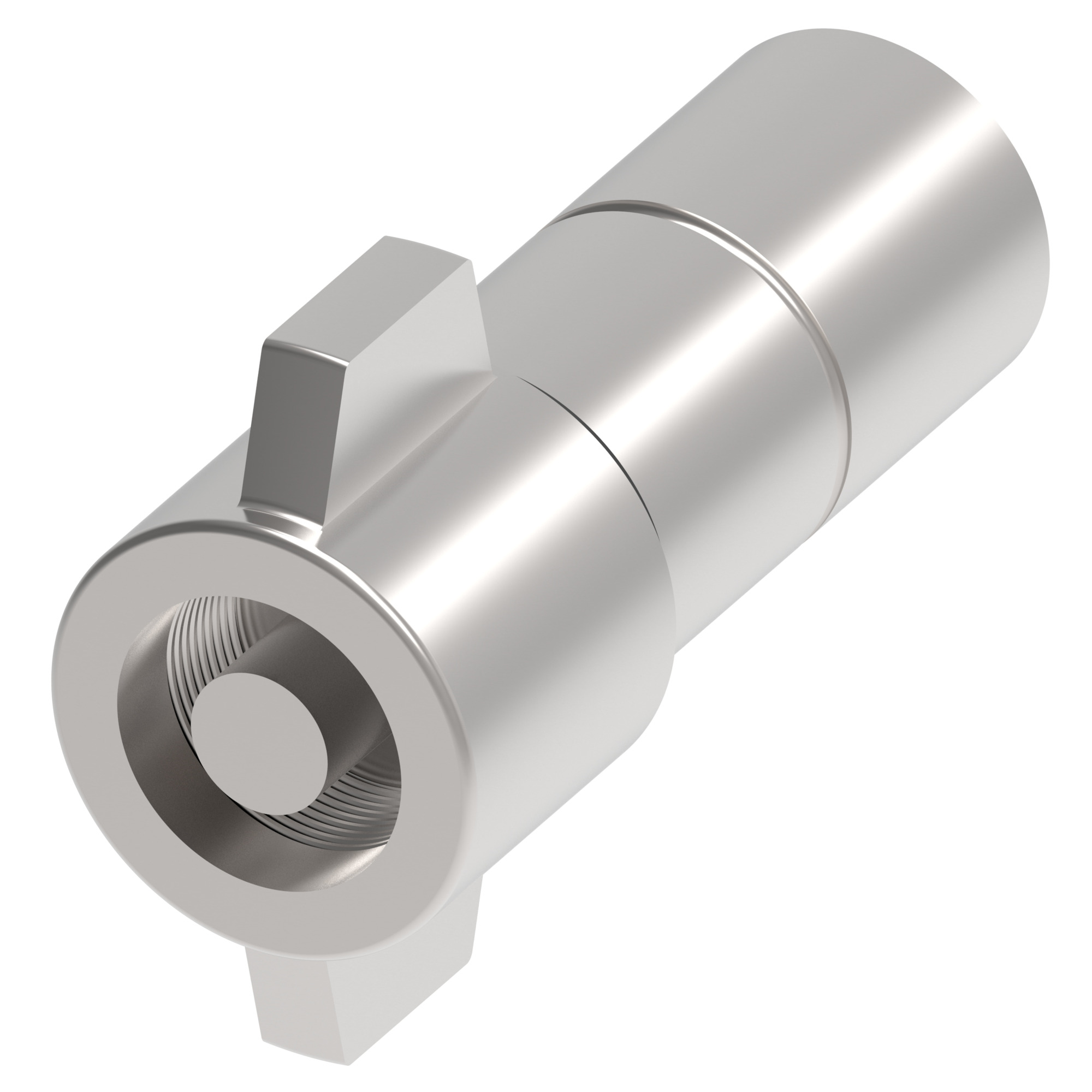

Cplng, FD86 SERIES COMPONENT, STEEL
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Danfoss Hansen® quick disconnect couplings |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can FD86-1039-16-16 be shipped?
FD86-1039-16-16 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up FD86-1039-16-16 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for FD86-1039-16-16 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for FD86-1039-16-16, subject to availability and destination.
Danfoss Cplng, FD86 SERIES COMPONENT, STEEL, manufacturer part number FD86-1039-16-16. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| EAN/UPC | 678146038319 |
| Air inclusion max cc | 2.90 |
| Air inclusion max in3 | 0.18 |
| Angle shape | Straight |
| Body size | 1" |
| Burst pressure min bar | 1034 |
| Burst pressure min psi | 15000 |
| Connection style | Manual connect |
| End size 1 | -16 |
| End size 2 | -16 |
| End Type 2 | Female pipe (NPTF) |
| Finish plating | Zinc |
| Flow rate GPM | 50.00 |
| Flow rate LPM | 189.27 |
| Fluid compatibility | Oil |
| Fluid loss cc | 0.72000 |
| Fluid loss in3 | 0.04400 |
| Hex size 1 IN | 1.750 |
| Hex size 1 MM | 44.450 |
| Item type | Female half |
| Latch type | Screw to connect |
| Product material | Carbon steel |
| Seal material | Nitrile (NBR) |
| Valve type | 2 way |
| Working pressure max psi | 5000 |
| Working pressure max BAR | 345.00 |
| Working temperature max C | 121 |
| Working temperature max F | 250 |
| Working temperature min C | -40 |
| Working temperature min F | -40 |
More Danfoss (Drives) parts
Available on requestCplng, FD86, component tubular valveAvailable on requestCplng, FD86, component bonded sleeveAvailable on requestCplng, FD86, male adapter

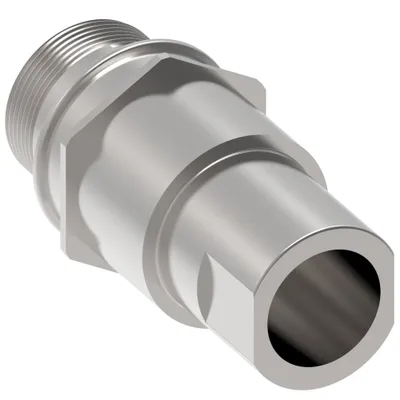

Available on requestCplng, FD86 SERIES MALE, STEELAvailable on requestCOUPLING,FD86,M,1",CS,-16UNFAvailable on requestCplng, FD86, Coupling

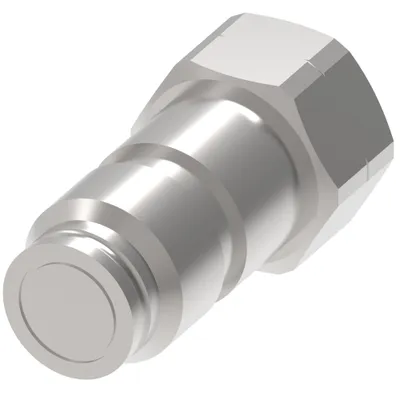

Available on requestCPLG F FACE M HALF BSPP
