Danfoss FD86-1007-16-16

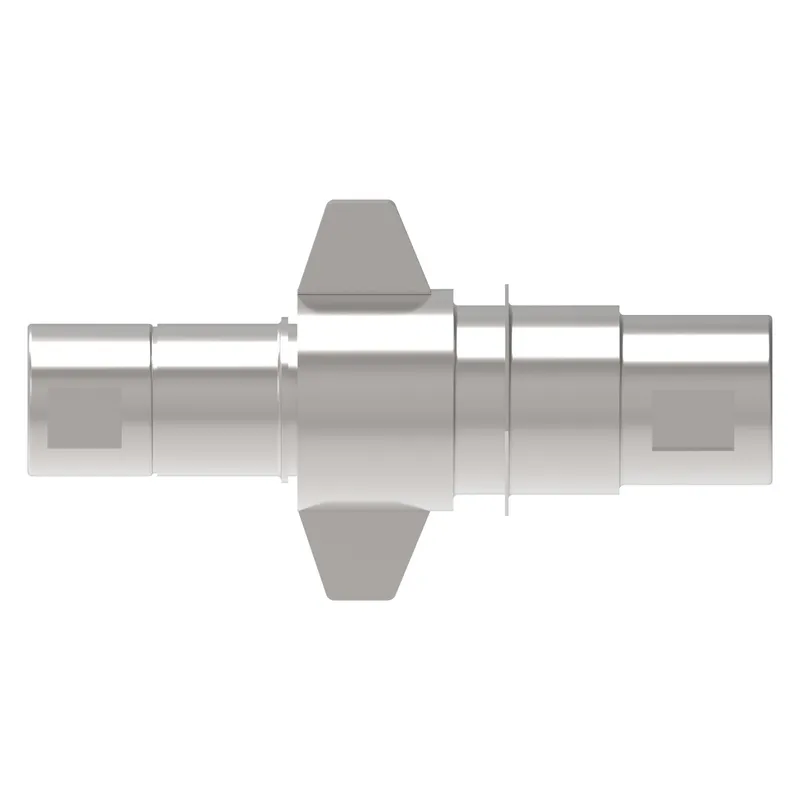

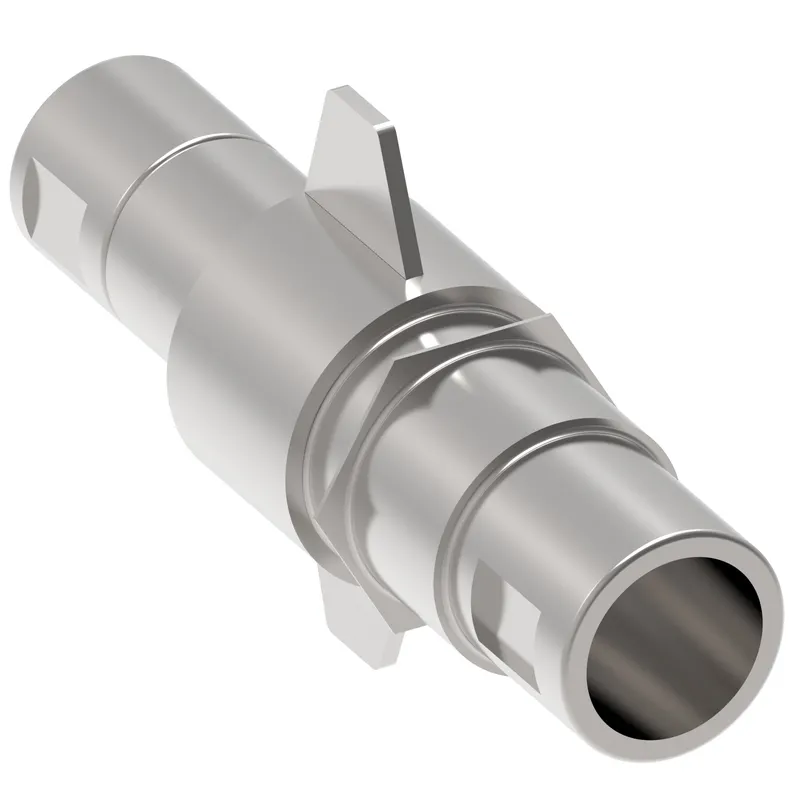

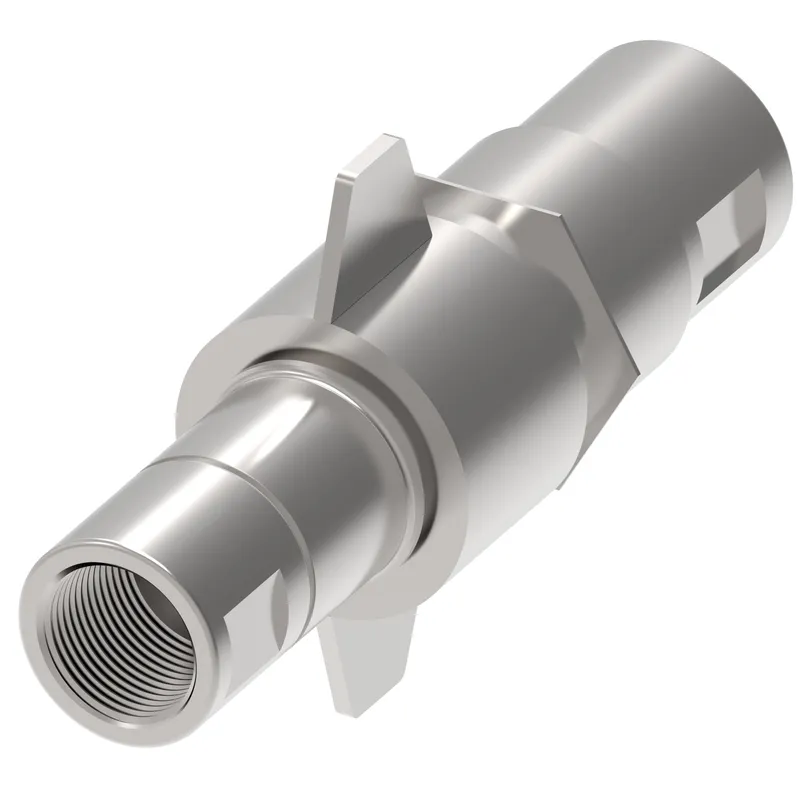

Cplng, FD86 MALE ORB

MPN: FD86-1007-16-16
Category: Danfoss Hansen® quick disconnect couplings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss FD86-1007-16-16?

Danfoss Cplng, FD86 MALE ORB, manufacturer part number FD86-1007-16-16. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146203397
Air inclusion max cc	2.90
Air inclusion max in3	0.18
Angle shape	Straight
Body size	1"
Brand	Danfoss
Burst pressure min bar	1034
Burst pressure min psi	15000
Connection style	Manual connect
End size 1	1-5/16"
End size 2	1-5/16"
Finish plating	Zinc
Flow rate GPM	50.00
Flow rate LPM	189.27
Fluid compatibility	Oil
Fluid loss cc	0.72000
Fluid loss in3	0.04400
Hex size 1 IN	1.750
Hex size 1 MM	44.450
Item type	Female half
Latch type	Screw to connect
Product material	Carbon steel
Seal material	Nitrile (NBR)
Sub brand	Hansen
Valve type	2 way
Working pressure max psi	5000
Working pressure max BAR	345.00
Working temperature max C	121
Working temperature max F	250
Working temperature min C	-40
Working temperature min F	-40

FD86-1007-16-16: frequently asked questions

When can FD86-1007-16-16 be shipped?

FD86-1007-16-16 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up FD86-1007-16-16 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for FD86-1007-16-16 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for FD86-1007-16-16, subject to availability and destination.
