Home / Danfoss (Drives) / Cplng, arc latch, comple cplg asy
Available on request

Cplng, arc latch, comple cplg asy

MPN: FD69-1000-060806 · Brand: Danfoss (Drives)
Price on request
Request a Quote

A real person replies, typically within 1 business day — see our privacy policy.

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

Quick facts

AvailabilityConfirmed on request
CategoryDanfoss Hansen® quick disconnect couplings
Lifecycleactive
Warranty12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can FD69-1000-060806 be shipped?

FD69-1000-060806 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up FD69-1000-060806 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for FD69-1000-060806 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for FD69-1000-060806, subject to availability and destination.

Danfoss Cplng, arc latch, comple cplg asy, manufacturer part number FD69-1000-060806. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

EAN/UPC678146038074
Angle shapeStraight
Body size1/2
BrandDanfoss
Burst pressure min bar2758
Burst pressure min psi40000
Connection styleManual connect
End size 2-6
End Type 1Female Push to Connect
End Type 2Male pipe (NPT)
Finish platingZinc
Flow rate GPM45.00
Flow rate LPM170.34
Fluid compatibilityGas, Oil, Water
Hex size 1 IN2.940
Hex size 1 MM74.676
Item typeComplete
Latch typePush/pull
Product materialCarbon steel
Safety locking mechanismSleeve lock
Seal materialNitrile (NBR)
Sub brandHansen
Valve typeStraight thru
Working pressure max psi10000
Working pressure max BAR689.00
Working temperature max C121
Working temperature max F250
Working temperature min C-40
Working temperature min F-40
12-month warrantyon all new stock
3-month warrantyon used & refurbished parts
30-day returnsno restocking fee on unused parts
Global shippingFast, tracked delivery worldwide

More Danfoss (Drives) parts

Cplng, 5600 SERIES FEMALE, STEELAvailable on requestCplng, 5600 SERIES FEMALE, STEEL
MPN: FD56-1239-16-16 · Danfoss (Drives)
Price on request
Request a quote
Cplng, 5600 SERIESFEMALE, STEELAvailable on requestCplng, 5600 SERIESFEMALE, STEEL
MPN: FD56-1270-06-06 · Danfoss (Drives)
Price on request
Request a quote
Cplng, 5600 SERIES FEMALE, STEELAvailable on requestCplng, 5600 SERIES FEMALE, STEEL
MPN: FD56-1270-08-10 · Danfoss (Drives)
Price on request
Request a quote
Cplng, 5600 SERIES FEMALE, STEELAvailable on requestCplng, 5600 SERIES FEMALE, STEEL
MPN: FD56-1270-12-12 · Danfoss (Drives)
Price on request
Request a quote
COUPLING,FD69,F,1/2,CS,-6NPT,NBRAvailable on requestCOUPLING,FD69,F,1/2,CS,-6NPT,NBR
MPN: FD69-1001-06-08 · Danfoss (Drives)
Price on request
Request a quote
COUPLING,FD69,F,1/2,CS,-8NPT,NBRAvailable on requestCOUPLING,FD69,F,1/2,CS,-8NPT,NBR
MPN: FD69-1001-08-08 · Danfoss (Drives)
Price on request
Request a quote

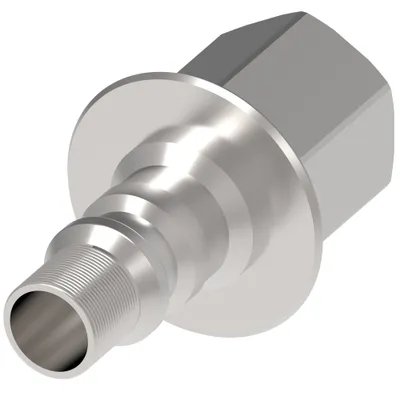

COUPLING,FD69,M,1/2,CS,-6NPT,FKMAvailable on requestCOUPLING,FD69,M,1/2,CS,-6NPT,FKM
