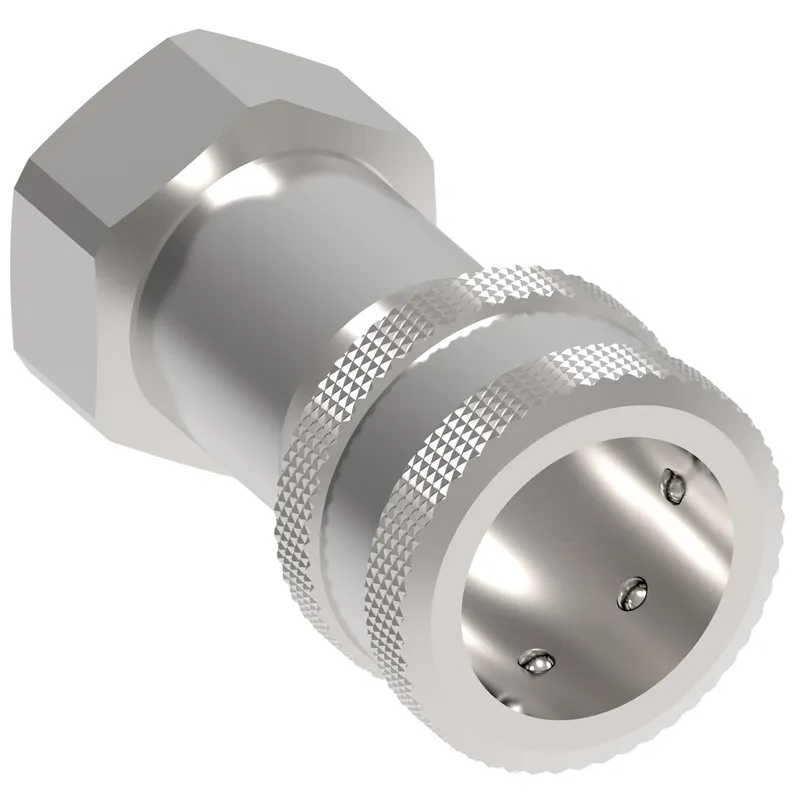

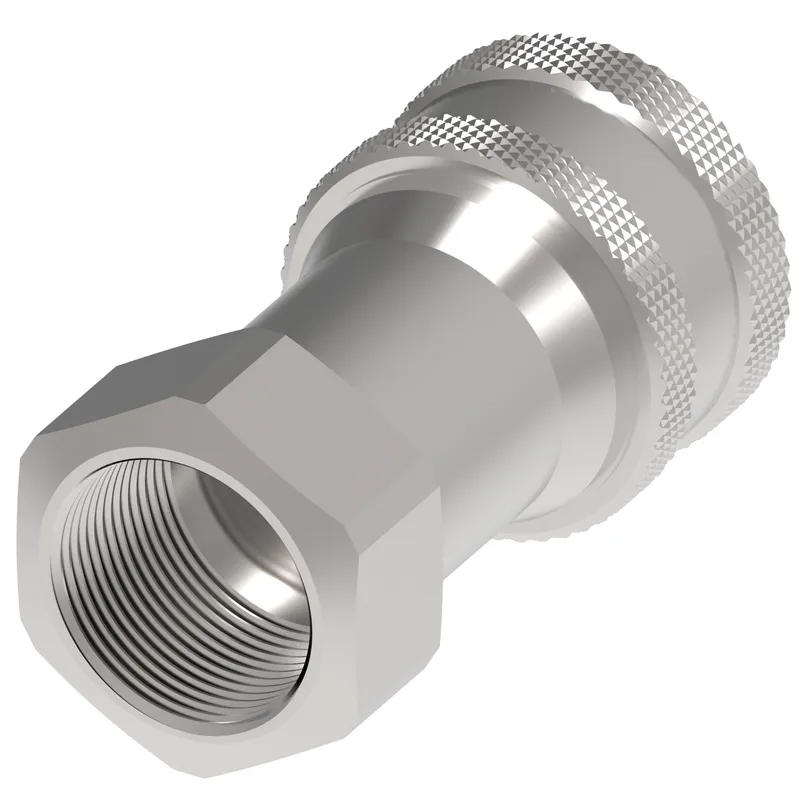

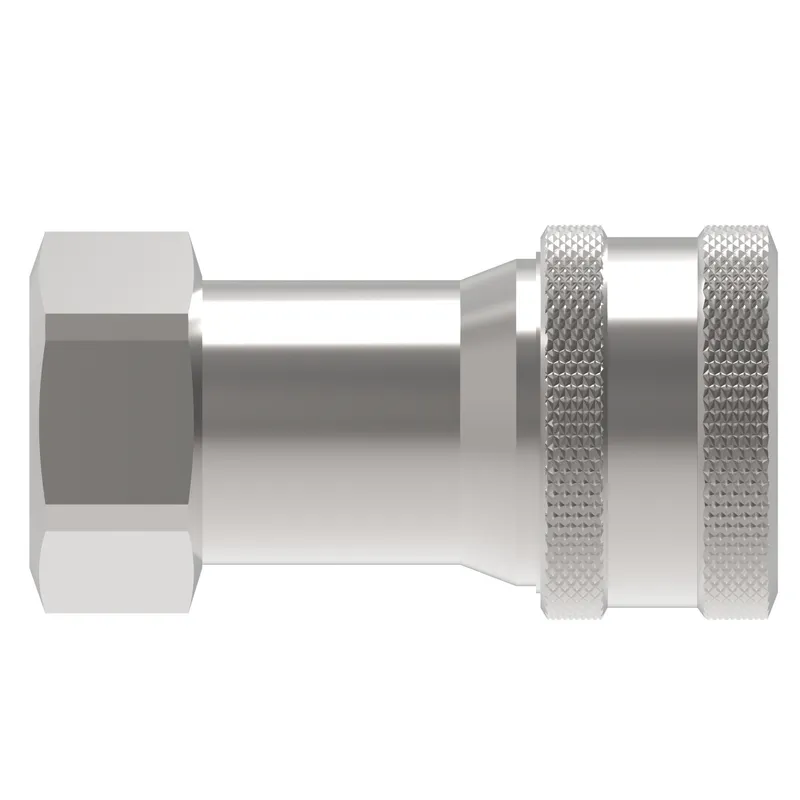

Cplng, 5600 SERIES FEMALE, STEEL

Name: Danfoss FD56-1074-04-04 – Cplng, 5600 SERIES FEMALE, STEEL
Brand: Danfoss (Drives)
SKU: FD56-1074-04-04

MPN: FD56-1074-04-04 · Brand: Danfoss (Drives)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Danfoss Hansen® quick disconnect couplings
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can FD56-1074-04-04 be shipped?

FD56-1074-04-04 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up FD56-1074-04-04 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for FD56-1074-04-04 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for FD56-1074-04-04, subject to availability and destination.

Danfoss Cplng, 5600 SERIES FEMALE, STEEL, manufacturer part number FD56-1074-04-04. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146037992
Air inclusion max cc	0.50
Air inclusion max in3	0.03
Angle shape	Straight
Body size	1/4
Burst pressure min bar	1034
Burst pressure min psi	15000
Connection style	Manual connect
End size 2	7/16"
End Type 1	Female Push to Connect
End Type 2	Female 37 degree swivel
Finish plating	Zinc
Flow rate GPM	1.00
Flow rate LPM	3.79
Fluid compatibility	Oil
Fluid loss cc	0.50000
Fluid loss in3	0.03100
Hex size 1 IN	0.880
Hex size 1 MM	22.352
Item type	Female half
Latch type	Push/pull
Product length in	1.810
Product material	Carbon steel
Seal material	Fluorocarbon (FKM)
Valve type	2 way
Working pressure max psi	5000
Working pressure max BAR	345.00
Working temperature max C	204
Working temperature max F	400
Working temperature min C	-26
Working temperature min F	-15
