COUPLING,5600,M,1/4,CS,-4NPT,FKM

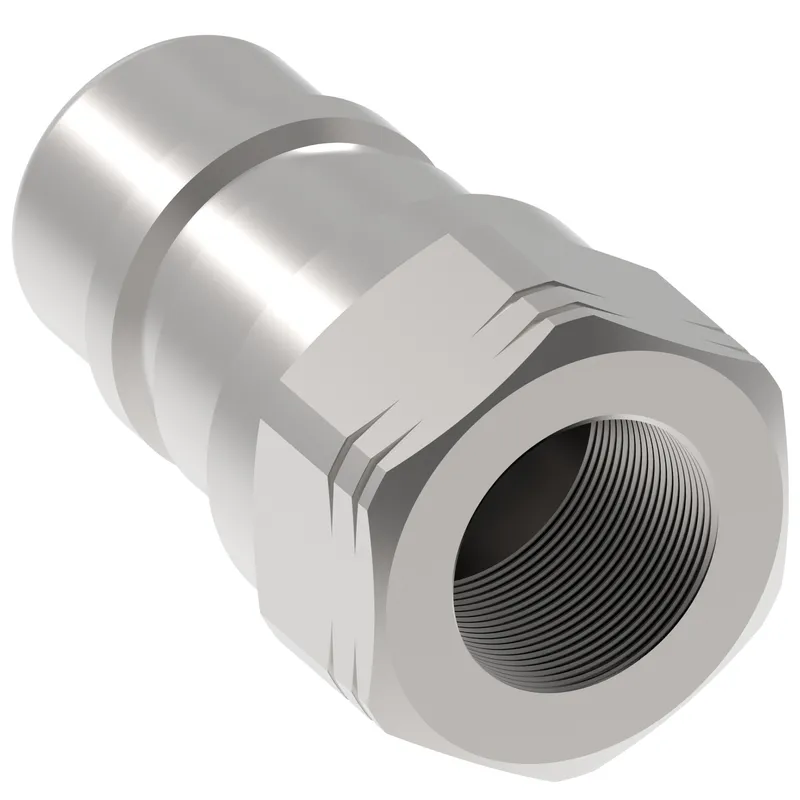

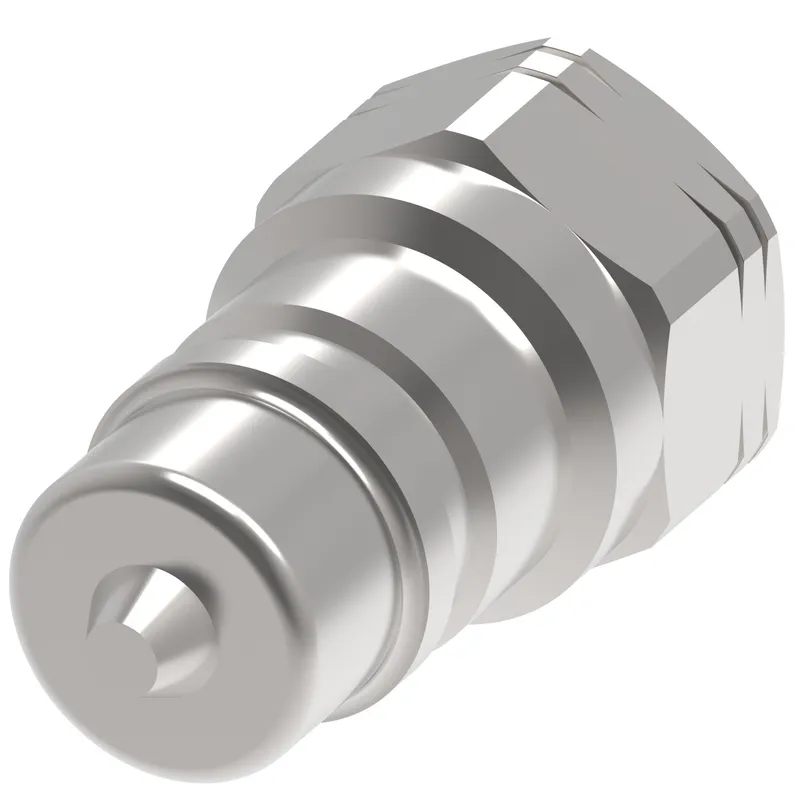

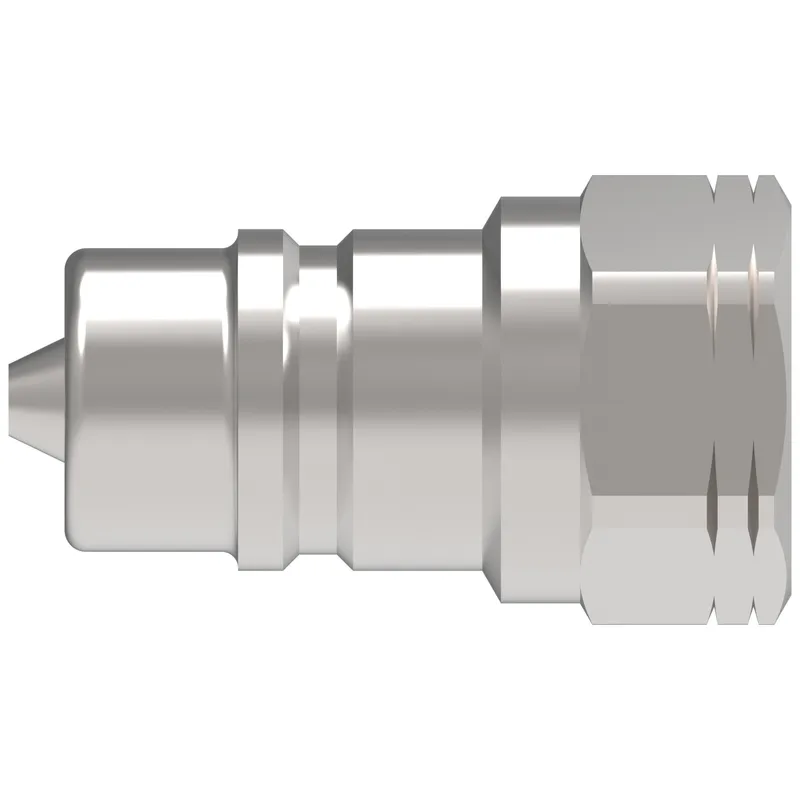

Name: Danfoss FD56-1062-04-04 – COUPLING,5600,M,1/4,CS,-4NPT,FKM
Brand: Danfoss (Drives)
SKU: FD56-1062-04-04

MPN: FD56-1062-04-04 · Brand: Danfoss (Drives)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Danfoss Hansen® quick disconnect couplings
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can FD56-1062-04-04 be shipped?

FD56-1062-04-04 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up FD56-1062-04-04 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for FD56-1062-04-04 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for FD56-1062-04-04, subject to availability and destination.

Danfoss COUPLING,5600,M,1/4,CS,-4NPT,FKM, manufacturer part number FD56-1062-04-04. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146037749
Angle shape	Straight
Body size	1/4
Certifications	ISO 7241-1 Series A
End size 1	-4
End Type 1	Female pipe (NPTF)
Finish plating	Zinc trivalent
Fluid compatibility	Hydraulic fluid
Hex size 1 IN	0.750
Item type	Male half
Latch type	Push/pull
Product material	Carbon steel
Seal material	Fluorocarbon (FKM)
Thread size 1	1/4-18 NPT
Valve type	2 way
Working pressure max psi	5000
Working temperature max F	400
Working temperature min F	-15
