Danfoss FD35-2001-06-06

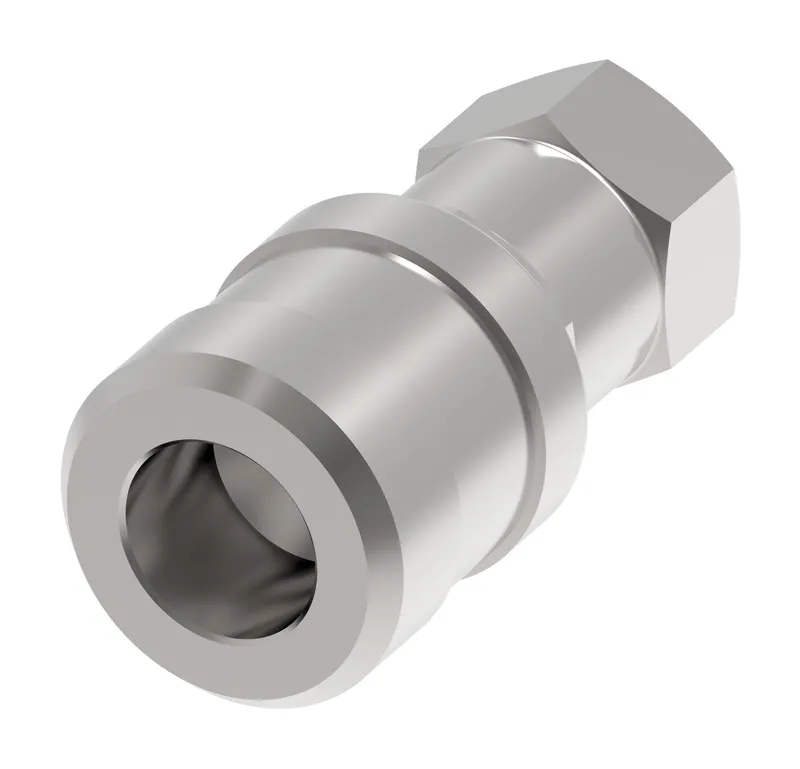

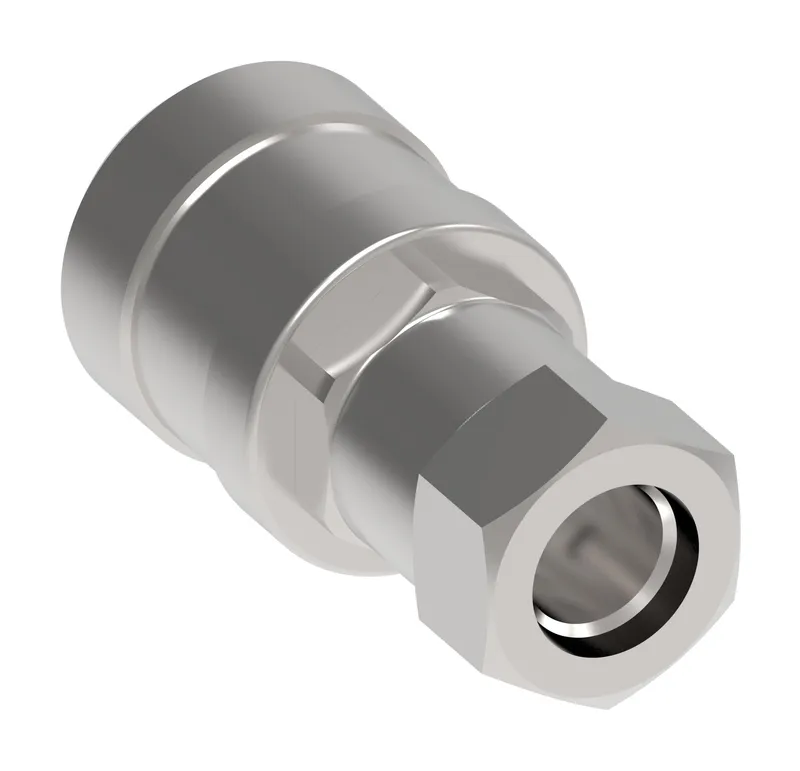

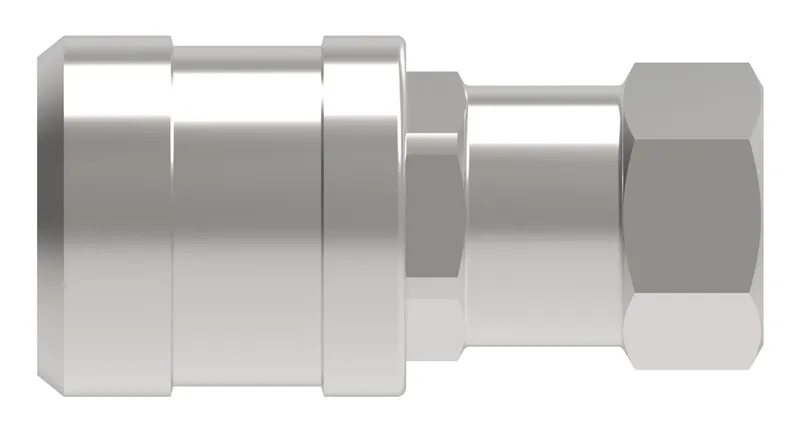

Cplng, FD35 SERIES MALE, STEEL

MPN: FD35-2001-06-06
Category: Danfoss Hansen® quick disconnect couplings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss FD35-2001-06-06?

Danfoss Cplng, FD35 SERIES MALE, STEEL, manufacturer part number FD35-2001-06-06. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146202901
Air inclusion max cc	0.50
Air inclusion max in3	0.03
Angle shape	Straight
Body size	3/8
Brand	Danfoss
Burst pressure min bar	2758
Burst pressure min psi	40000
Connection style	Manual connect
End size 2	9/16"
End Type 1	Female Push to Connect
End Type 2	Female 37 degree swivel
Finish plating	Zinc
Flow rate GPM	2.00
Flow rate LPM	7.57
Fluid compatibility	Oil
Fluid loss cc	0.50000
Fluid loss in3	0.03100
Hex size 1 IN	0.940
Hex size 1 MM	23.876
Item type	Female half
Latch type	Push/pull
Product material	Carbon steel
Safety locking mechanism	Sleeve lock
Sub brand	Hansen
Working pressure max psi	10000
Working pressure max BAR	689.00
Working temperature max C	121
Working temperature max F	250
Working temperature min C	-34
Working temperature min F	-30
