Danfoss FD35-1020-06

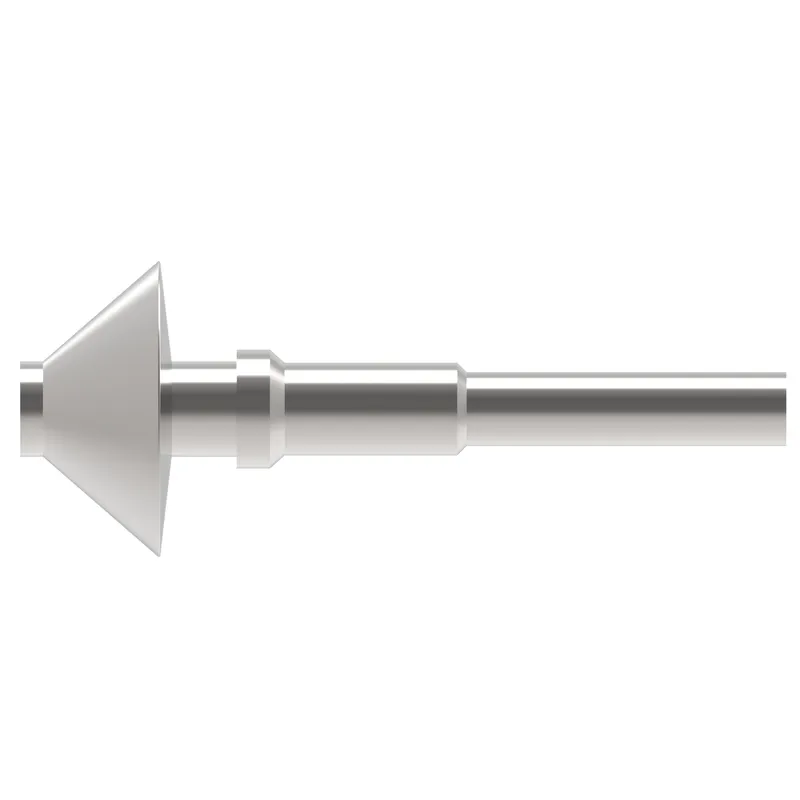

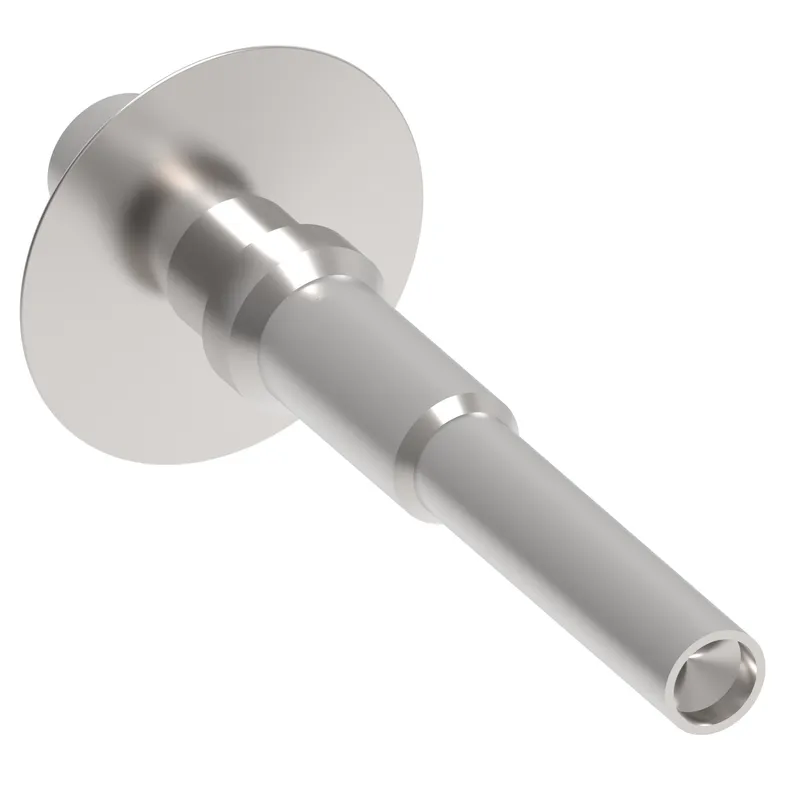

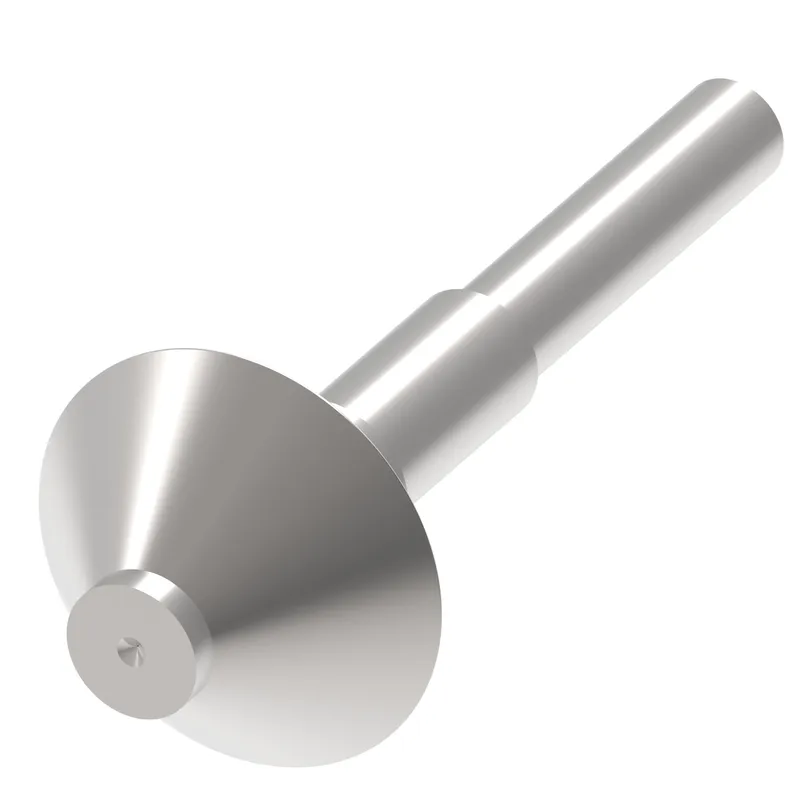

Cplng, arc latch, compon poppet valve

MPN: FD35-1020-06
Category: Danfoss Hansen® quick disconnect couplings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss FD35-1020-06?

Danfoss Cplng, arc latch, compon poppet valve, manufacturer part number FD35-1020-06. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146108616
Air inclusion max cc	0.50
Air inclusion max in3	0.03
Angle shape	Straight
Body size	3/8
Brand	Danfoss
Burst pressure min bar	2758
Burst pressure min psi	40000
Connection style	Manual connect
Flow rate GPM	2.00
Flow rate LPM	7.57
Fluid compatibility	Oil
Fluid loss cc	0.50000
Fluid loss in3	0.03100
Item type	Component
Product material	Stainless steel
Sub brand	Hansen
Working pressure max psi	10000
Working pressure max BAR	689.00
Working temperature max C	121
Working temperature max F	250
Working temperature min C	-34
Working temperature min F	-30

FD35-1020-06: frequently asked questions

When can FD35-1020-06 be shipped?

FD35-1020-06 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up FD35-1020-06 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for FD35-1020-06 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for FD35-1020-06, subject to availability and destination.
