Danfoss FCU0410

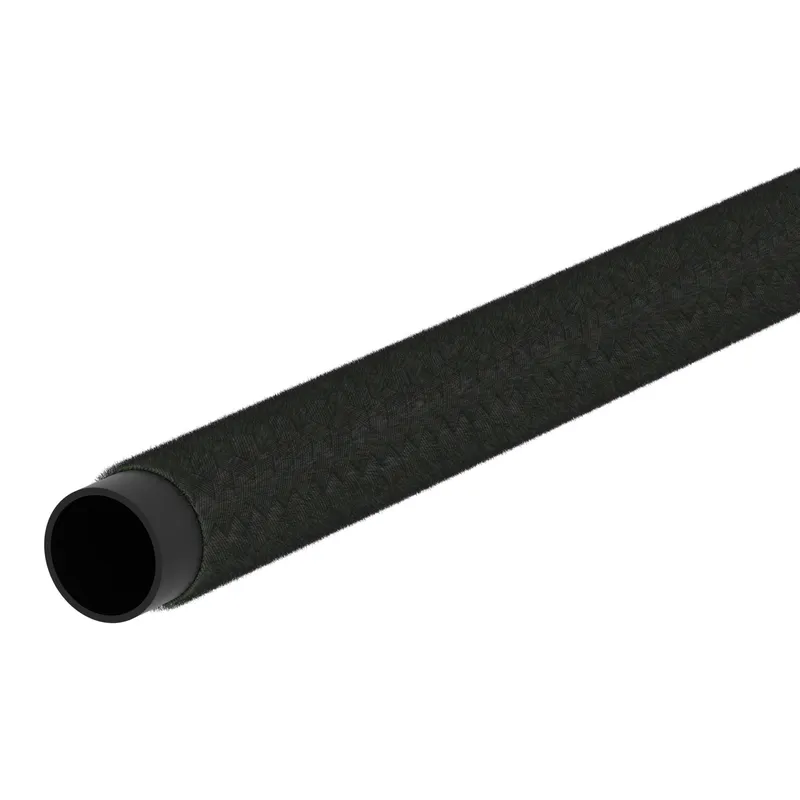

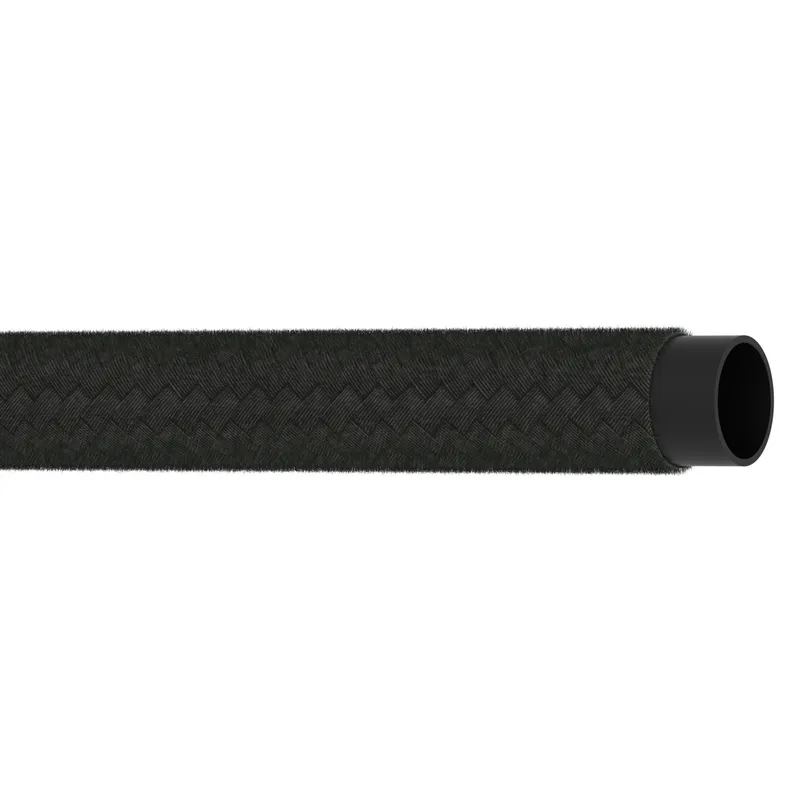

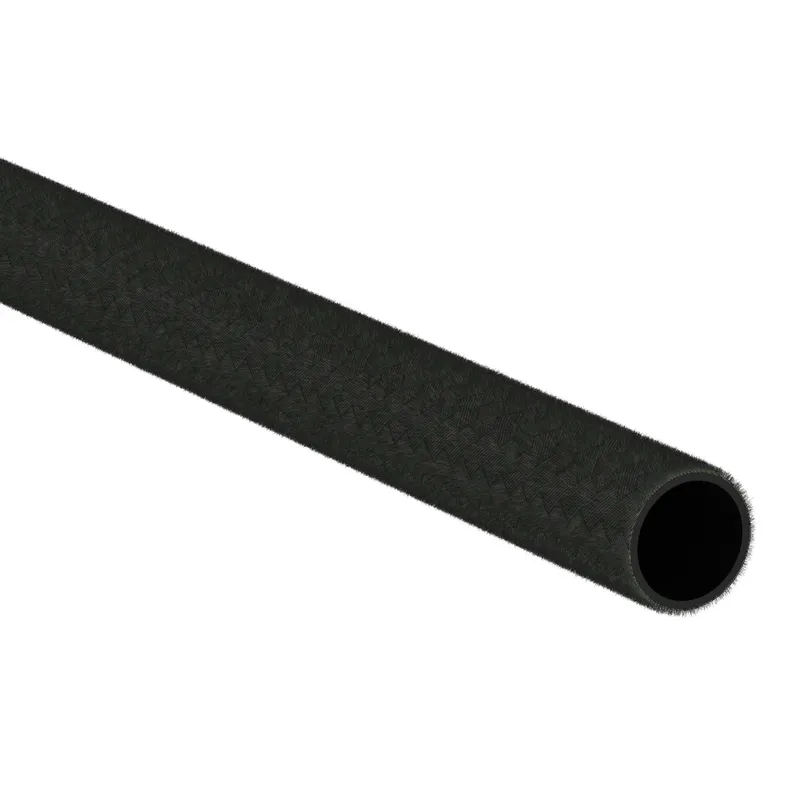

HOSE-AER, FCU, -4, 10FT, RL, FUEL,GY

MPN
FCU0410
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss FCU0410?

Danfoss HOSE-AER, FCU, -4, 10FT, RL, FUEL,GY, manufacturer part number FCU0410. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

EAN/UPC678146009180
Abrasion resistancePremium
ApplicationVehicle air brake lines
Bend radius min (inch)2.000
Bend radius min (mm)50.800
BrandAeroquip by Danfoss
Burst pressure (bar)140
Burst pressure (psi)2000
ColorBlack
CompliancesASTM D380
ConductivityConductive
Construction2 Ply braid
Cover materialPolyester (PET)
Inside diameter (inch)0.22
Inside diameter (mm)5.60
Length (in)120.00000
Length (mm)3048.00000
Outside diameter (inch)0.42
Outside diameter (mm)10.67
Package formReel
Product height in0.220
Product height mm5.600
Product width in0.220
Product width mm5.600 mm
Qualified hose fittingsReusable
Reinforcement materialFabric
SeriesFCU Series
Size-4
Tube materialChlorinated Polyethylene (CPE)
Vacuum rating (inHg)20
Vacuum rating (mmHg)508.00
Working pressure max (bar)35
Working pressure max (psi)500
Working temperature max (C)149
Working temperature max (F)300.0
Working temperature min (C)-43
Working temperature min (F)-45.0

FCU0410: frequently asked questions

When can FCU0410 be shipped?

FCU0410 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up FCU0410 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for FCU0410 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for FCU0410, subject to availability and destination.
