Danfoss FCA2015

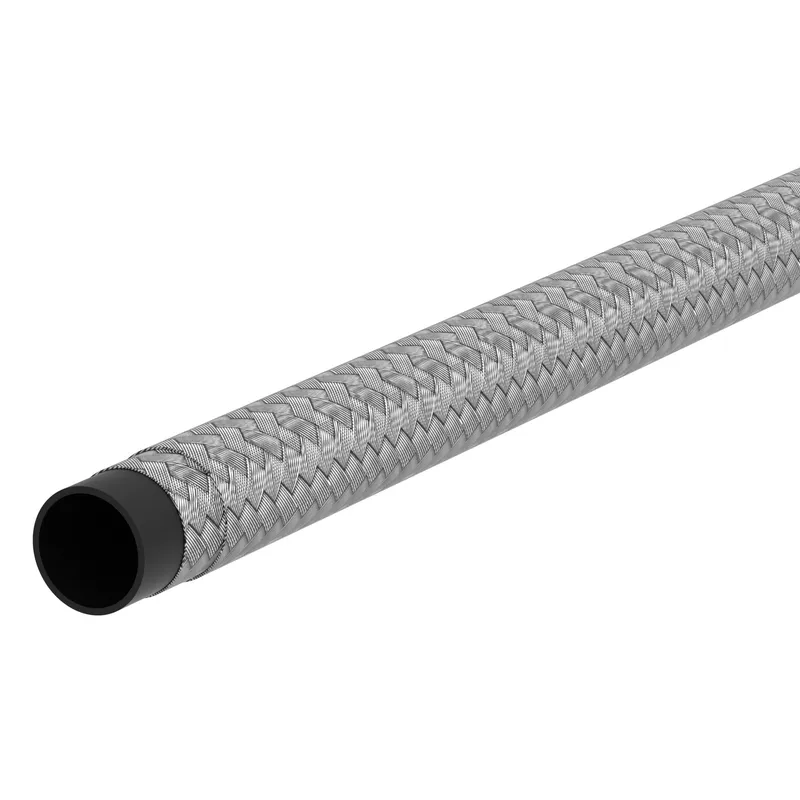

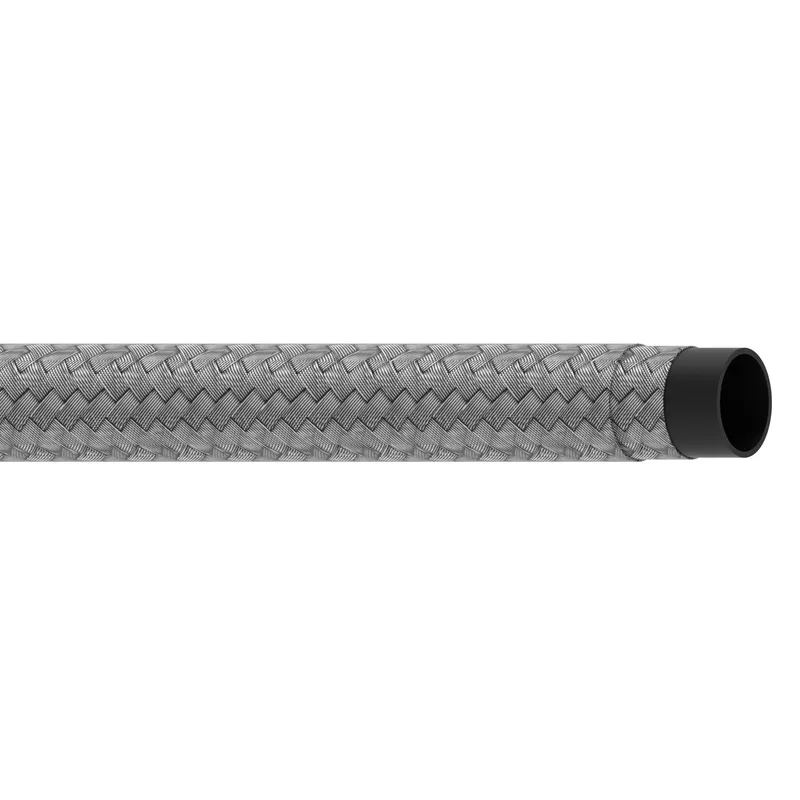

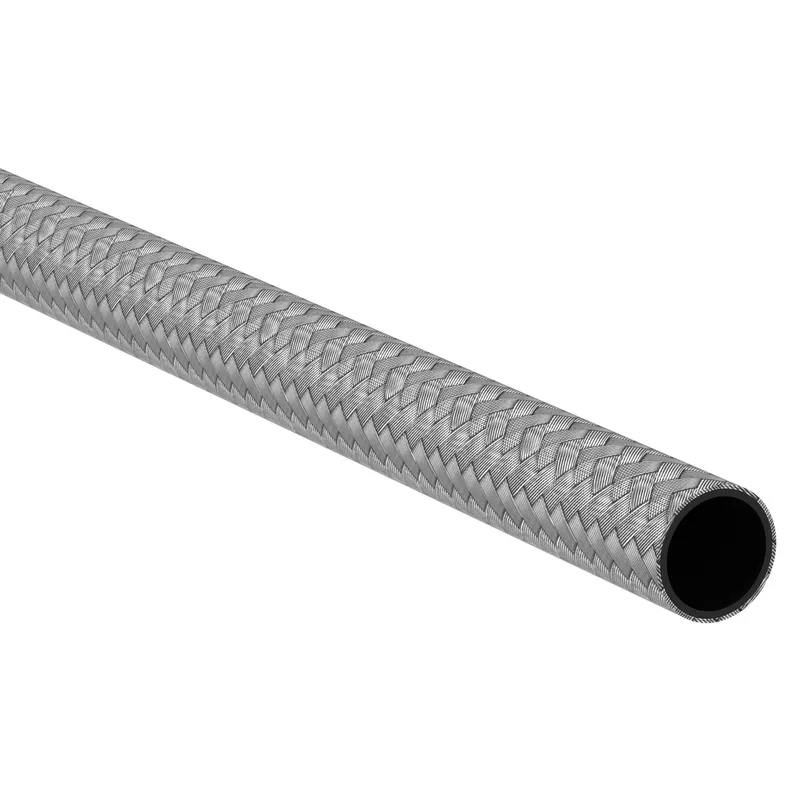

HOSE-AER, FCA, -20, 15FT, RL, FUEL,GY

MPN: FCA2015
Category: Aeroquip performance products

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss FCA2015?

Danfoss HOSE-AER, FCA, -20, 15FT, RL, FUEL,GY, manufacturer part number FCA2015. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146000392
Abrasion resistance	Premium
Application	Air
Bend radius min (inch)	8.000
Bend radius min (mm)	203.200
Brand	Aeroquip by Danfoss
Burst pressure (bar)	138
Burst pressure (psi)	2000
Color	Stainless steel
Compliances	ASTM D380
Conductivity	Conductive
Construction	2 Wire Braid
Cover material	Stainless steel
Inside diameter (inch)	1.13
Inside diameter (mm)	28.60
Lay line style	Ink transfer
Length (in)	180.00000
Length (mm)	4572.00000
Outside diameter (inch)	1.44
Outside diameter (mm)	36.45
Package form	Reel
Product height in	1.125
Product height mm	28.600
Product width in	1.125
Product width mm	28.600 mm
Qualified hose fittings	Reusable
Reinforcement material	Brass plated steel wire
Series	FCA Series
Size	-20
Tube material	Chlorinated Polyethylene (CPE)
Tube wall thickness (inch)	0.31
Tube wall thickness (mm)	7.87
Vacuum rating (inHg)	20
Vacuum rating (mmHg)	508.00
Working pressure max (bar)	35
Working pressure max (psi)	500
Working temperature max (C)	149
Working temperature max (F)	300.0
Working temperature min (C)	-48
Working temperature min (F)	-55.0

FCA2015: frequently asked questions

When can FCA2015 be shipped?

FCA2015 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up FCA2015 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for FCA2015 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for FCA2015, subject to availability and destination.
