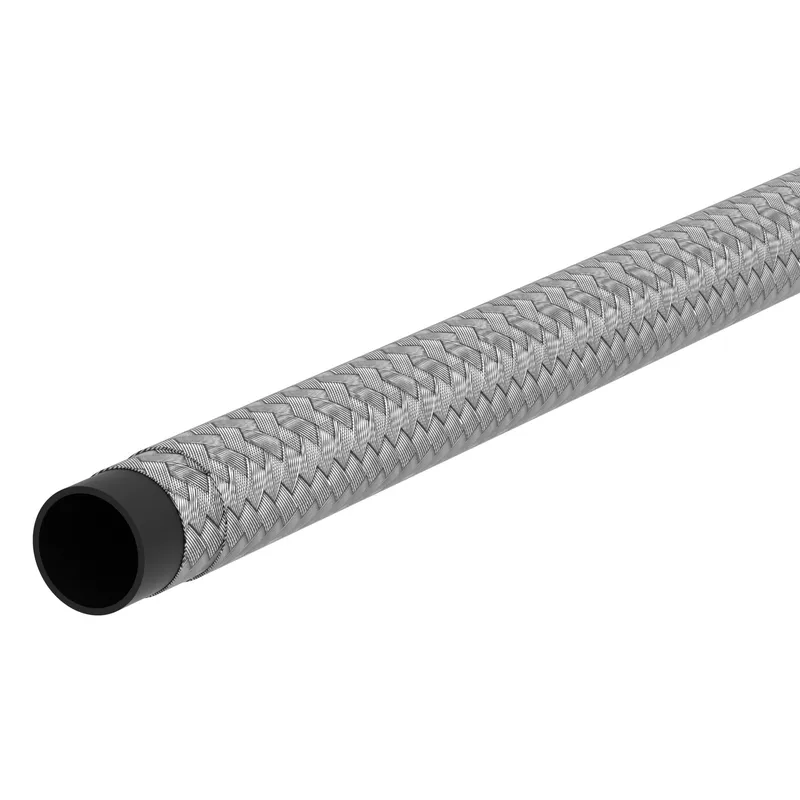

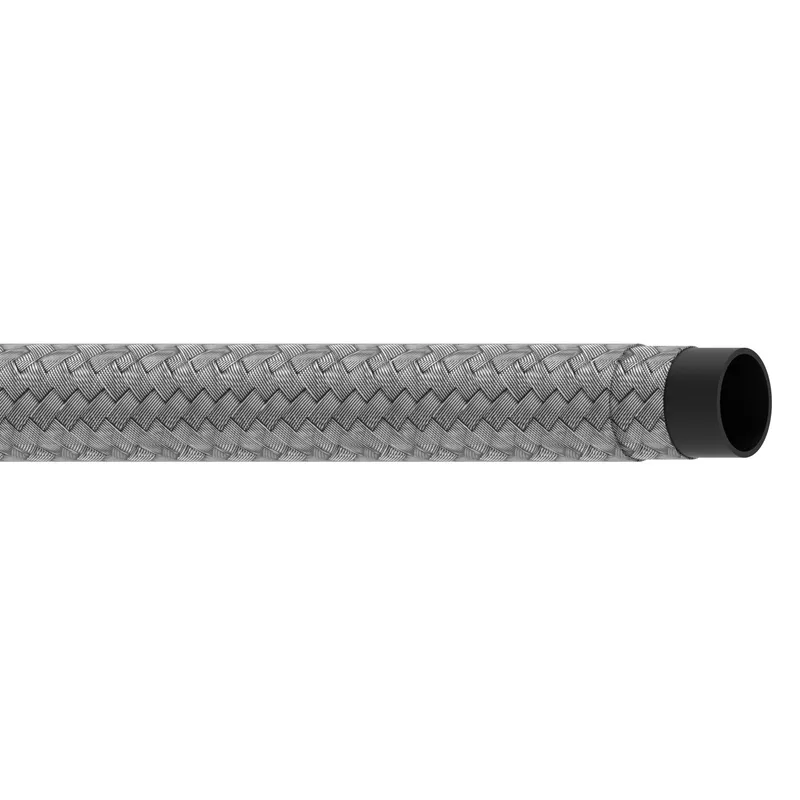

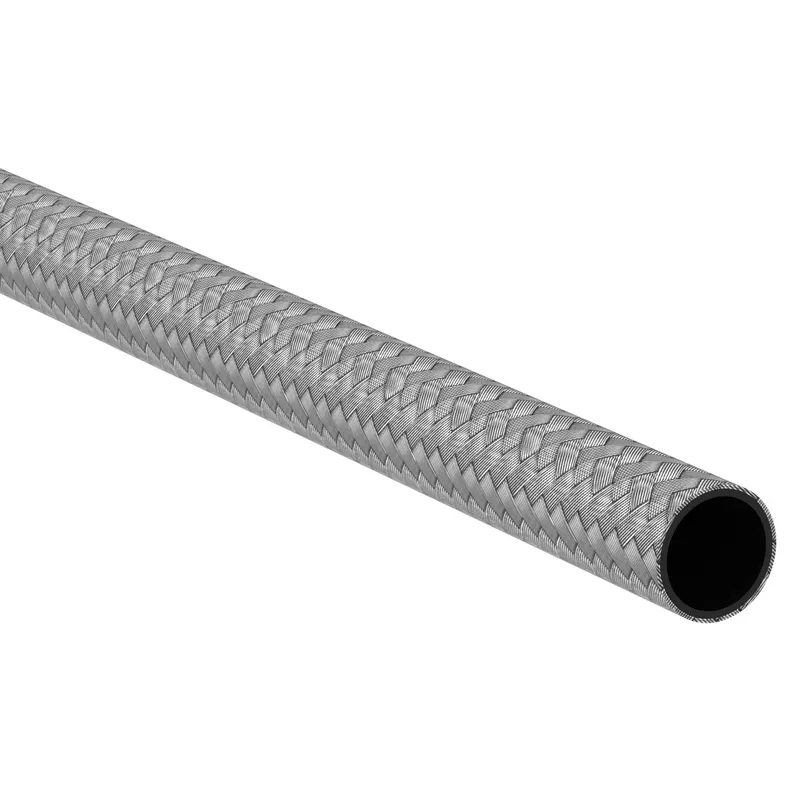

Danfoss FCA0403

HOSE-AER, FCA, -4, 3FT, RL, FUEL,GY

MPN: FCA0403
Category: Aeroquip performance products

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss FCA0403?

Danfoss HOSE-AER, FCA, -4, 3FT, RL, FUEL,GY, manufacturer part number FCA0403. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146041081
Abrasion resistance	Premium
Application	Air
Bend radius min (inch)	2.000
Bend radius min (mm)	50.800
Brand	Aeroquip by Danfoss
Burst pressure (bar)	414
Burst pressure (psi)	6000
Color	Stainless steel
Compliances	ASTM D380
Conductivity	Conductive
Construction	2 Wire Braid
Cover material	Stainless steel
Inside diameter (inch)	0.22
Inside diameter (mm)	5.60
Lay line style	Ink transfer
Length (in)	36.00000
Length (mm)	914.40000
Outside diameter (inch)	0.45
Outside diameter (mm)	11.43
Package form	Reel
Product height in	0.219
Product height mm	5.600
Product width in	0.219
Product width mm	5.600 mm
Qualified hose fittings	Reusable
Reinforcement material	Brass plated steel wire
Series	FCA Series
Size	-4
Tube material	Chlorinated Polyethylene (CPE)
Vacuum rating (inHg)	20
Vacuum rating (mmHg)	508.00
Working pressure max (bar)	69
Working pressure max (psi)	1000
Working temperature max (C)	149
Working temperature max (F)	300.0
Working temperature min (C)	-48
Working temperature min (F)	-55.0
