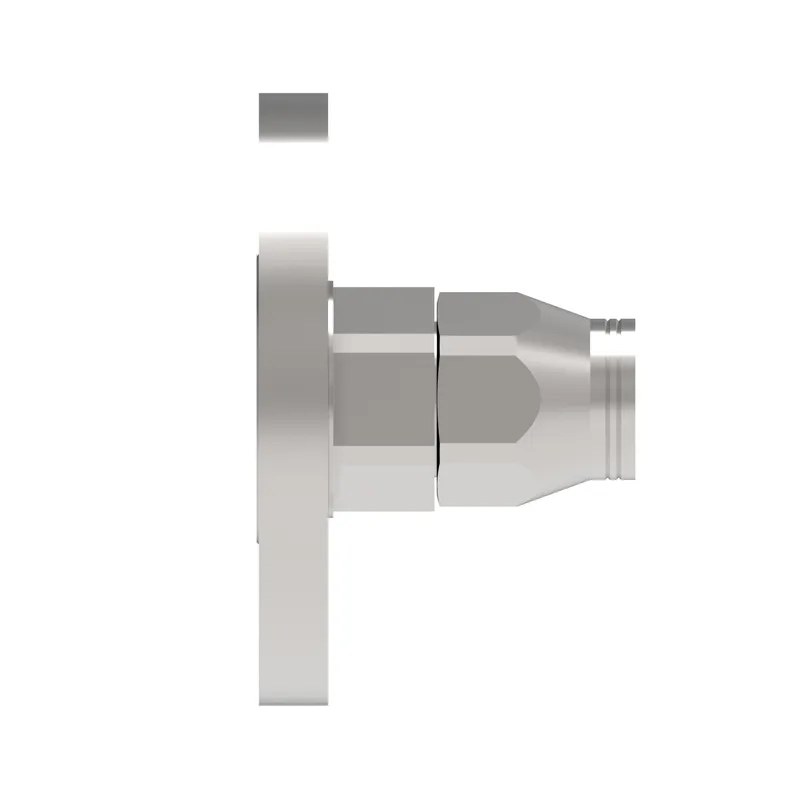

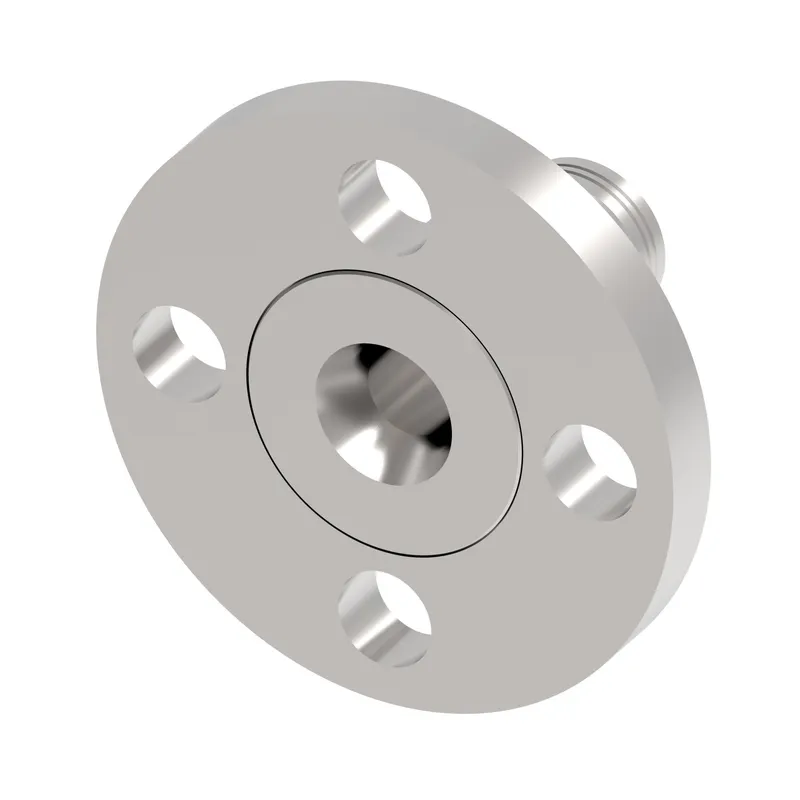

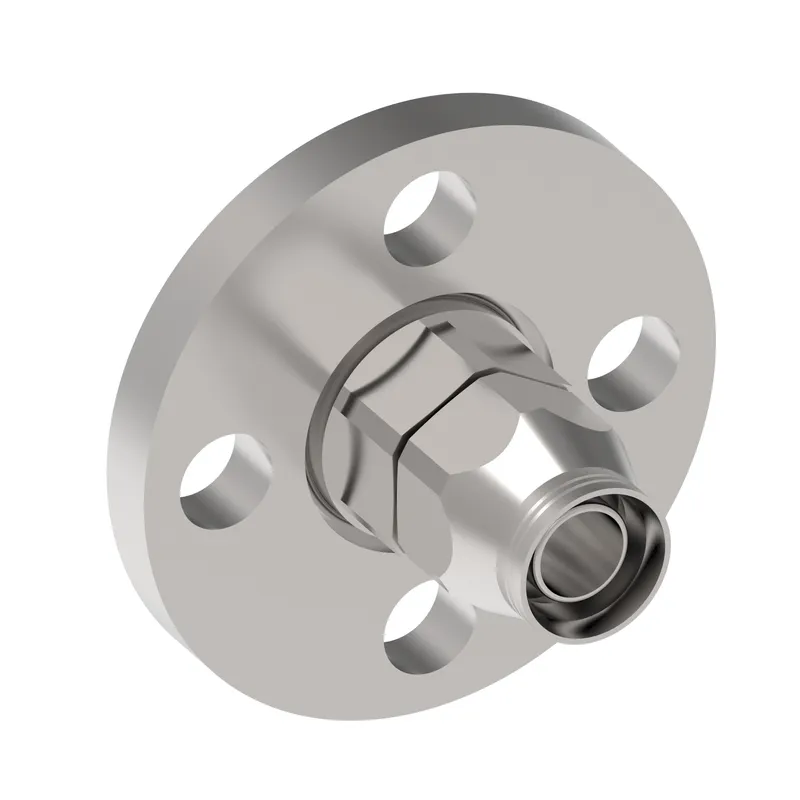

Danfoss FC7862-3224-228

HOSE FTG, FC/24, FLG-CIR/32, AN, STR

MPN
FC7862-3224-228
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss FC7862-3224-228?

Danfoss HOSE FTG, FC/24, FLG-CIR/32, AN, STR, manufacturer part number FC7862-3224-228. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A dimension IN2.910
A dimension MM73.914
Angle shapeStraight
Compatible hose ID IN1.500
Compatible hose ID MM38.100
Compatible hoses2808
Construction StyleReusable
End size 1-32
Finish platingPassivate
Hex size 1 IN2.120
Hex size 1 MM53.848
Hex size 2 IN2.125
Hex size 2 MM54.000
Hose cut off factor IN1.940
Hose cut off factor MM49.276
Hose size-24
Inside diameter IN1.280
Inside diameter MM32.512
Product height in6.000
Product height mm152.400
Product length in2.910
Product length mm73.914
Product material304 Stainless steel
Product width in6.000
Product width mm152.400 mm
Reusable socket hex MM57.000
Thread sealantNo

FC7862-3224-228: frequently asked questions

When can FC7862-3224-228 be shipped?

FC7862-3224-228 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up FC7862-3224-228 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for FC7862-3224-228 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for FC7862-3224-228, subject to availability and destination.
