Danfoss FC693-04

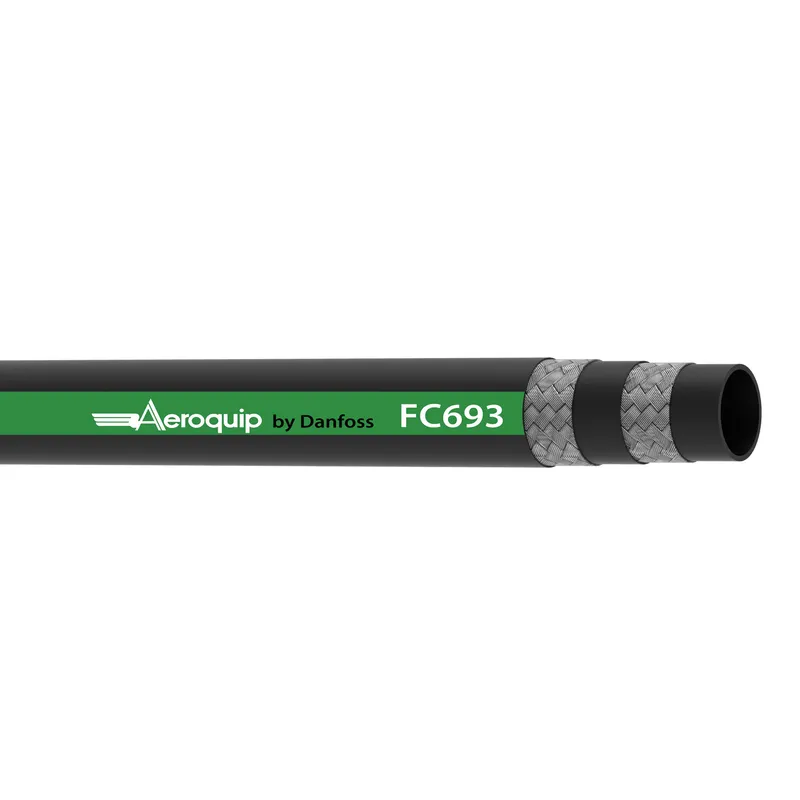

HOSE-AER, FC693, -4, R2/2SC

MPN: FC693-04
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss FC693-04?

Danfoss HOSE-AER, FC693, -4, R2/2SC, manufacturer part number FC693-04. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146145734
Abrasion resistance	Standard
Application	Phosphate ester based fluids
Bend radius min (inch)	4.000
Bend radius min (mm)	102.000
Brand	Aeroquip by Danfoss
Burst pressure (bar)	1380
Burst pressure (psi)	20000
Color	Black
Conductivity	Conductive
Construction	2 Wire Braid
Cover material	EPDM
Impulse cycle (cycles)	200000
Inside diameter (inch)	0.25
Inside diameter (mm)	6.40
Lay line style	Ink transfer
Outside diameter (inch)	0.59
Outside diameter (mm)	15.10
Package form	Bulk
Product height in	0.250
Product height mm	6.400
Product width in	0.250
Product width mm	6.4
Qualified hose fittings	1A/Z Series
Reinforcement material	Brass plated steel wire
Series	FC693 Series
Size	-4
Tube material	EPDM
Working pressure max (bar)	345
Working pressure max (psi)	5000
Working temperature max (C)	79
Working temperature max (F)	175.0
Working temperature min (C)	-40
Working temperature min (F)	-40.0
