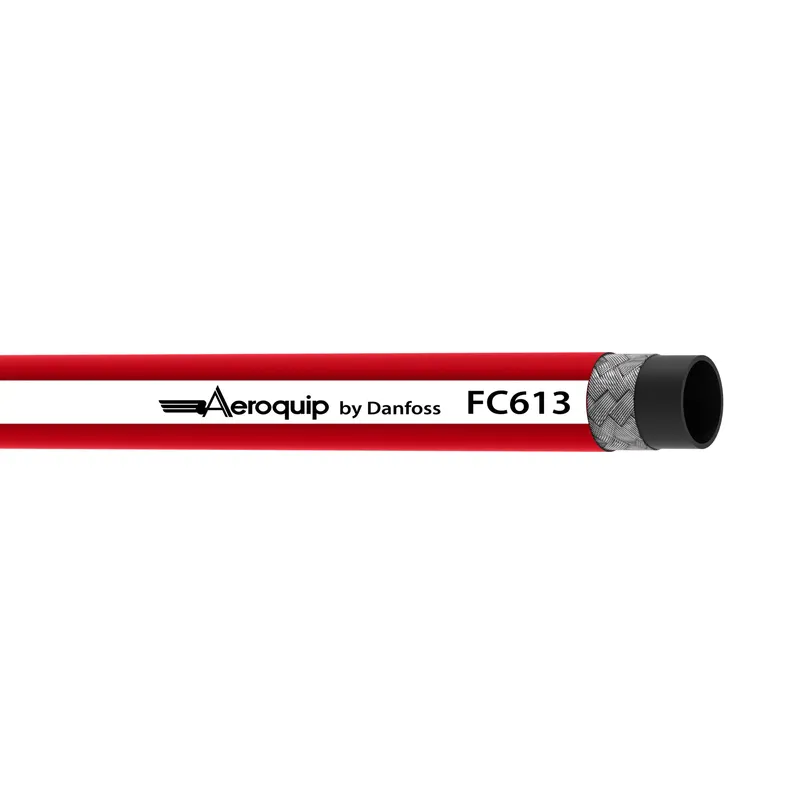

Danfoss FC613-16RL

HOSE-AER, FC613, -16, RL, R1/1SN

MPN: FC613-16RL
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss FC613-16RL?

Danfoss HOSE-AER, FC613, -16, RL, R1/1SN, manufacturer part number FC613-16RL. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146213884
Abrasion resistance	Standard
Application	Crude oil
Bend radius min (inch)	12.000
Bend radius min (mm)	305.000
Brand	Aeroquip by Danfoss
Burst pressure (bar)	280
Burst pressure (psi)	4000
Color	Black
Compliances	ASTM D471
Conductivity	Conductive
Construction	1 Wire Braid
Cover material	Chloroprene (CR)
Impulse cycle (cycles)	150000
Inside diameter (inch)	1.00
Inside diameter (mm)	25.40
Lay line style	Ink transfer
Outside diameter (inch)	1.41
Outside diameter (mm)	35.81
Package form	Reel
Product height in	1.000
Product height mm	25.400
Product width in	1.000
Product width mm	25.4
Reinforcement material	Brass plated steel wire
Series	FC613 Series
Size	-16
Tube material	Nitrile (NBR)
Working pressure max (bar)	70
Working pressure max (psi)	1000
Working temperature max (C)	100
Working temperature max (F)	212.0
Working temperature min (C)	-40
Working temperature min (F)	-40.0
