Danfoss FC510-08RL

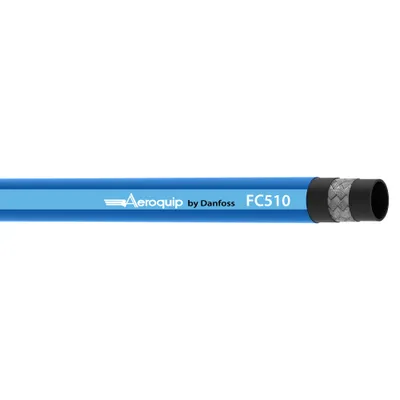

HOSE-AER, FC510, -8, RL, EN857-1S,BU

MPN: FC510-08RL
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss FC510-08RL?

Danfoss HOSE-AER, FC510, -8, RL, EN857-1S,BU, manufacturer part number FC510-08RL. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146076991
Abrasion resistance	Standard
Application	Industrial Systems
Bend radius min (inch)	5.000
Bend radius min (mm)	127.000
Brand	Aeroquip by Danfoss
Burst pressure (bar)	960
Burst pressure (psi)	13920
Certifications	USCG
Color	Blue
Compliances	SAE 100R2AT
Conditional temp range	-40F to 200F phosphate-ester
Conductivity	Conductive
Construction	1 Wire Braid
Cover material	Chlorinated Polyethylene (CPE)
Impulse cycle (cycles)	200000
Inside diameter (inch)	0.50
Inside diameter (mm)	12.70
Lay line style	Ink transfer
Outside diameter (inch)	0.80
Outside diameter (mm)	20.20
Package form	Reel
Product height in	0.500
Product height mm	12.700
Product width in	0.500
Product width mm	12.7
Qualified hose fittings	TTC/Z Series
Reinforcement material	Brass plated steel wire
Series	FC510 Series
Size	-8
Tube material	Chlorinated Polyethylene (CPE)
Working pressure max (bar)	240
Working pressure max (psi)	3500
Working temperature max (C)	149
Working temperature max (F)	300.0
Working temperature min (C)	-40
Working temperature min (F)	-40.0
