Danfoss FC498-12RL

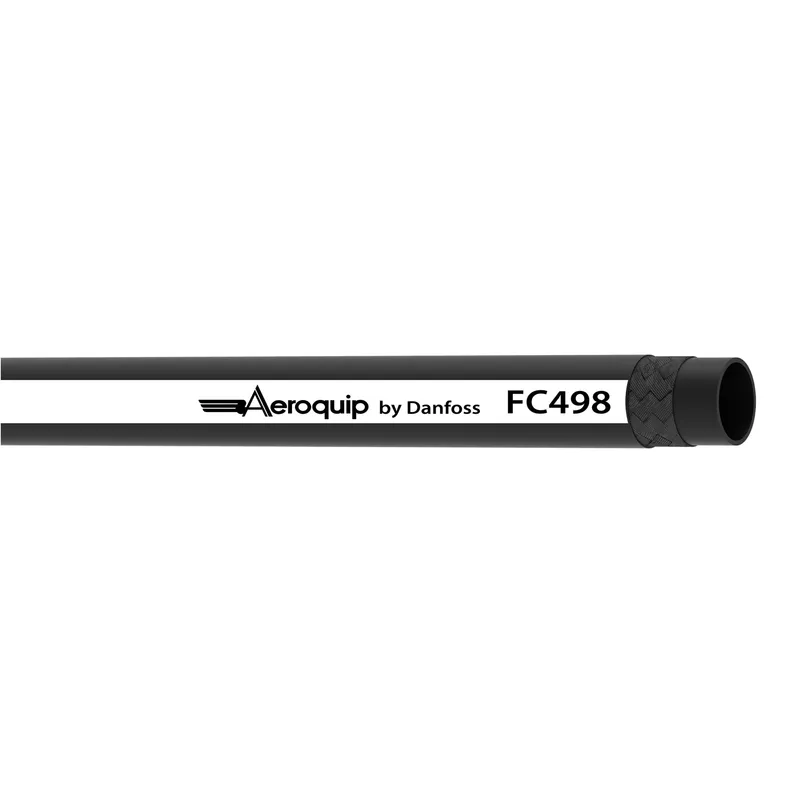

HOSE-AER, FC498, -12, RL, R6,BU

MPN: FC498-12RL
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss FC498-12RL?

Danfoss HOSE-AER, FC498, -12, RL, R6,BU, manufacturer part number FC498-12RL. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146072818
Abrasion resistance	Standard
Application	Oil return line
Bend radius min (inch)	6.000
Bend radius min (mm)	152.000
Brand	Aeroquip by Danfoss
Burst pressure (bar)	98
Burst pressure (psi)	1400
Color	Blue
Compliances	EN854 Type R6
Conductivity	Conductive
Construction	1 Ply braid
Cover material	Chlorinated Polyethylene (CPE)
Impulse cycle (cycles)	150000
Inside diameter (inch)	0.75
Inside diameter (mm)	19.00
Lay line style	Ink jet
Outside diameter (inch)	1.03
Outside diameter (mm)	26.20
Package form	Reel
Product height in	0.750
Product height mm	19.000
Product width in	0.750
Product width mm	19
Qualified hose fittings	Socketless
Reinforcement material	Fiber
Series	FC498 Series
Size	-12
Tube material	Chlorinated Polyethylene (CPE)
Vacuum rating (inHg)	24
Vacuum rating (mmHg)	609.60
Working pressure max (bar)	24
Working pressure max (psi)	350
Working temperature max (C)	150
Working temperature max (F)	302.0
Working temperature min (C)	-40
Working temperature min (F)	-40.0
