Danfoss FC498-06-00027

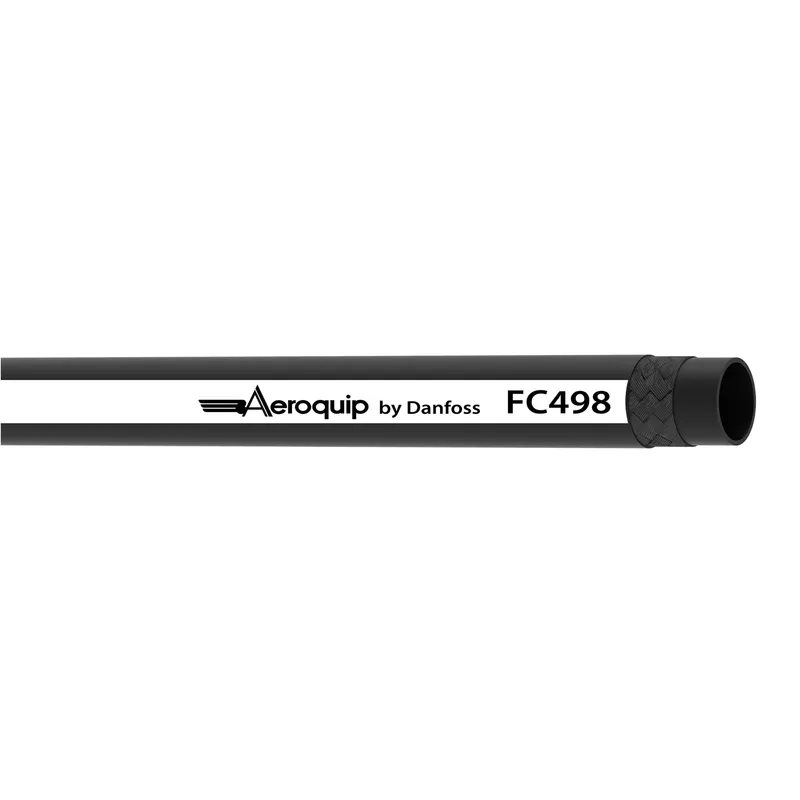

HOSE-AER, FC498, -6, 2.86IN, CL, R6,BU

MPN: FC498-06-00027
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss FC498-06-00027?

Danfoss HOSE-AER, FC498, -6, 2.86IN, CL, R6,BU, manufacturer part number FC498-06-00027. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146082558
Abrasion resistance	Standard
Application	Oil return line
Bend radius min (inch)	3.000
Bend radius min (mm)	76.000
Brand	Aeroquip by Danfoss
Burst pressure (bar)	110
Burst pressure (psi)	1600
Certifications	MSHA Approved
Color	Blue
Compliances	EN854 Type R6
Conductivity	Conductive
Construction	1 Ply braid
Cover material	Chlorinated Polyethylene (CPE)
Impulse cycle (cycles)	150000
Inside diameter (inch)	0.38
Inside diameter (mm)	9.53
Lay line style	Ink jet
Length (in)	2.86000
Length (mm)	72.64400
Outside diameter (inch)	0.62
Outside diameter (mm)	15.70
Package form	Cut length
Product height in	0.380
Product height mm	9.530
Product width in	0.380
Product width mm	9.53
Qualified hose fittings	Socketless
Reinforcement material	Fiber
Series	FC498 Series
Size	-6
Tube material	Chlorinated Polyethylene (CPE)
Vacuum rating (inHg)	28
Vacuum rating (mmHg)	711.20
Working pressure max (bar)	28
Working pressure max (psi)	400
Working temperature max (C)	150
Working temperature max (F)	302.0
Working temperature min (C)	-40
Working temperature min (F)	-40.0

FC498-06-00027: frequently asked questions

When can FC498-06-00027 be shipped?

FC498-06-00027 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up FC498-06-00027 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for FC498-06-00027 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for FC498-06-00027, subject to availability and destination.
