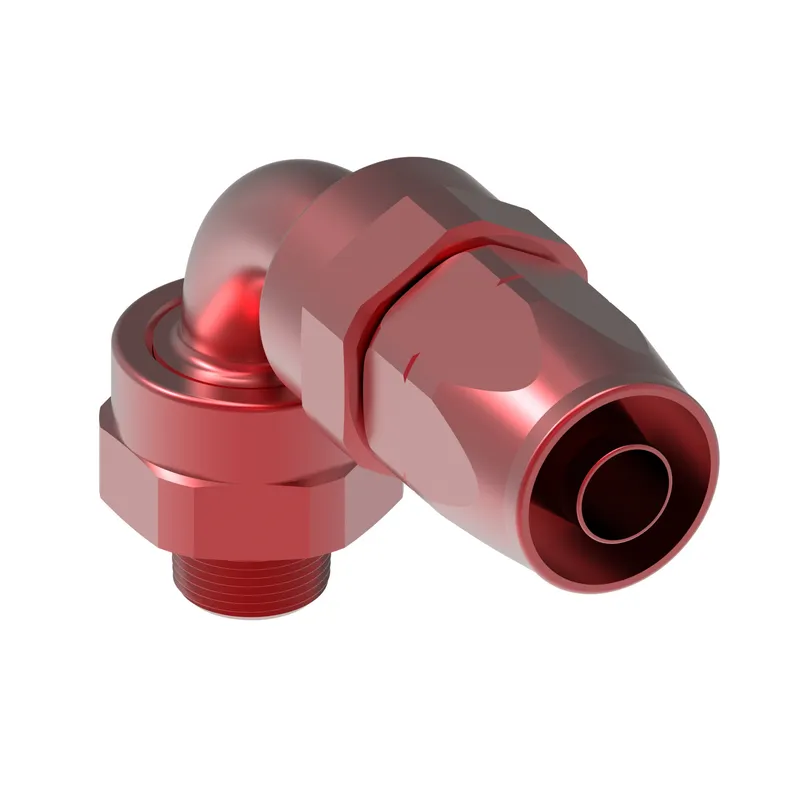

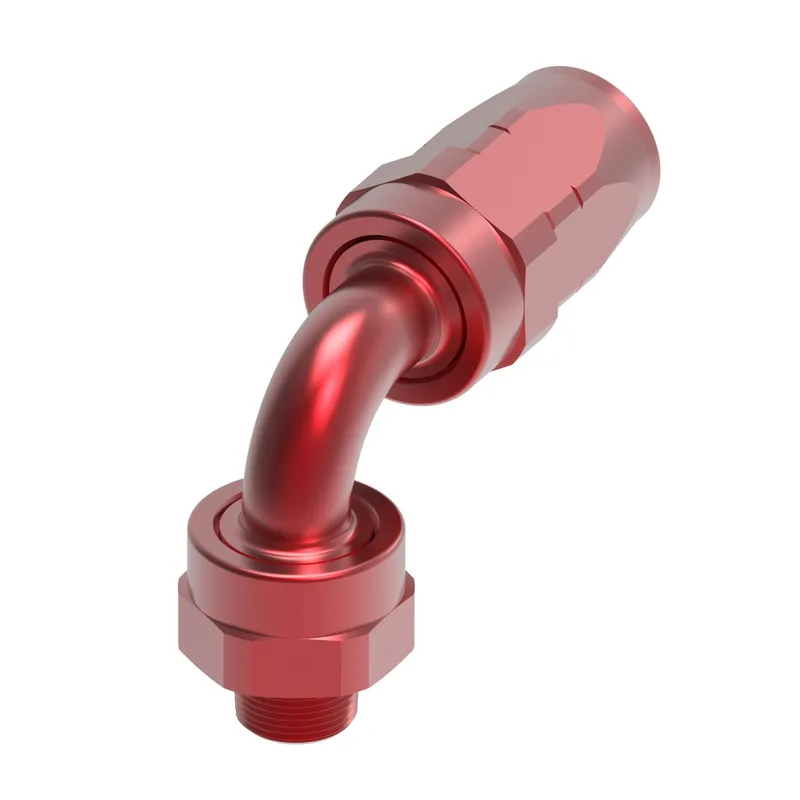

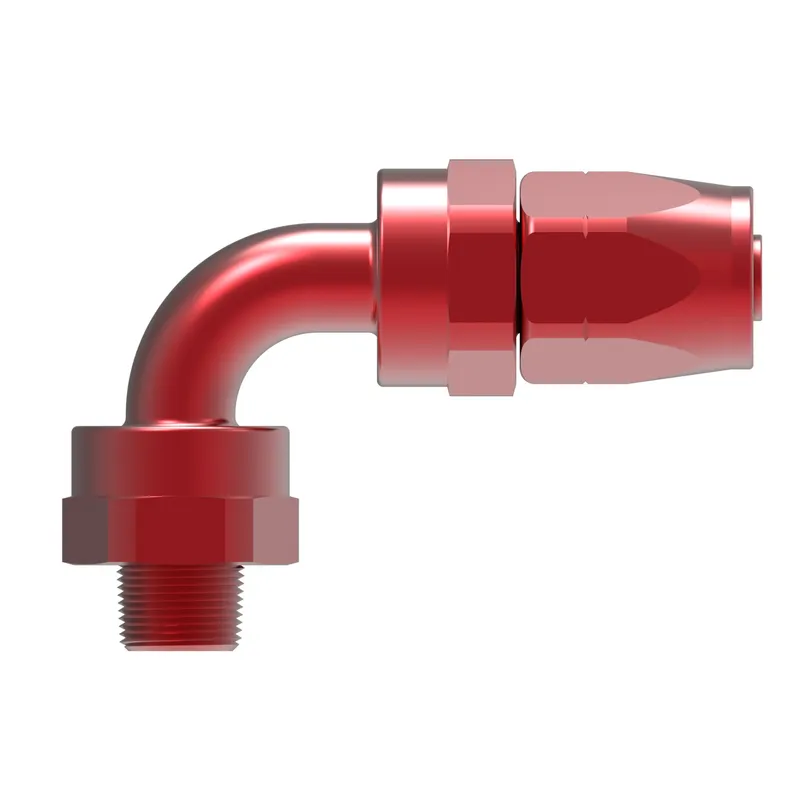

Danfoss FBM1343

REUSABLE 90 DEGREE MP Direct Port Ftng

MPN
FBM1343
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss FBM1343?

Danfoss REUSABLE 90 DEGREE MP Direct Port Ftng, manufacturer part number FBM1343. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

EAN/UPC678146089397
Angle shape90 Degree
BrandAeroquip Performance Danfoss
Compatible hose ID IN0.375
Compatible hose ID MM9.525
Compatible hosesFBA
Construction StyleReusable
Drop dimension IN1.760
Drop dimension MM44.7
End size 1-6
End type 1Male pipe (NPTF)
Finish platingAnodized
Hex size 1 IN0.750
Hex size 1 MM19.1
Hex size 2 IN0.750
Hex size 2 MM19.1
Hose cut off factor IN1.680
Hose cut off factor MM42.672
Hose size-6
Inside diameter IN0.230
Inside diameter MM5.842
Product materialAluminum
Thread sealantNo

FBM1343: frequently asked questions

When can FBM1343 be shipped?

FBM1343 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up FBM1343 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for FBM1343 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for FBM1343, subject to availability and destination.
