Danfoss FBM1024

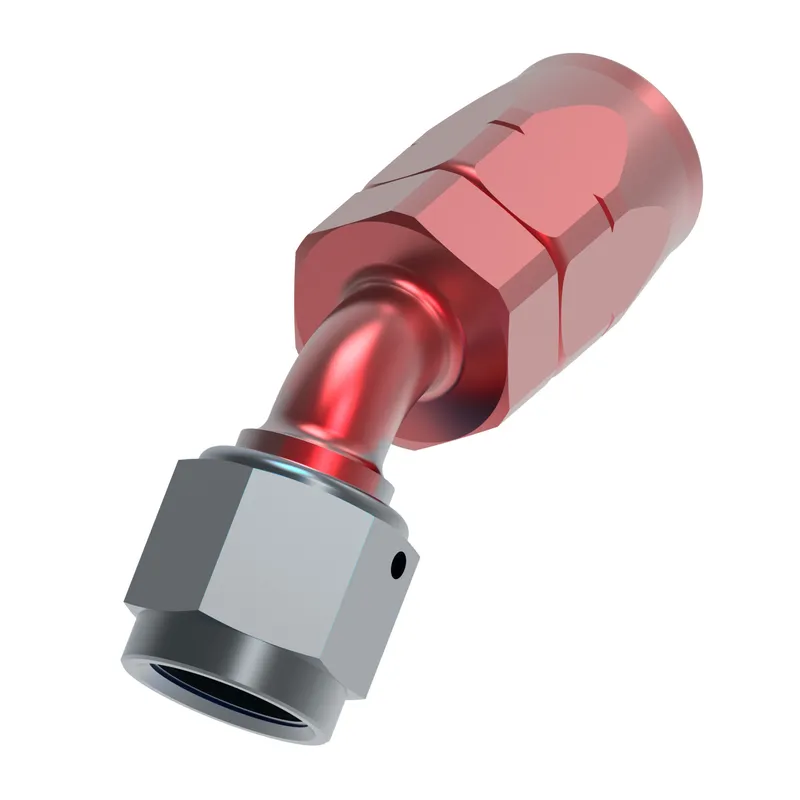

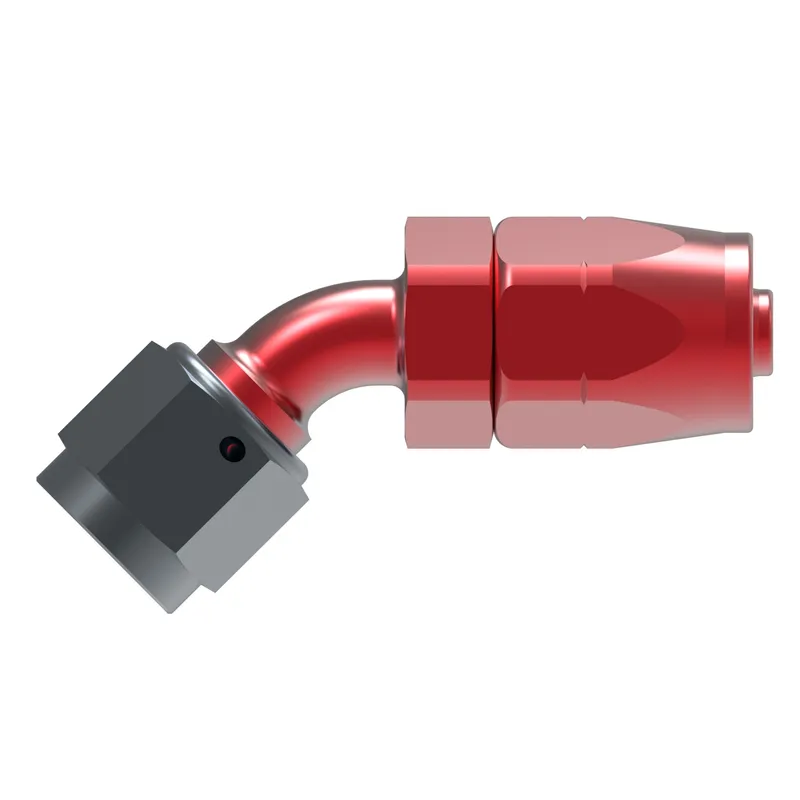

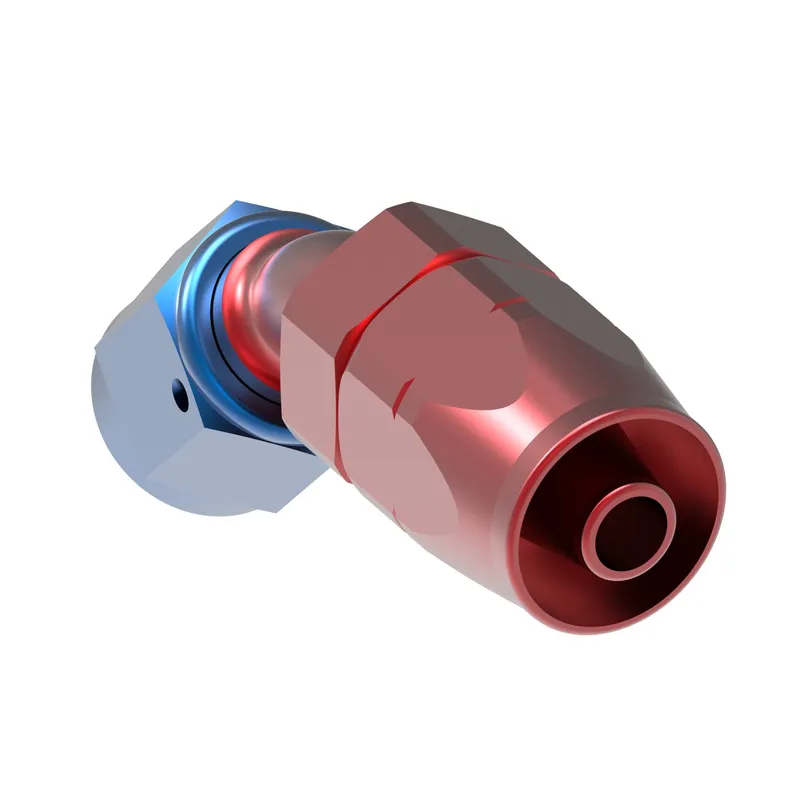

HOSE FTG, SR/10, JIC-F/10, D, 45D

MPN
FBM1024
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss FBM1024?

Danfoss HOSE FTG, SR/10, JIC-F/10, D, 45D, manufacturer part number FBM1024. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

EAN/UPC678146088437
A dimension IN2.460
A dimension MM66.900
Angle shape45 Degree
Compatible hose ID IN0.625
Compatible hose ID MM15.875
Compatible hosesFBA
Construction StyleReusable
Drop dimension IN0.670
Drop dimension MM17.00
End size 1-10
End type 1Female 37 degree swivel
Finish platingAnodized
Hex size 1 IN0.984
Hex size 1 MM25.000
Hex size 2 IN0.813
Hex size 2 MM20.000
Hose cut off factor IN0.929
Hose cut off factor MM23.600
Hose size-10
Inside diameter IN0.470
Inside diameter MM11.800
Product height in2.320
Product height mm58.928
Product length in3.760
Product length mm95.504
Product materialAluminum
Product width in1.062
Product width mm26.987 mm
Thread sealantNo
Thread size 17/8-14 UNF

FBM1024: frequently asked questions

When can FBM1024 be shipped?

FBM1024 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up FBM1024 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for FBM1024 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for FBM1024, subject to availability and destination.
