Danfoss FBL1534

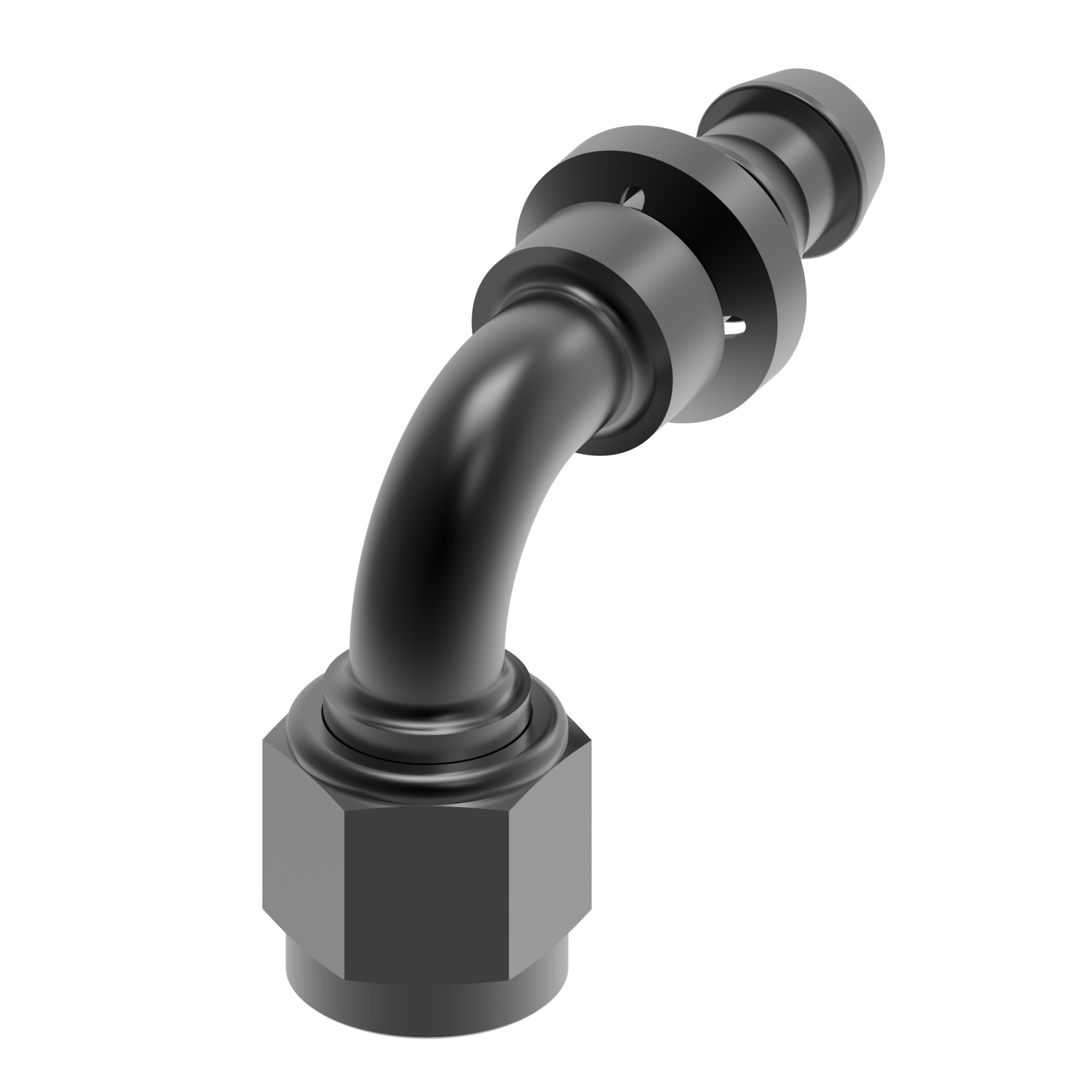

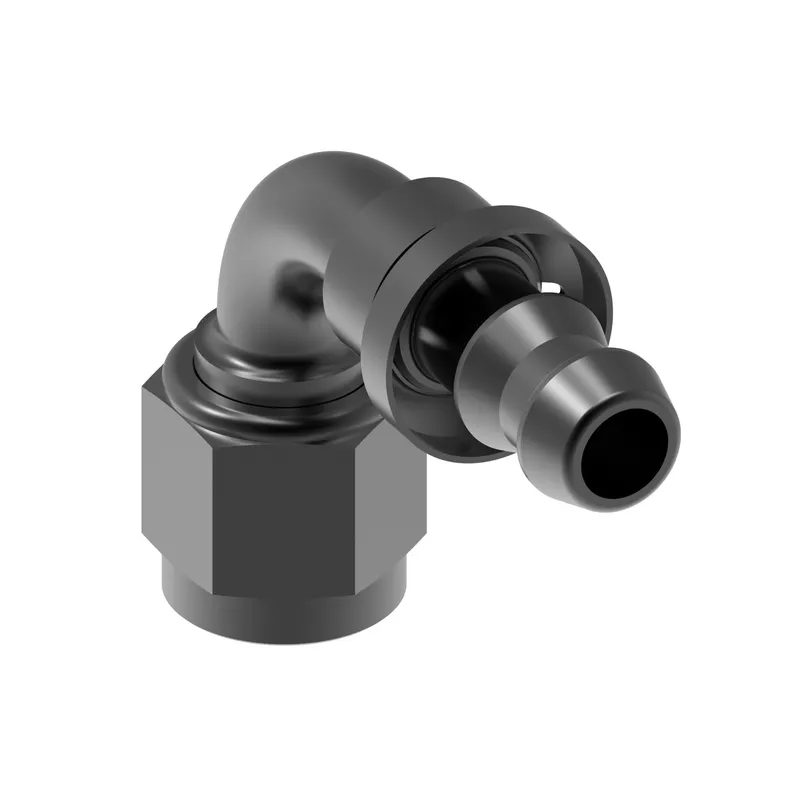

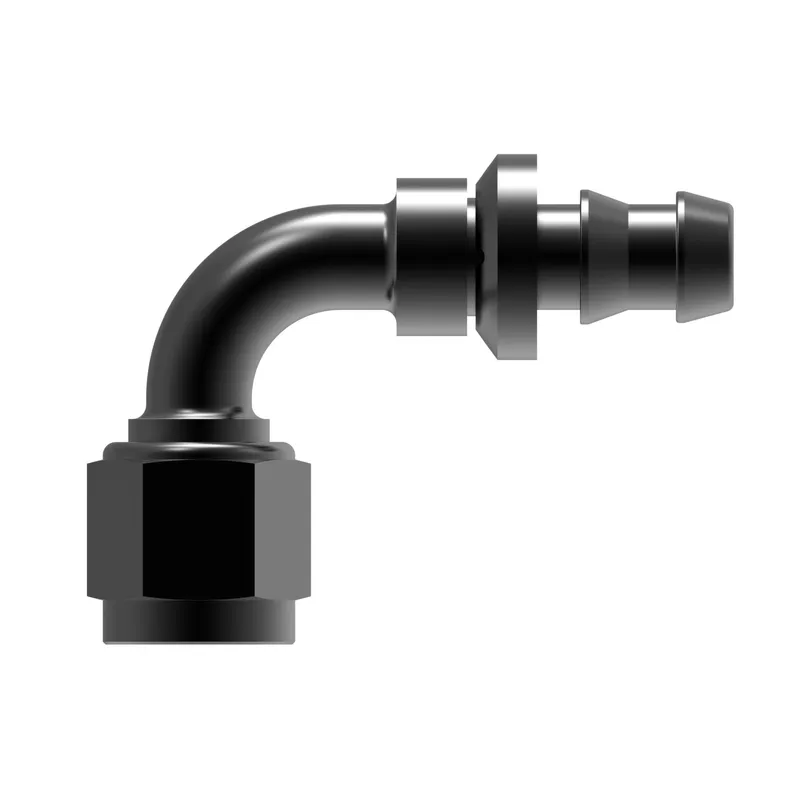

HOSE NIPPLE ASSY,SR/10,JIC-F/10,D,90D

MPN
FBL1534
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss FBL1534?

Danfoss HOSE NIPPLE ASSY,SR/10,JIC-F/10,D,90D, manufacturer part number FBL1534. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

EAN/UPC678146117762
A dimension IN2.980
A dimension MM75.700
Angle shape90 Degree
Construction StyleReusable
Drop dimension IN1.406
Drop dimension MM35.70
End type 1Female 37 degree swivel
Finish platingAnodized
Hex size 1 IN0.984
Hex size 1 MM25.000
Hose cut off factor IN1.539
Hose cut off factor MM39.100
Inside diameter IN0.480
Inside diameter MM12.200
Product height in2.270
Product height mm57.658
Product length in3.480
Product length mm88.392
Product materialAluminum
Product width in1.000
Product width mm25.400 mm
Thread sealantNo
Thread size 17/8-14 UNF

FBL1534: frequently asked questions

When can FBL1534 be shipped?

FBL1534 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up FBL1534 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for FBL1534 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for FBL1534, subject to availability and destination.
