Danfoss FBL1514

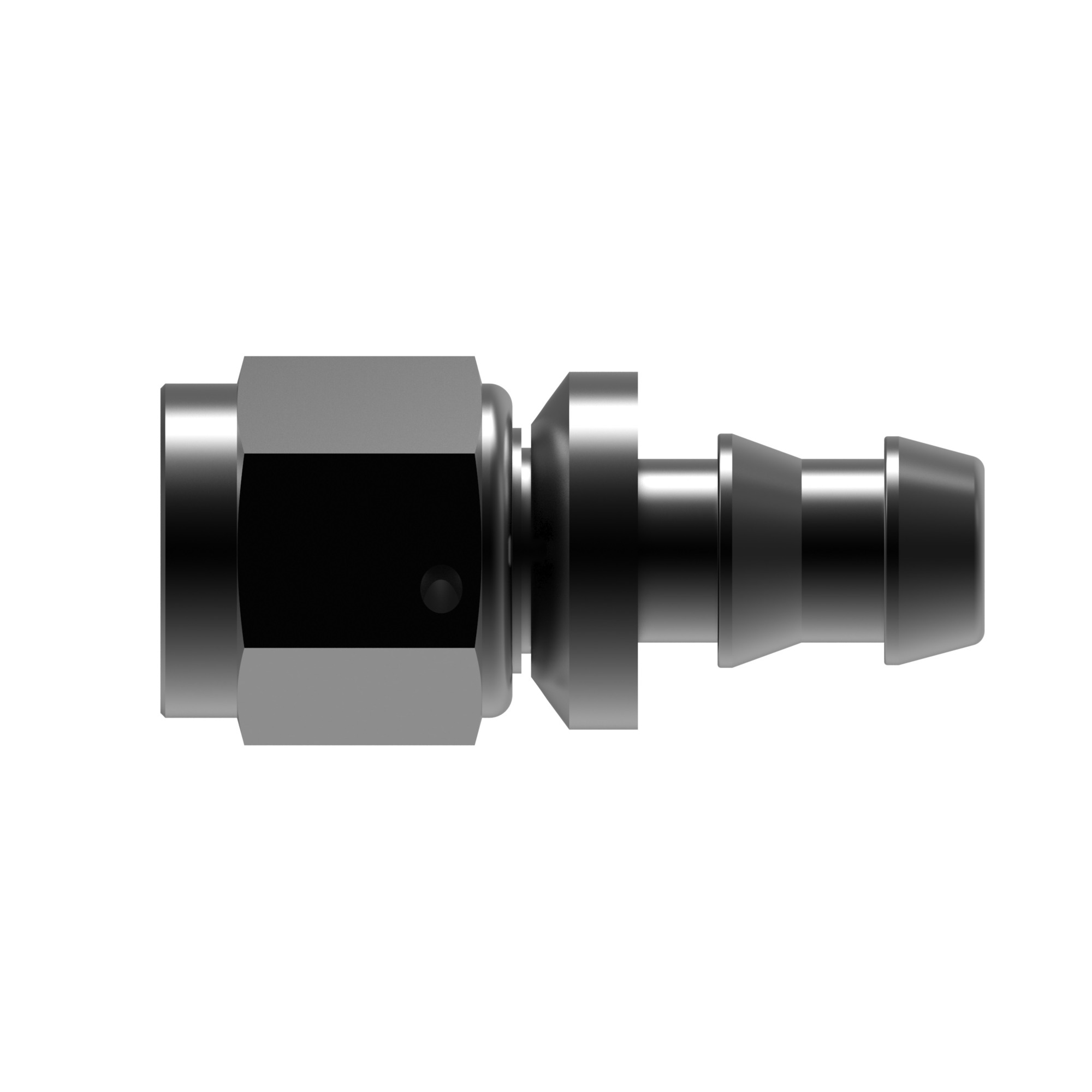

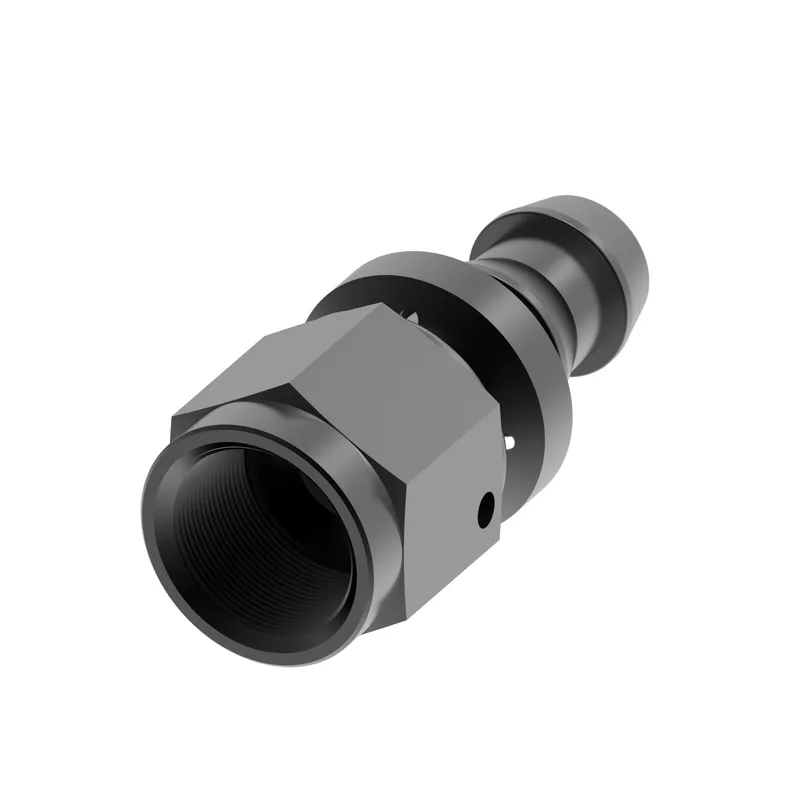

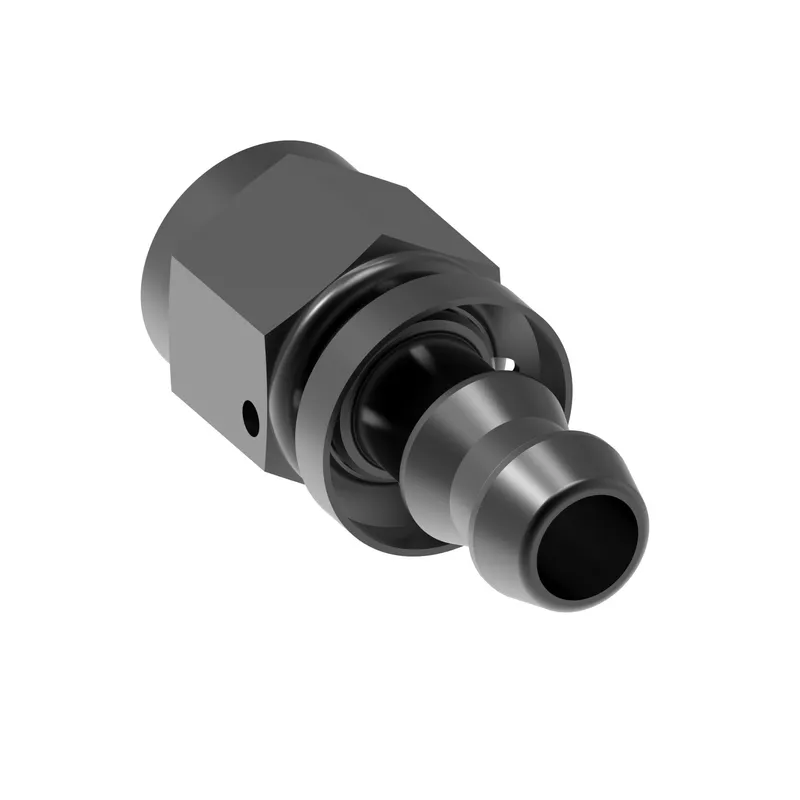

HOSE NIPPLE ASSY,SR/10,JIC-F/10,D,STR

MPN
FBL1514
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss FBL1514?

Danfoss HOSE NIPPLE ASSY,SR/10,JIC-F/10,D,STR, manufacturer part number FBL1514. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

EAN/UPC678146117687
A dimension IN2.610
A dimension MM66.300
Angle shapeStraight
Construction StyleCrimp
End size 1-10
End type 1Female 37 degree swivel
Finish platingAnodized
Hex size 1 IN0.984
Hex size 1 MM25.000
Hose cut off factor IN1.070
Hose cut off factor MM27.200
Inside diameter IN0.488
Inside diameter MM12.390
Product height in1.150
Product height mm29.210
Product length in2.610
Product length mm66.294
Product materialAluminum
Product width in1.000
Product width mm25.400 mm
Thread sealantNo
Thread size 17/8-14 UNF

FBL1514: frequently asked questions

When can FBL1514 be shipped?

FBL1514 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up FBL1514 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for FBL1514 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for FBL1514, subject to availability and destination.
