Danfoss EC212-08MT50

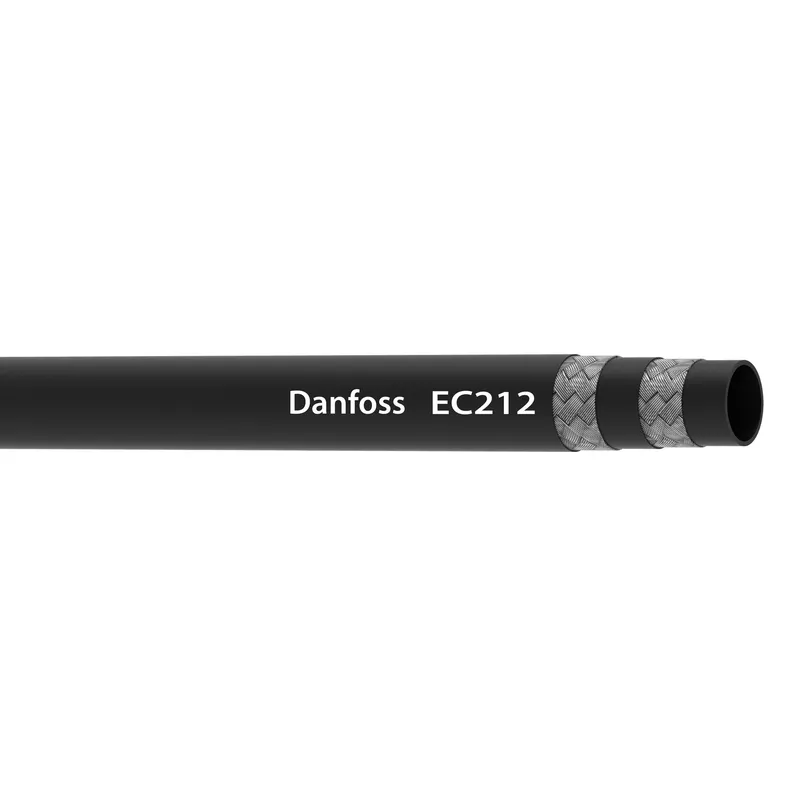

HOSE-DAN, EC212, -8, 50M, RL, RAIL

MPN: EC212-08MT50
Category: Railway hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss EC212-08MT50?

Danfoss HOSE-DAN, EC212, -8, 50M, RL, RAIL, manufacturer part number EC212-08MT50. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Abrasion resistance	Standard
Application	Lubrication systems
Bend radius min (inch)	3.540
Bend radius min (mm)	90.000
Brand	Danfoss
Burst pressure (bar)	1100
Burst pressure (psi)	16000
Certifications	EN45545
Color	Black
Compliances	EN45545
Conductivity	Non-conductive
Construction	2 Wire Braid
Cover material	Styrene Butadiene Rubber (SBR)
Fixed Length	50.000
Impulse cycle (cycles)	200000
Inside diameter (inch)	0.50
Inside diameter (mm)	12.70
Lay line style	Transfer tape
Length (in)	1968.00000
Length (mm)	50000.00000
Outside diameter (inch)	0.82
Outside diameter (mm)	20.90
Package form	Reel
Product height in	0.500
Product height mm	12.700
Product width in	0.500
Product width mm	12.700 mm
Qualified hose fittings	1A/Z Series
Reinforcement material	Brass plated steel wire
Series	EC212 Series
Size	-8
Tube material	Synthetic Rubber
Vacuum rating (inHg)	28
Vacuum rating (mmHg)	711.00
Working pressure max (bar)	275
Working pressure max (psi)	4000
Working temperature max (C)	125
Working temperature max (F)	257.0
Working temperature min (C)	-40
Working temperature min (F)	-40.0
