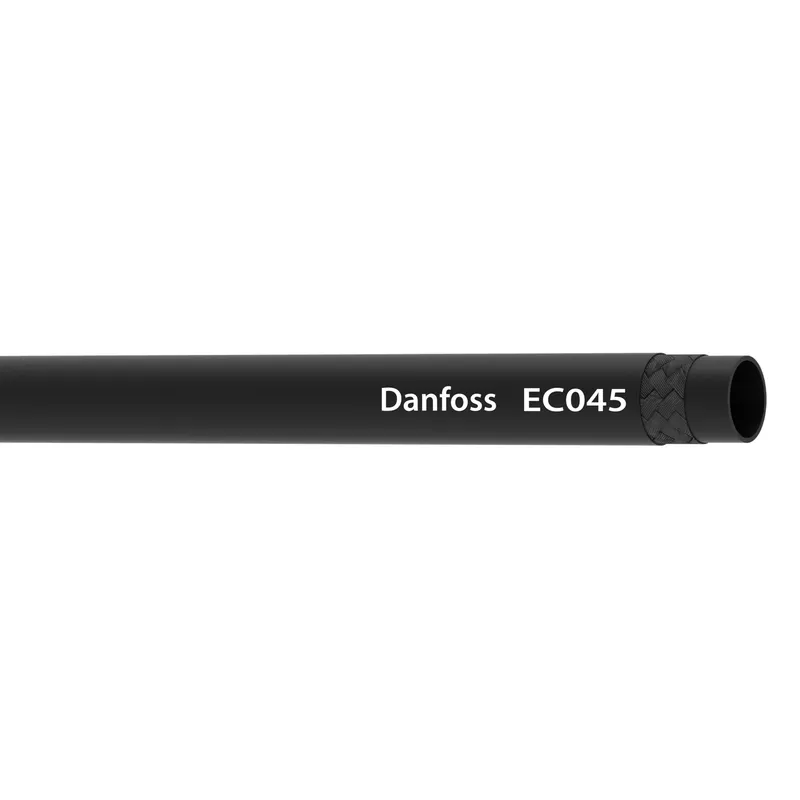

Danfoss EC045-04

HOSE-DAN, EC045, -4, RAIL

MPN: EC045-04
Category: Railway hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss EC045-04?

Danfoss HOSE-DAN, EC045, -4, RAIL, manufacturer part number EC045-04. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Abrasion resistance	Standard
Application	Lubrication systems
Bend radius min (inch)	1.570
Bend radius min (mm)	40.000
Brand	Danfoss
Burst pressure (bar)	300
Burst pressure (psi)	4400
Certifications	EN45545
Color	Black
Compliances	EN854 Type 2TE
Conductivity	Conductive
Construction	1 Ply braid
Cover material	Ethylene vinyl acetate (EVA)
Impulse cycle (cycles)	100000
Inside diameter (inch)	0.25
Inside diameter (mm)	6.40
Lay line style	Transfer tape
Outside diameter (inch)	0.53
Outside diameter (mm)	13.40
Package form	Bulk
Product height in	0.250
Product height mm	6.400
Product width in	0.250
Product width mm	6.400 mm
Proposition 65	Cancer and Reproductive Harm
Qualified hose fittings	Winner 2-Piece
Reinforcement material	Fabric
Series	EC045 Series
Size	-4
Tube material	Nitrile (NBR)
Working pressure max (bar)	75
Working pressure max (psi)	1100
Working temperature max (C)	125
Working temperature max (F)	257.0
Working temperature min (C)	-40
Working temperature min (F)	-40.0

EC045-04: frequently asked questions

When can EC045-04 be shipped?

EC045-04 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up EC045-04 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for EC045-04 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for EC045-04, subject to availability and destination.
