COUPLING,ST,M,1",B,-16BSP,NBR
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Danfoss Hansen® quick disconnect couplings |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can B8T36BS be shipped?
B8T36BS is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up B8T36BS in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for B8T36BS and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for B8T36BS, subject to availability and destination.

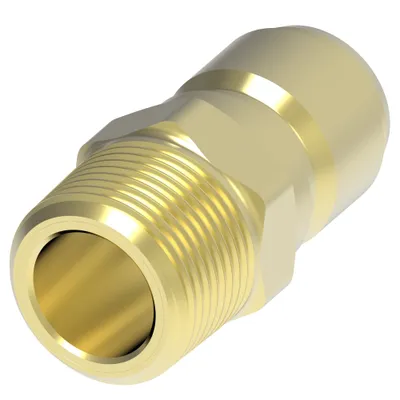

Danfoss COUPLING,ST,M,1",B,-16BSP,NBR, manufacturer part number B8T36BS. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| EAN/UPC | 678146158932 |
| Angle shape | Straight |
| Application | Chemical, Fluid transfer, Food and beverage, Injection moulding, Marine, Medical, Pressure washing, Steam cleaning |
| Body size | 1" |
| Burst pressure min bar | 359 |
| Burst pressure min psi | 5200 |
| Connection style | Manual connect |
| End size 1 | -16 |
| End size 2 | -16 |
| End Type 1 | Male push to connect |
| End Type 2 | Female BSPP swivel |
| Flow rate GPM | 140.00 |
| Flow rate LPM | 529.96 |
| Fluid compatibility | Versatile fluid |
| Hex size 1 IN | 1.560 |
| Hex size 1 MM | 39.624 |
| Item type | Male half |
| Latch type | Push/pull |
| Product length in | 2.230 |
| Product material | Brass |
| Safety locking mechanism | None |
| Seal material | Nitrile (NBR) |
| Thread size 1 | G 1 |
| Thread size 2 | G 1 |
| Valve type | Straight thru |
| Working pressure max psi | 1300 |
| Working pressure max BAR | 90.00 |
| Working temperature max C | 121 |
| Working temperature max F | 250 |
| Working temperature min C | -40 |
| Working temperature min F | -40 |
