Danfoss B8KP36NV

Cplng, HK Series Male

MPN: B8KP36NV
Category: Danfoss Hansen® quick disconnect couplings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss B8KP36NV?

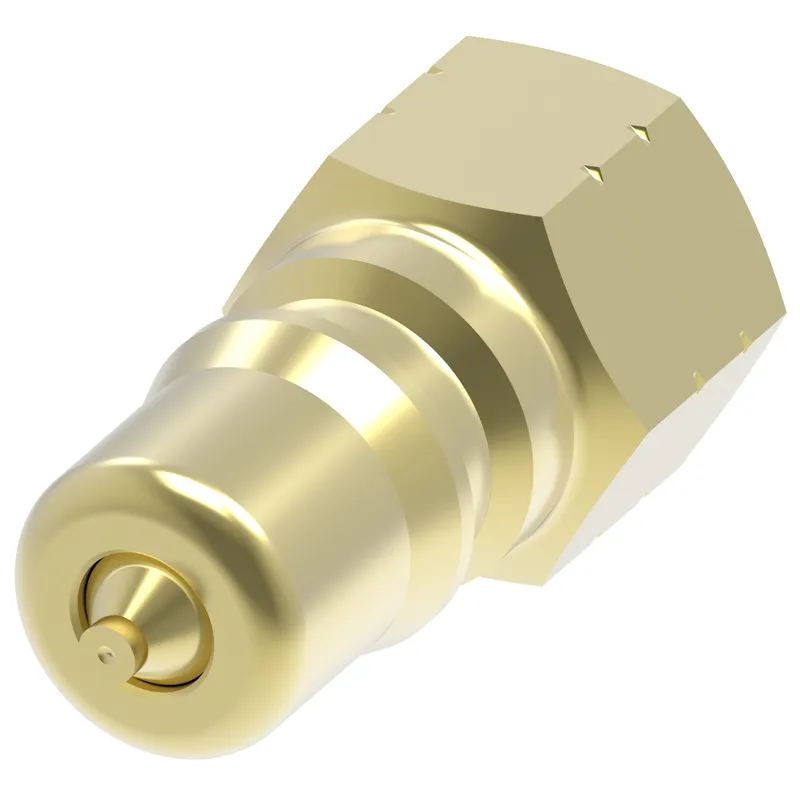

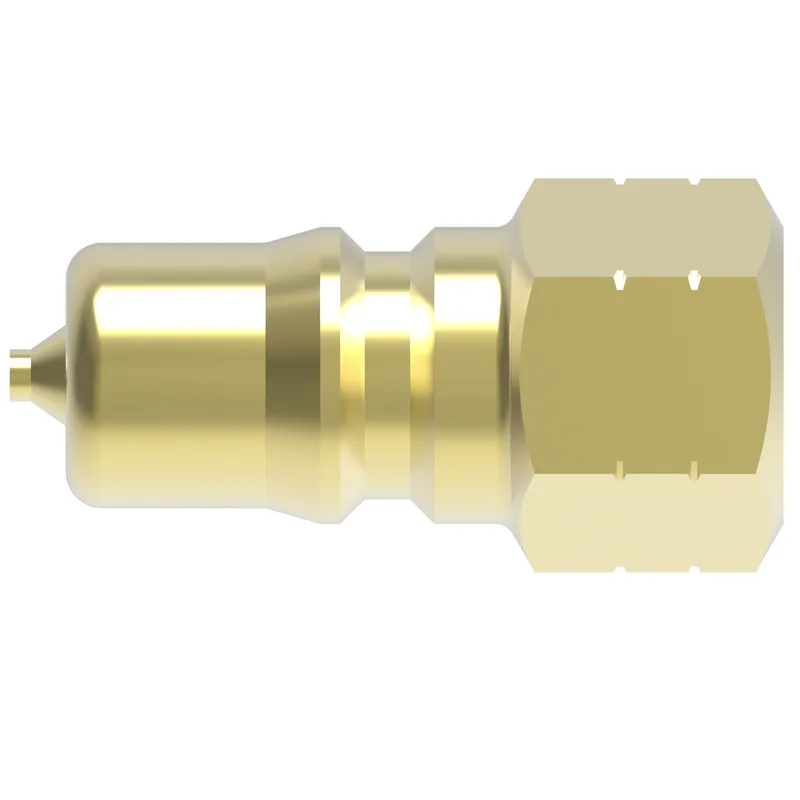

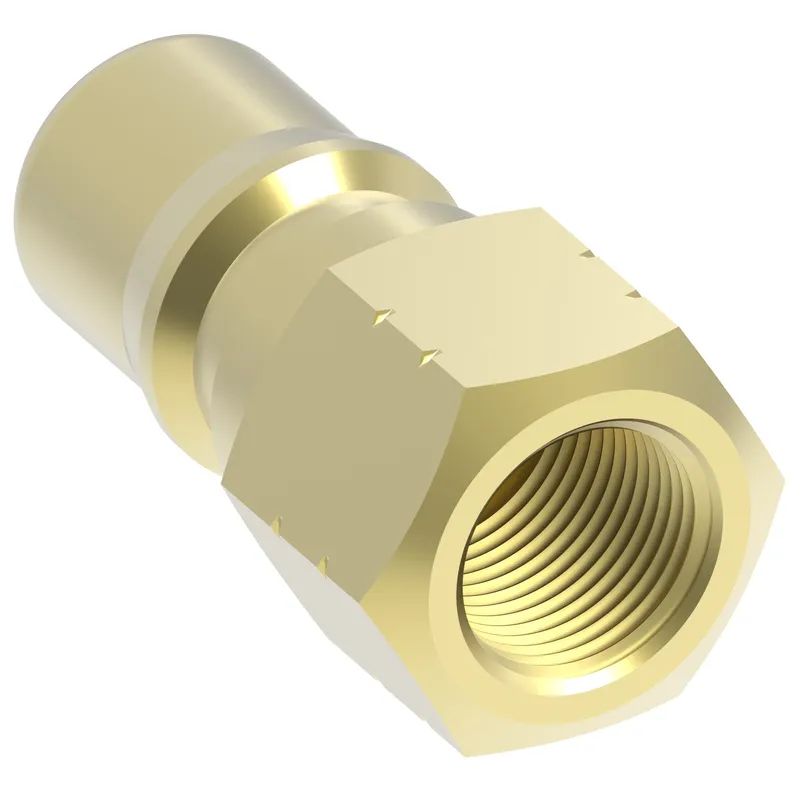

Danfoss Cplng, HK Series Male, manufacturer part number B8KP36NV. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146036841
Air inclusion max cc	18.00
Air inclusion max in3	1.10
Angle shape	Straight
Body size	1"
Brand	Danfoss
Connection style	Manual connect
End size 2	-16
End Type 1	Male push to connect
End Type 2	Female pipe (NPTF)
Flow rate GPM	50.00
Flow rate LPM	189.27
Fluid compatibility	Hydraulic fluid
Fluid loss cc	16.90000
Fluid loss in3	1.03100
Hex size 1 IN	1.630
Hex size 1 MM	41.402
Item type	Male half
Latch type	Push/pull
Product material	Brass
Safety locking mechanism	None
Seal material	Nitrile (NBR)
Sub brand	Hansen
Valve type	2 way
Working pressure max psi	1500
Working pressure max BAR	103.00
Working temperature max C	121
Working temperature max F	250
Working temperature min C	-40
Working temperature min F	-40
