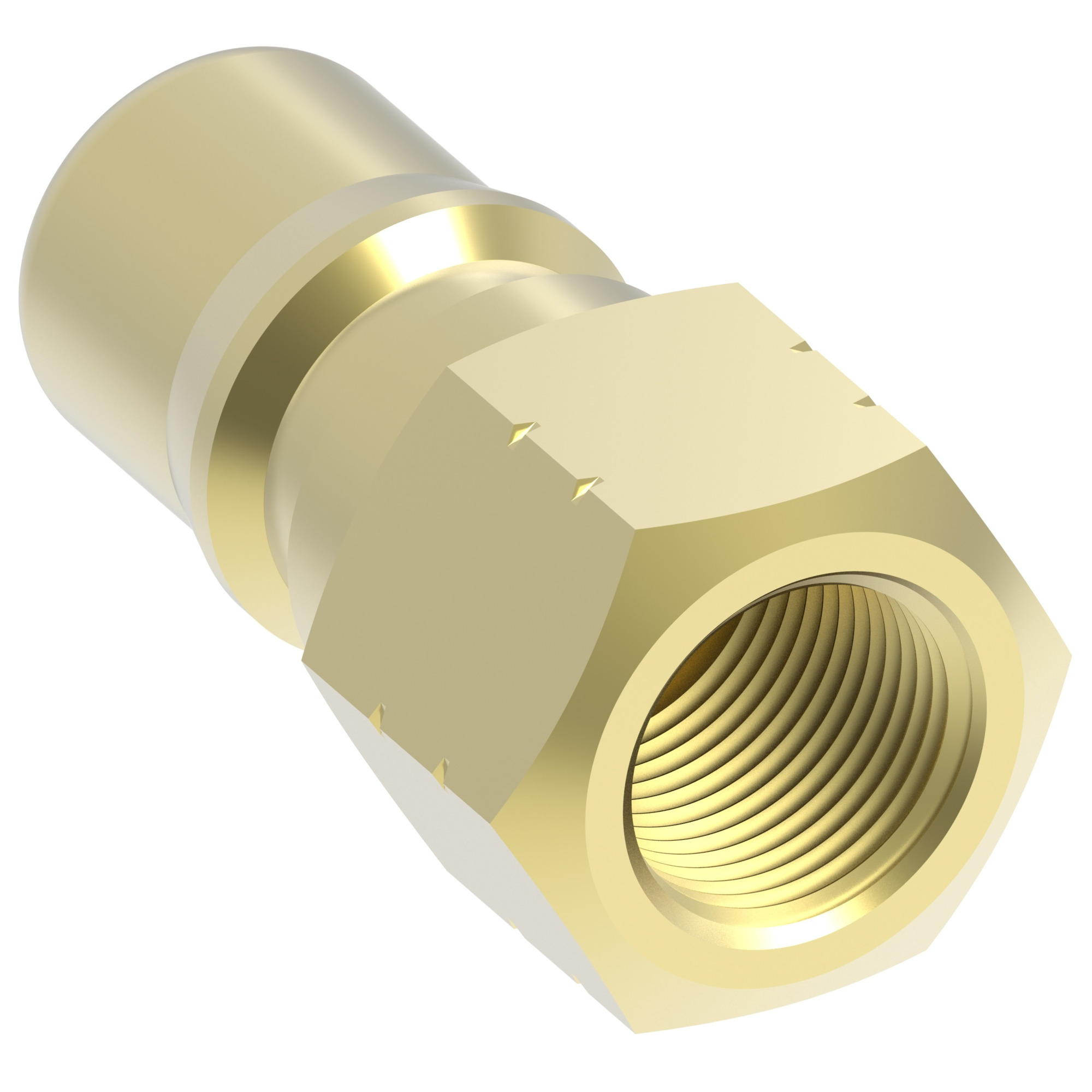

What is the Danfoss B6KP31BS143?

Danfoss COUPLING,HK,M,3/4,B,-12BSP,FKM, manufacturer part number B6KP31BS143. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146107497
Air inclusion max cc	11.50
Air inclusion max in3	0.70
Angle shape	Straight
Application	Agriculture, Chemical, Construction, Fluid transfer, Food and beverage, General industry, Hvac, Hydraulics, Nuclear, Oil and gas, Transportation, Trucks
Body size	3/4
Certifications	ISO 7241-1 Series B
Connection style	Manual connect
End size 1	-12
End size 2	-12
End Type 1	Male push to connect
End Type 2	Female BSPP swivel
Flow rate GPM	26.00
Flow rate LPM	98.42
Fluid compatibility	Hydraulic fluid
Fluid loss cc	9.30000
Fluid loss in3	0.56800
Hex size 1 IN	1.310
Hex size 1 MM	33.274
Item type	Male half
Latch type	Push/pull
Product length in	2.360
Product material	Brass
Safety locking mechanism	None
Seal material	Fluorocarbon (FKM)
Thread size 1	G 3/4
Thread size 2	G 3/4
Valve type	2 way
Working pressure max psi	2000
Working pressure max BAR	138.00
Working temperature max C	204
Working temperature max F	400
Working temperature min C	-26
Working temperature min F	-15
