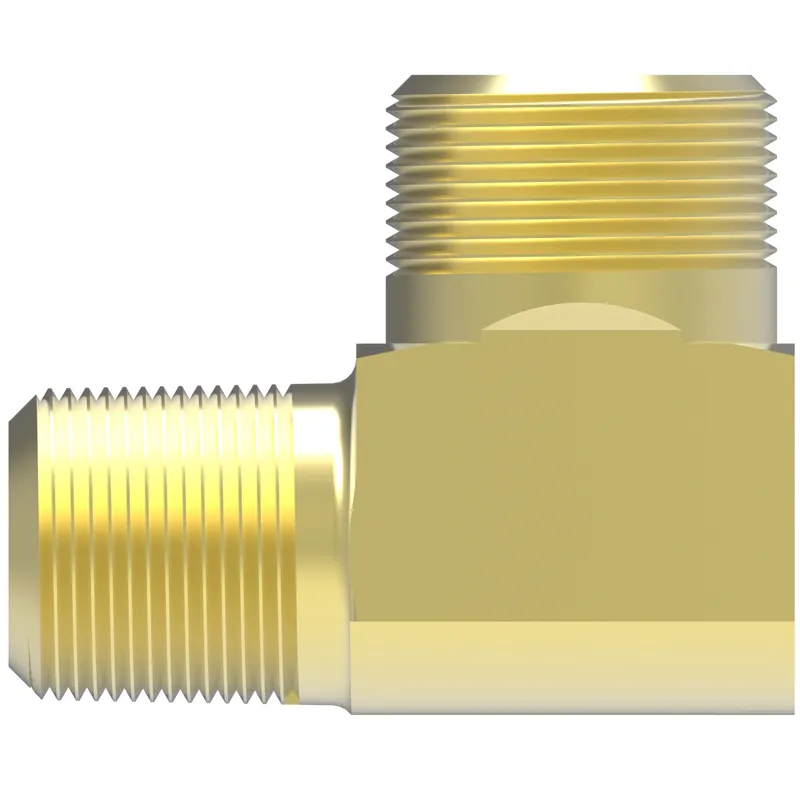

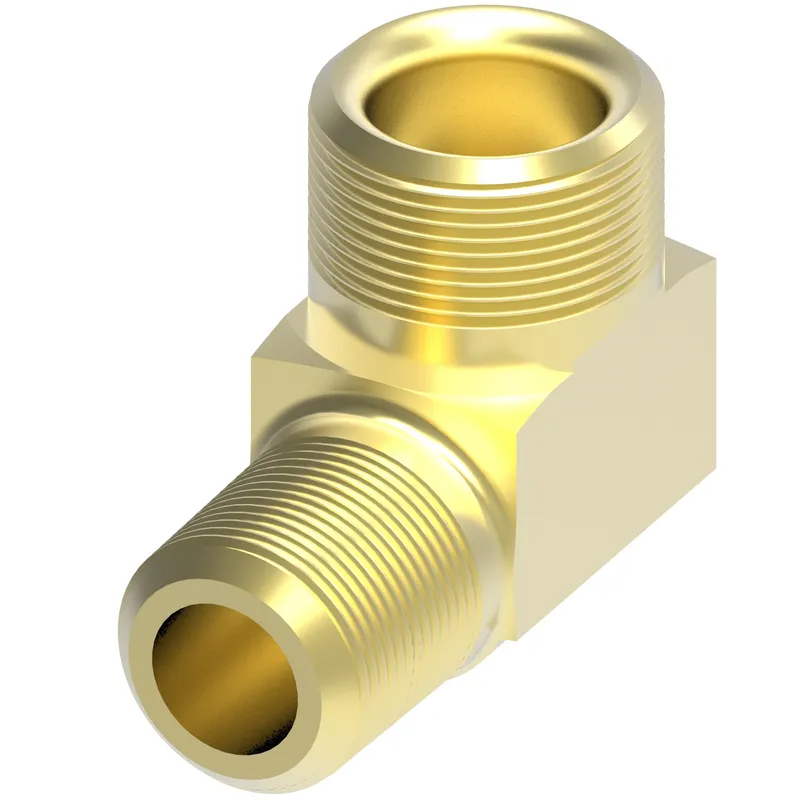

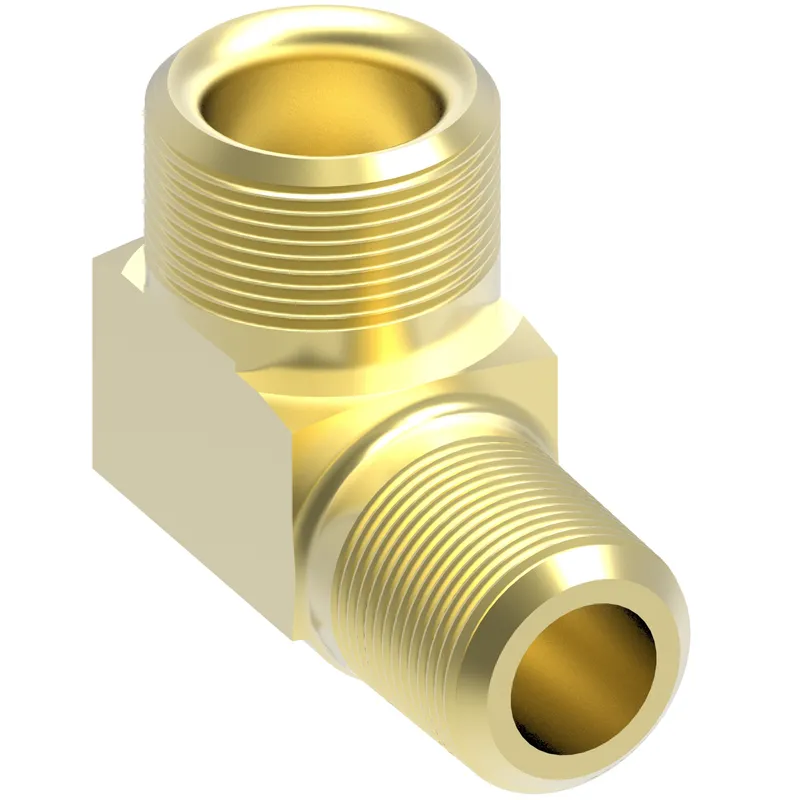

Danfoss B69X2

ADAPTER,BrassCOMPRESSION 102-40002 1/8 M

MPN: B69X2
Category: Adapters and swivel joints

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss B69X2?

Danfoss ADAPTER,BrassCOMPRESSION 102-40002 1/8 M, manufacturer part number B69X2. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	725975001592
Angle shape	90 Degree
Brand	Danfoss
Drop dimension IN	0.660
Drop dimension MM	16.80
End Type 1	Male pipe (NPTF)
Hex size 1 IN	0.440
Hex size 1 MM	11.200
Product material	Brass
Thread sealant	No
Thread size 2	5/16-24 UNF
Tube outside diameter 1 IN	0.220
Tube outside diameter 1 MM	5.6
Tube outside diameter 2 IN	0.140
Tube outside diameter 2 MM	3.6
Working temp max C	121
Working temp max F	250
Working temp min C	-54
Working temp min F	-65

B69X2: frequently asked questions

When can B69X2 be shipped?

B69X2 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up B69X2 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for B69X2 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for B69X2, subject to availability and destination.
