Danfoss B4KP26236

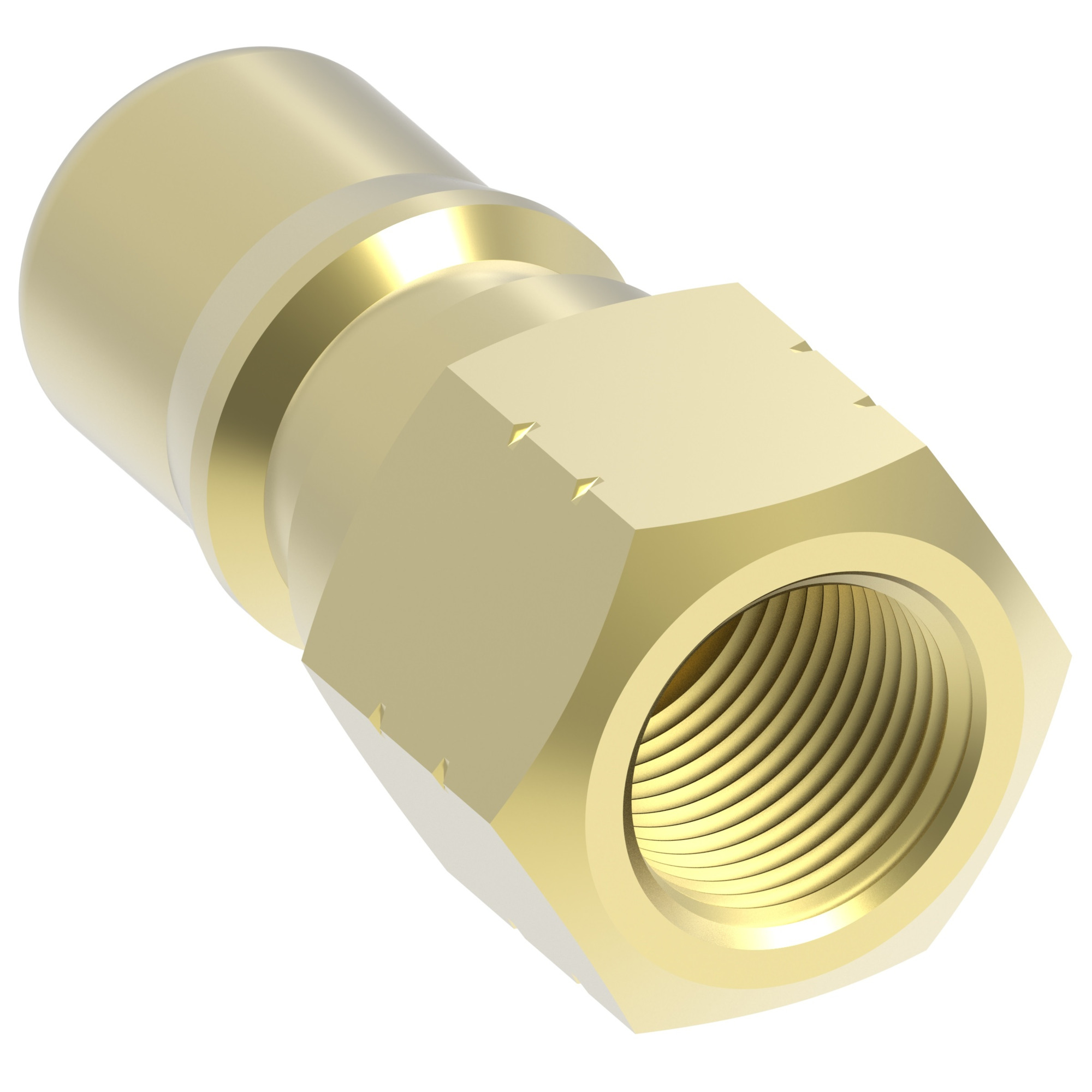

Cplng, HK SERIES SOCKET, BRASS

MPN: B4KP26236
Category: Danfoss Hansen® quick disconnect couplings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss B4KP26236?

Danfoss Cplng, HK SERIES SOCKET, BRASS, manufacturer part number B4KP26236. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146161802
Air inclusion max cc	3.60
Air inclusion max in3	0.22
Angle shape	Straight
Body size	1/2
Brand	Danfoss
Connection style	Manual connect
End size 2	-8
End Type 1	Male push to connect
End Type 2	Female pipe (NPTF)
Flow rate GPM	12.00
Flow rate LPM	45.43
Fluid compatibility	Hydraulic fluid
Fluid loss cc	3.50000
Fluid loss in3	0.21400
Hex size 1 IN	1.130
Hex size 1 MM	28.702
Item type	Male half
Latch type	Push/pull
Product material	Brass
Safety locking mechanism	None
Seal material	Ethylene propylene (EPDM)
Sub brand	Hansen
Valve type	2 way
Working pressure max psi	2250
Working pressure max BAR	155.00
Working temperature max C	149
Working temperature max F	300
Working temperature min C	-54
Working temperature min F	-65
