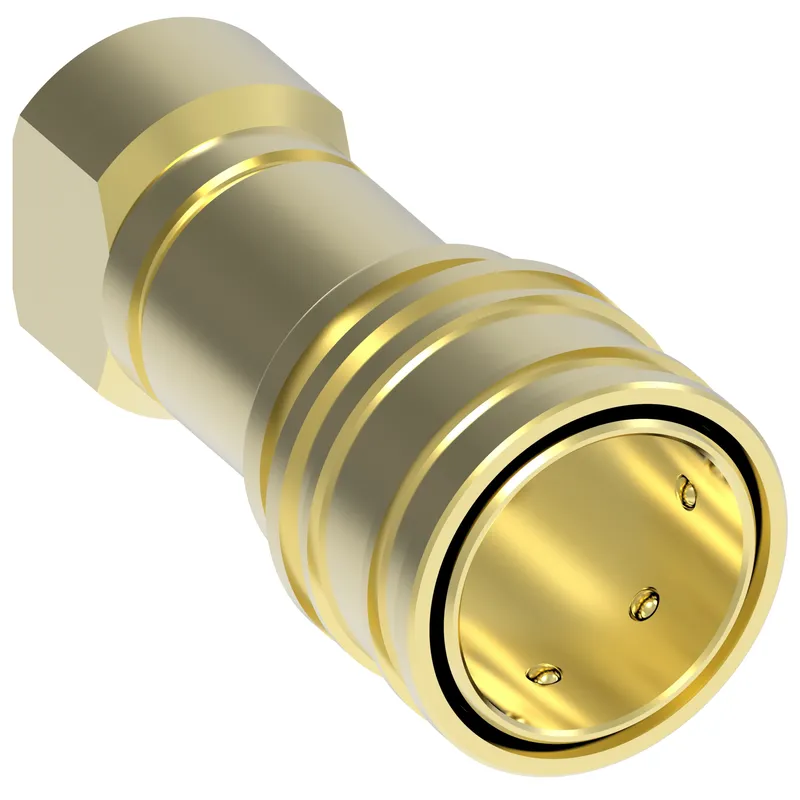

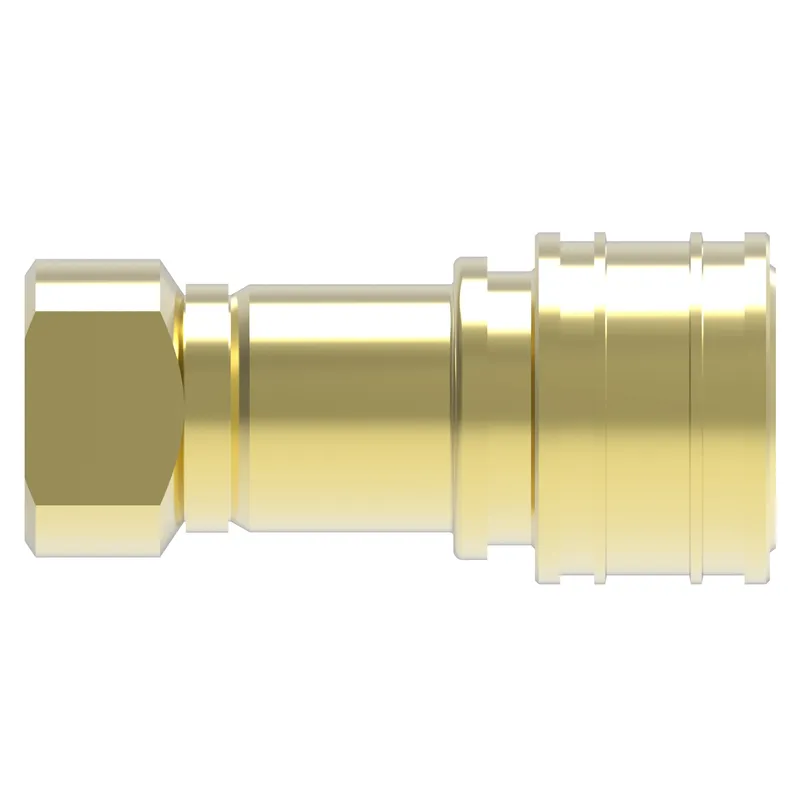

Danfoss B4HP26115

Cplng, HK SERIES SOCKET, BRASS

MPN: B4HP26115
Category: Danfoss Hansen® quick disconnect couplings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss B4HP26115?

Danfoss Cplng, HK SERIES SOCKET, BRASS, manufacturer part number B4HP26115. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146161659
Air inclusion max cc	3.60
Air inclusion max in3	0.22
Angle shape	Straight
Body size	1/2
Brand	Danfoss
Connection style	Manual connect
End size 1	-8
Flow rate GPM	12.00
Flow rate LPM	45.43
Fluid loss cc	3.50000
Fluid loss in3	0.21400
Hex size 1 IN	1.130
Hex size 1 MM	28.702
Item type	Female half
Product material	Brass
Seal material	Polytetrafluoroethylene (PTFE)
Sub brand	Hansen
Valve type	2 way
Working pressure max psi	2250
Working pressure max BAR	155.00
Working temperature max C	232
Working temperature max F	450
Working temperature min C	-157
Working temperature min F	-250
