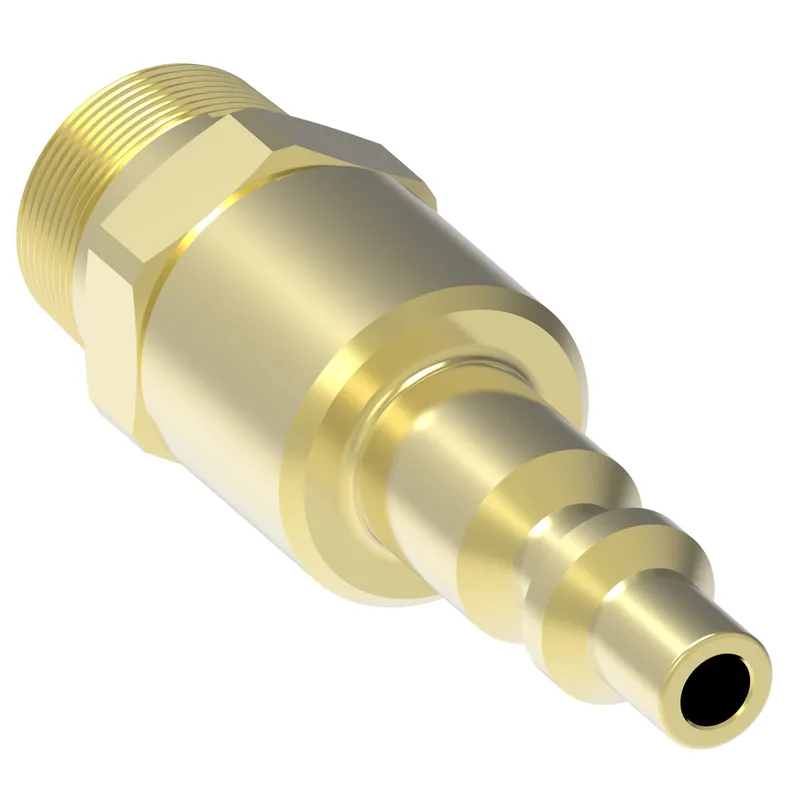

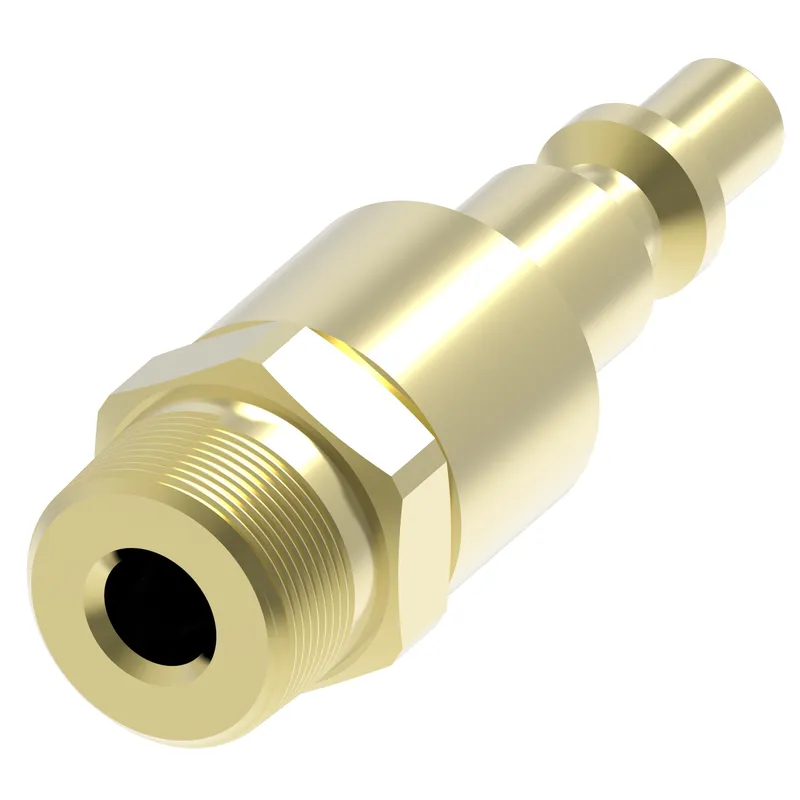

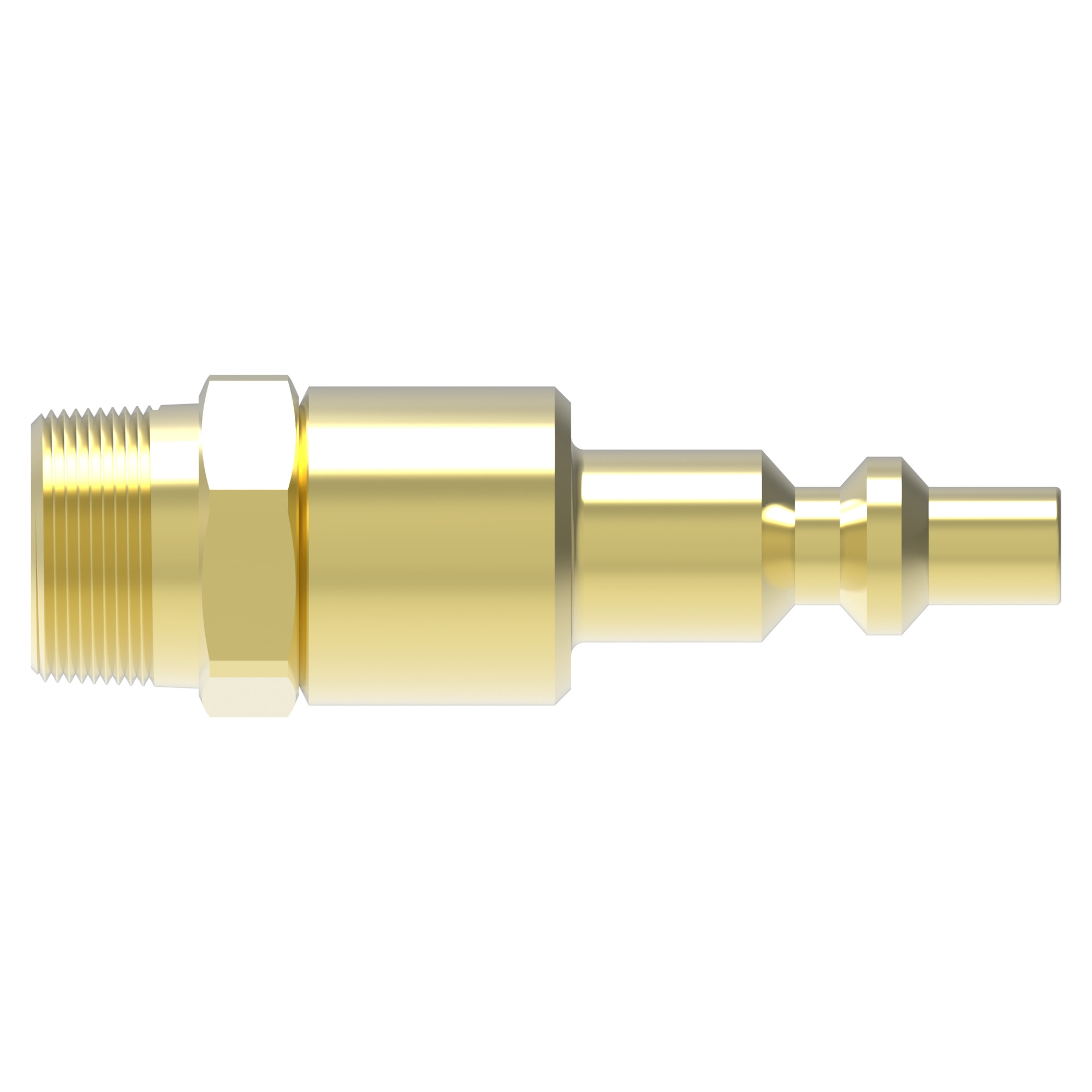

Danfoss B42

Cplng, 4000 SERIES MALE, BRASS

MPN: B42
Category: Danfoss Hansen® quick disconnect couplings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss B42?

Danfoss Cplng, 4000 SERIES MALE, BRASS, manufacturer part number B42. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146107145
Angle shape	Straight
Body size	3/8
Brand	Danfoss
Burst pressure min bar	276
Burst pressure min psi	4000
Connection style	Manual connect
End size 2	-6
End Type 1	Male push to connect
End Type 2	Male pipe (NPTF)
Finish plating	Nickel
Flow rate GPM	336.00
Flow rate LPM	1271.90
Fluid compatibility	Compressed air, Gases and liquids
Hex size 1 IN	0.690
Hex size 1 MM	17.526
Item type	Male half
Latch type	Push/pull
Product length in	1.880
Product material	Brass
Safety locking mechanism	Sleeve lock
Seal material	Nitrile (NBR)
Sub brand	Hansen
Valve type	2 way
Working pressure max psi	1000
Working pressure max BAR	69.00
Working temperature max C	121
Working temperature max F	250
Working temperature min C	-40
Working temperature min F	-40

B42: frequently asked questions

When can B42 be shipped?

B42 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up B42 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for B42 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for B42, subject to availability and destination.
