Danfoss B2K16143

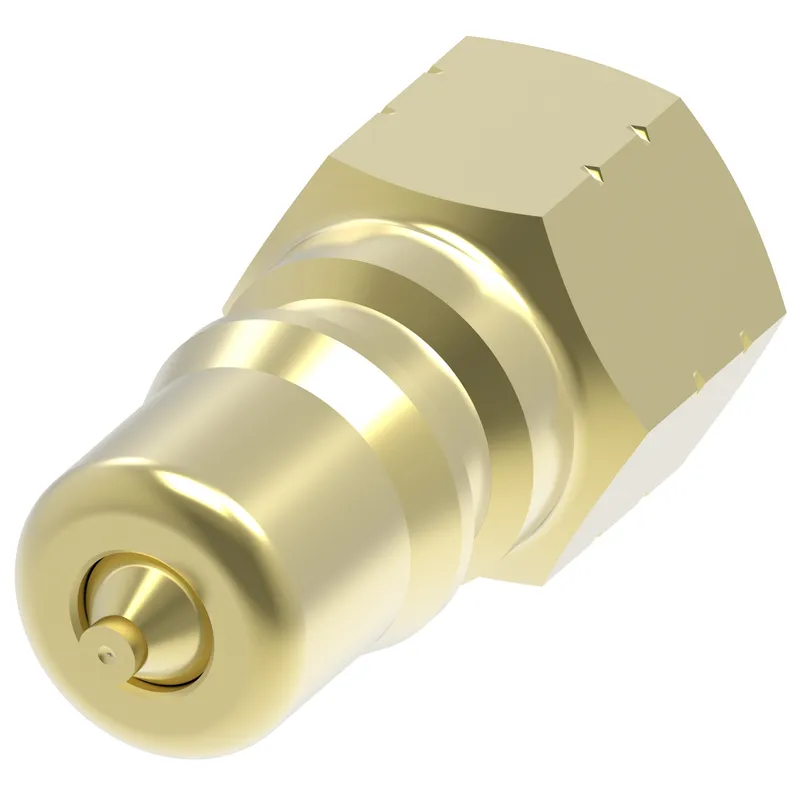

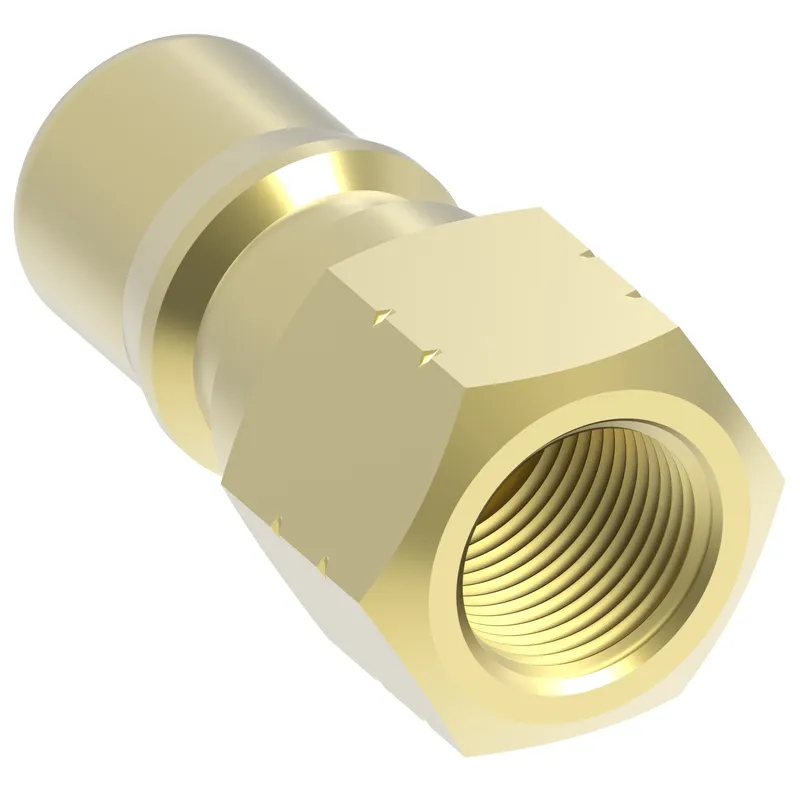

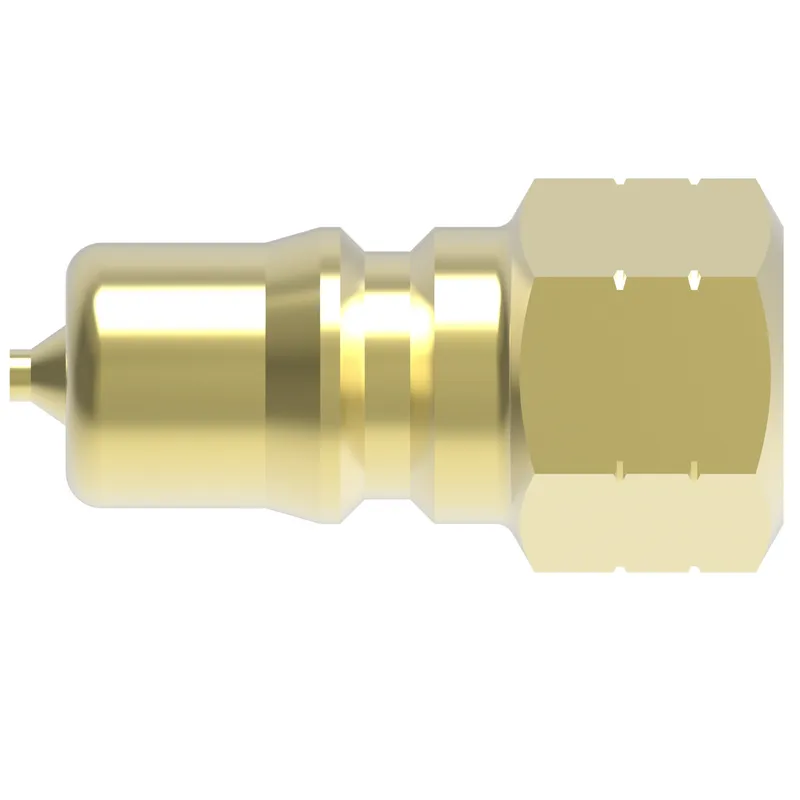

COUPLING,HK,M,1/4,BRA,-4NPTF,FKM

MPN: B2K16143
Category: Danfoss Hansen® quick disconnect couplings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss B2K16143?

Danfoss COUPLING,HK,M,1/4,BRA,-4NPTF,FKM, manufacturer part number B2K16143. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146036742
Air inclusion max cc	1.20
Air inclusion max in3	0.07
Angle shape	Straight
Application	Agriculture, Chemical, Construction, Fluid transfer, Food and beverage, General industry, Hvac, Hydraulics, Nuclear, Oil and gas, Transportation, Trucks
Body size	1/4
Certifications	ISO 7241-1 Series B
Connection style	Manual connect
End size 1	-4
End size 2	-4
End Type 1	Male push to connect
End Type 2	Female pipe (NPTF)
Flow rate GPM	3.00
Flow rate LPM	11.36
Fluid compatibility	Hydraulic fluid
Fluid loss cc	0.90000
Fluid loss in3	0.05500
Hex size 1 IN	0.750
Hex size 1 MM	19.050
Item type	Male half
Latch type	Push/pull
Product length in	1.520
Product material	Brass
Safety locking mechanism	None
Seal material	Fluorocarbon (FKM)
Thread size 1	1/4-18 NPTF
Valve type	2 way
Working pressure max psi	2700
Working pressure max BAR	186.00
Working temperature max C	204
Working temperature max F	400
Working temperature min C	-26
Working temperature min F	-15

B2K16143: frequently asked questions

When can B2K16143 be shipped?

B2K16143 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up B2K16143 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for B2K16143 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for B2K16143, subject to availability and destination.
