Danfoss B2H16VAA

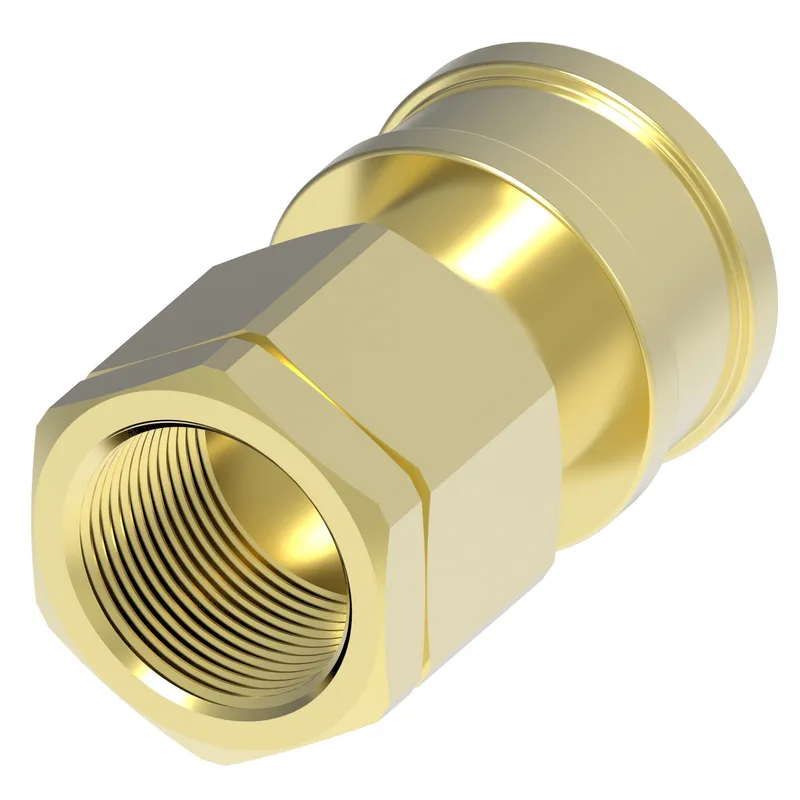

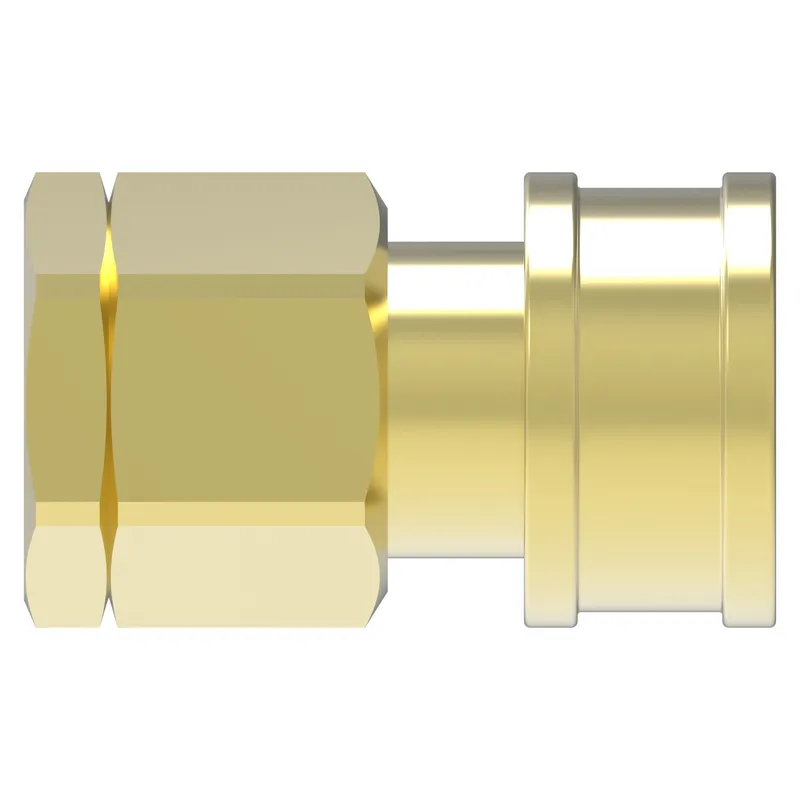

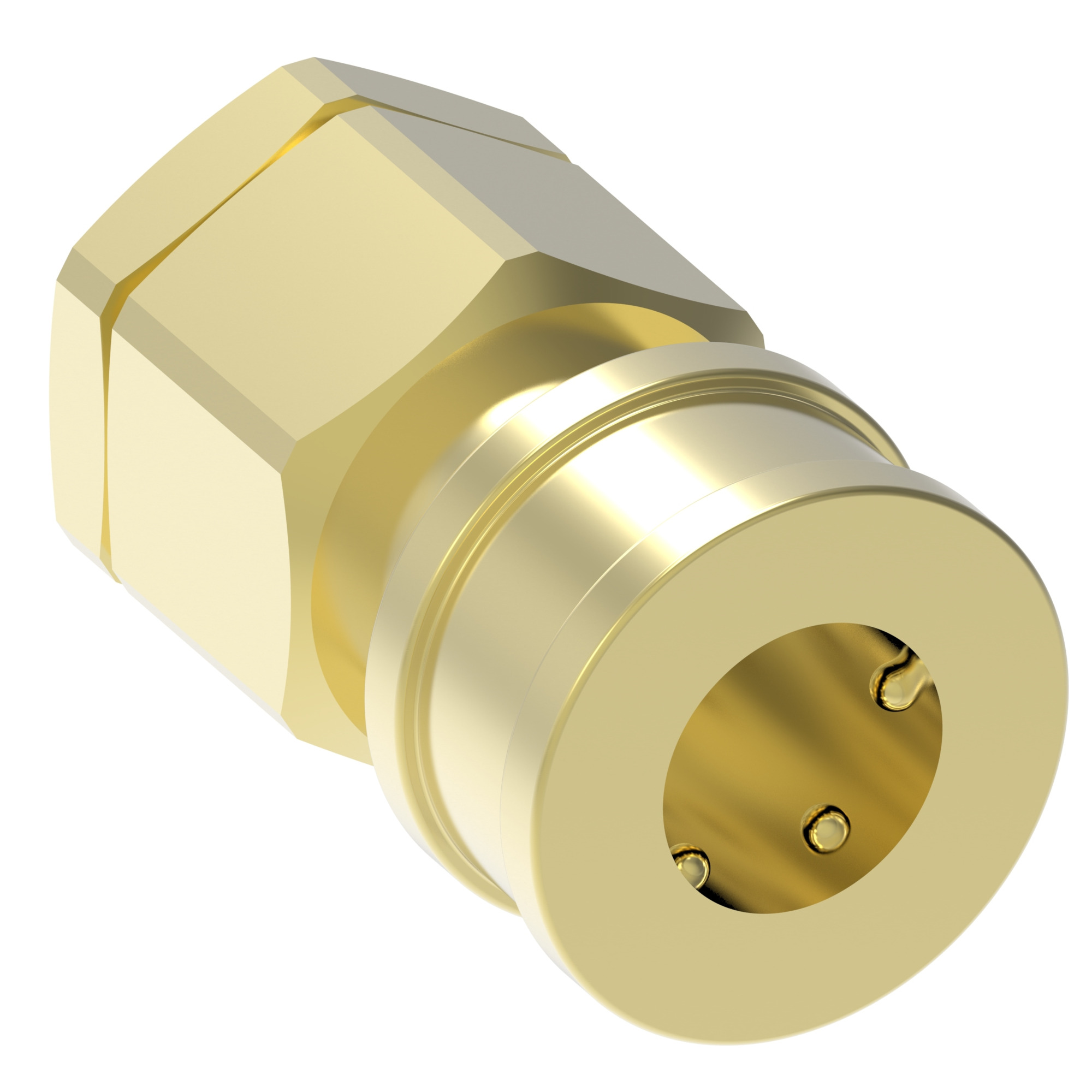

COUPLING,HK,F,1/4,BRA,-4NPTF,NBR,VA ACT

MPN: B2H16VAA
Category: Danfoss Hansen® quick disconnect couplings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss B2H16VAA?

Danfoss COUPLING,HK,F,1/4,BRA,-4NPTF,NBR,VA ACT, manufacturer part number B2H16VAA. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146161314
Air inclusion max cc	1.20
Air inclusion max in3	0.07
Angle shape	Straight
Application	Agriculture, Chemical, Construction, Fluid transfer, Food and beverage, General industry, Hvac, Hydraulics, Nuclear, Oil and gas, Transportation, Trucks
Body size	1/4
Certifications	ISO 7241-1 Series B
Connection style	Manual connect
End size 1	-4
End size 2	-4
End Type 1	Female Push to Connect
End Type 2	Female pipe (NPTF)
Flow rate GPM	3.00
Flow rate LPM	11.36
Fluid compatibility	Hydraulic fluid
Fluid loss cc	0.90000
Fluid loss in3	0.05500
Hex size 1 IN	0.750
Hex size 1 MM	19.050
Item type	Female half
Latch type	Push/pull
Product length in	2.260
Product material	Brass
Safety locking mechanism	None
Seal material	Nitrile (NBR)
Thread size 1	1/4-18 NPTF
Valve type	1 way
Working pressure max psi	2700
Working pressure max BAR	186.00
Working temperature max C	121
Working temperature max F	250
Working temperature min C	-40
Working temperature min F	-40
