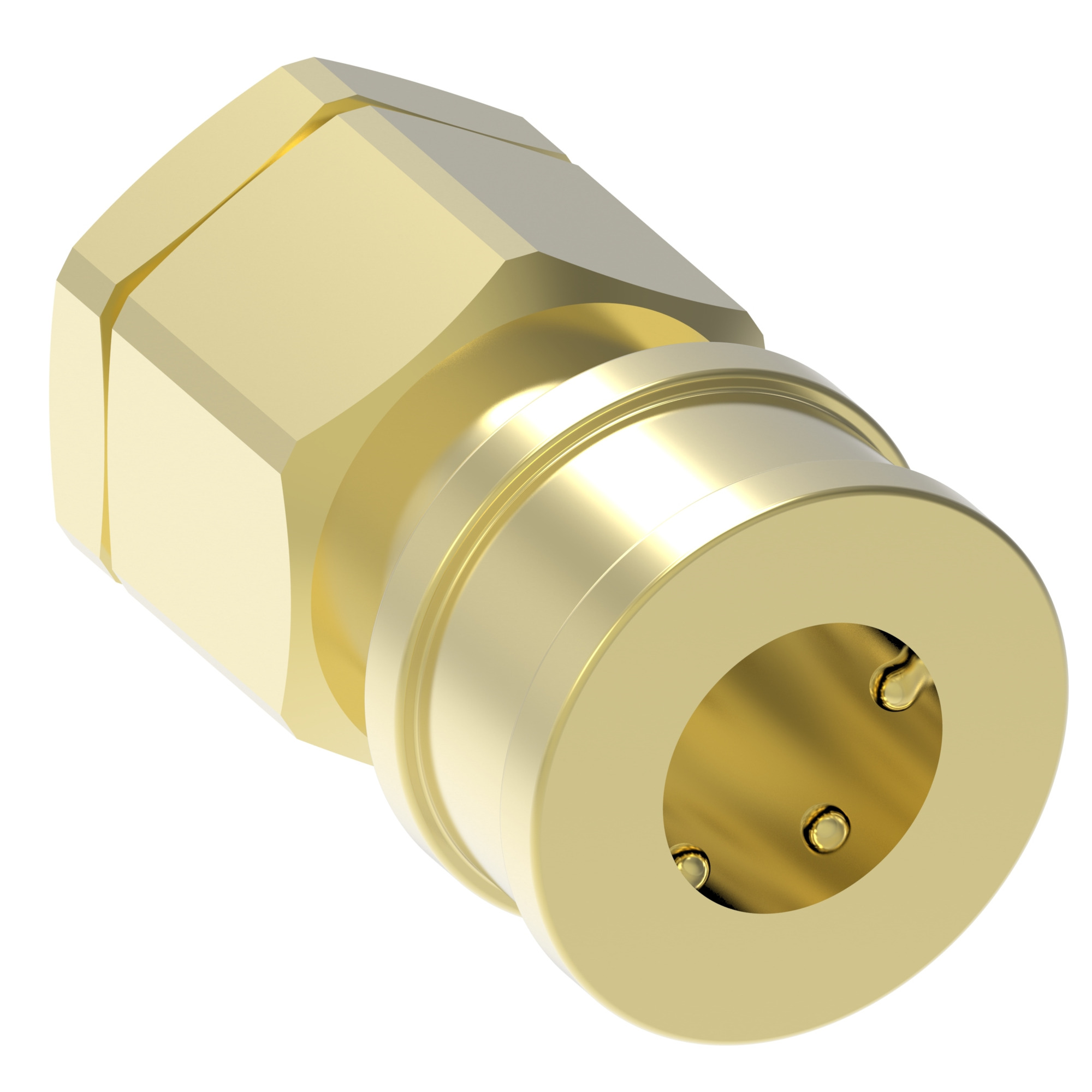

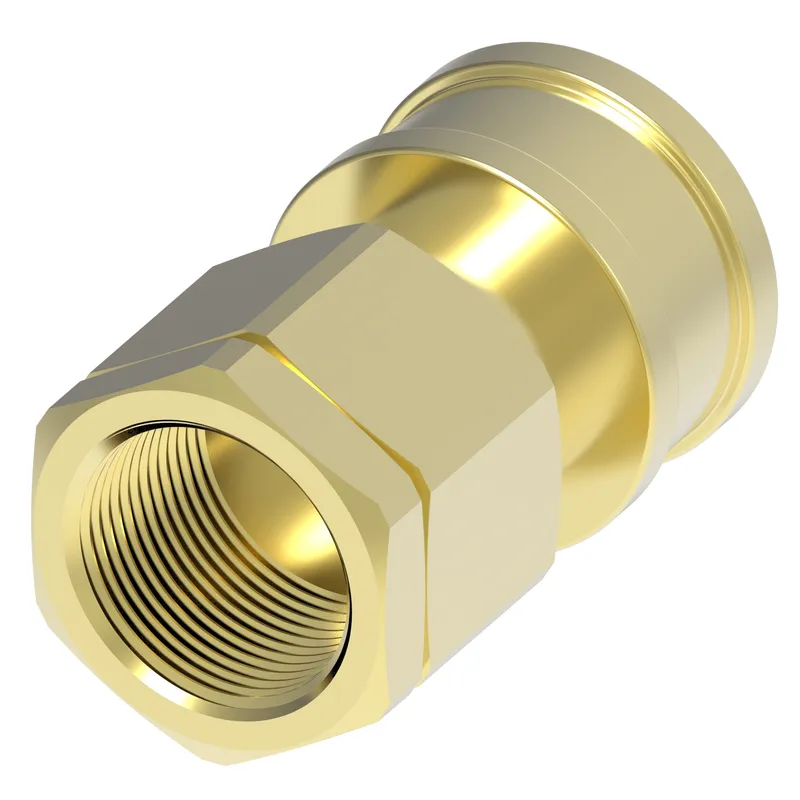

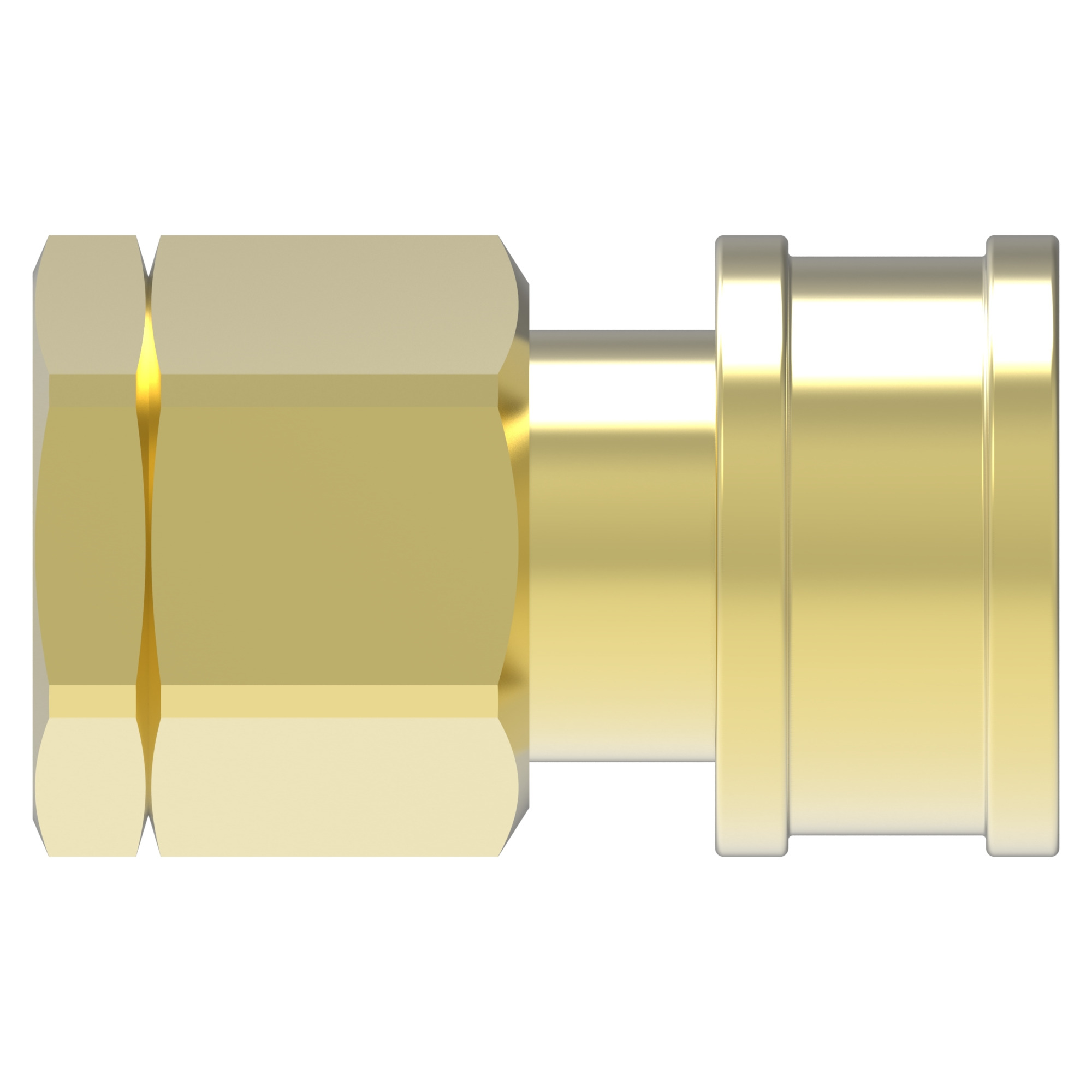

Danfoss B2H16146

COUPLING,HK,F,1/4,BRA,-4NPTF,NBR

MPN: B2H16146
Category: Danfoss Hansen® quick disconnect couplings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss B2H16146?

Danfoss COUPLING,HK,F,1/4,BRA,-4NPTF,NBR, manufacturer part number B2H16146. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146106643
Air inclusion max cc	1.20
Angle shape	Straight
Application	Agriculture, Chemical, Construction, Fluid transfer, Food and beverage, General industry, Hvac, Hydraulics, Nuclear, Oil and gas, Transportation, Trucks
Body size	1/4
Brand	Danfoss
Certifications	ISO 7241-1 Series B
Connection style	Manual connect
End size 1	-4
End Type 1	Female pipe (NPTF)
Flow rate GPM	3.00
Fluid compatibility	Hydraulic service
Fluid loss cc	0.90000
Hex size 1 IN	0.750
Item type	Female half
Latch type	Push/pull
Product length in	2.260
Product material	Brass
Safety locking mechanism	None
Seal material	Nitrile (NBR)
Sub brand	Hansen
Thread size 1	1/4-18 NPTF
Valve type	2 way
Working pressure max psi	2700
Working temperature max F	250
Working temperature min F	-40
